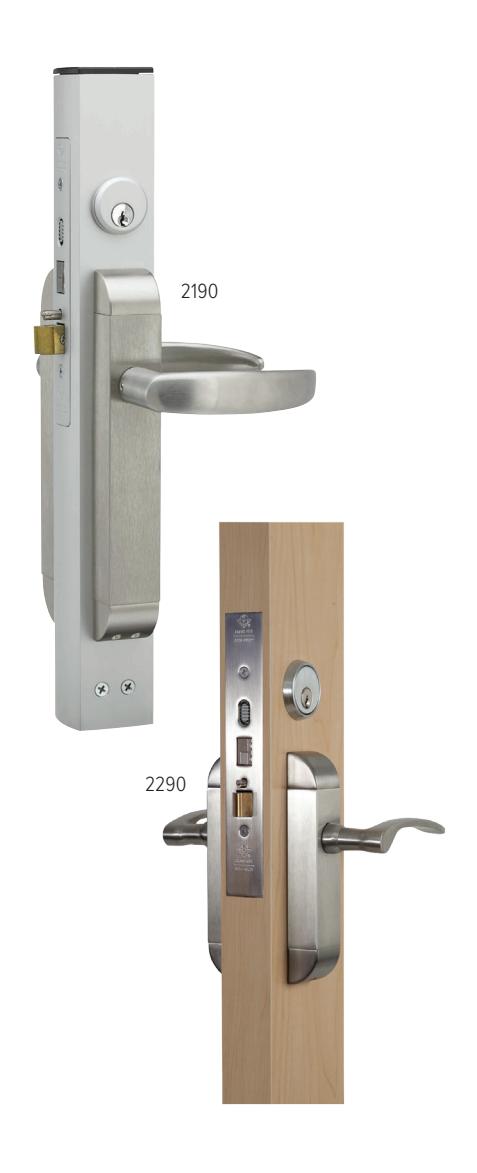

Dual Force® 2190, 2290
Series Interconnected Deadbolt/Deadlatch
The 2190 Series Interconnected Deadbolt/Deadlatch provides access control and security for narrow stile aluminum (2190), hollow metal and wood doors (2290). Deadlatch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting.
Function
The Dual Force combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt and deadlatch from either side. The exterior lever retracts the latch only. With the deadbolt projected, a simple turn of the inside lever retracts both the latch and deadbolt simultaneously, providing single-motion, panic-proof exiting. The Dual Force is available with electrified trim set for easy integration into an existing access control system. Standard and electrified trim sets are for out-swinging doors only; low profile trim set designed for in-swinging doors only.
Operation
Key or thumbturn projects or retracts deadbolt or deadlatch. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, available separately. Lock accepts cylinder from either or both sides.
Inside lever retracts both deadbolt and deadlatch when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch. Sliding holdback button on faceplate down will holdback latch and sliding up will release. The 2190 Series Interconnected Deadbolt/Deadlatch are designed to operate with the uniquely designed strike plate that comes standard in the package from the factory.
Features
Cylinder Backset
1-1/8" [28.6 mm] or 1-1/2" [38.1 mm] only.
Bolt
Latchbolt: 5/8" [15.9 mm] throw of solid brass. Easily reversible using only a screwdriver. Deadbolt: 1" [25.4mm] throw of stainless steel.
Auxiliary Deadlatch Pin
Stainless steel. Deadlocks latchbolt to prevent "loiding" or case-knife entry.

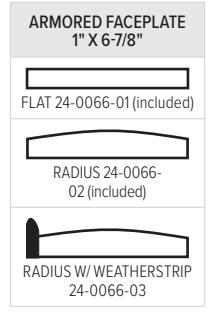

Faceplate
Includes faceplate system that adapts to flat, radius, or beveled door edge.
2190: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Radius with weatherseal faceplate available separately.
2290: Measures 1-1/4" x 8" [31.8 mm x 203.2 mm].
Strike
The Dual Force 2190, 2290 Interconnected Deadbolt/Deadlatch will not operate without its specially designed strike, included standard in package.
2190: Standard strike furnished is the 2101-01 Strike for flat jamb where door closes flush or nearly flush. The 2101 Strike covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch Strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
2290: Standard strike furnished is the 2206 (ASA) Strike for flat jamb where door closes flush or nearly flush.
Inter Connection
Field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch. Consult local authority having jurisdiction (AHJ) for guidance in code compliance. 1-3/4" [44.5 mm] minimum door thickness required.
• 2190 retrofits to existing MS1850S Deadlock or 4500 and 4900 Deadlatch of the same backset.
Standard Package
Individually boxed with trim as specified, strike and machine screws for mounting. Cylinder available separately.
Shipping Weight
9 lbs [4.08 kg].
Electrical
Electrified Trim Options
Electrified trim set is designed for easy integration into an existing access control system. Dual-voltage 12/24 VDC rated for continuous duty operation. Energizing the trim set allows the exterior lever to be turned to retract the latch only.
The electrified option is not available for low profile trim (trim option 3). Dual Force 2190/2290 Electrification Kit EK-2190 available separately for field-installation into the exterior standard trim set.
Options
- Specify trim option, lever style, finish, and strike.
- Thick Door Kits (2190-TDKXX) available separately. Specify door thickness.
- Request to Exit REX-4600 switch available separately for small format low profile trim set.
- Available in choice of US3 (605) Bright brass, US4 (606) Satin brass, 10B powder coat to match dark bronze, US32 (629) Bright stainless, or US32D (630) Satin stainless.
Options & Accessories
| OPTION | DESCRIPTION | SHORT |
|---|---|
| Standard Series 01 | Standard lever, curved |
| Standard Series 02 | Standard lever, round |
| Standard Series 03 | Standard lever, square |
| Aventura Series ME | Studio Collection designer lever |
| Aventura Series MG | Studio Collection designer lever |
| Aventura Series MI | Studio Collection designer lever |
| Aventura Series MW | Studio Collection designer lever |
| Centro Series MD | Studio Collection designer lever |
| Centro Series MJ | Studio Collection designer lever |
| Odeon Series MN | Studio Collection designer lever |
| Odeon Series MV | Studio Collection designer lever |
Dual Force® 2190 Series
Refer to the product Installation Instructions.

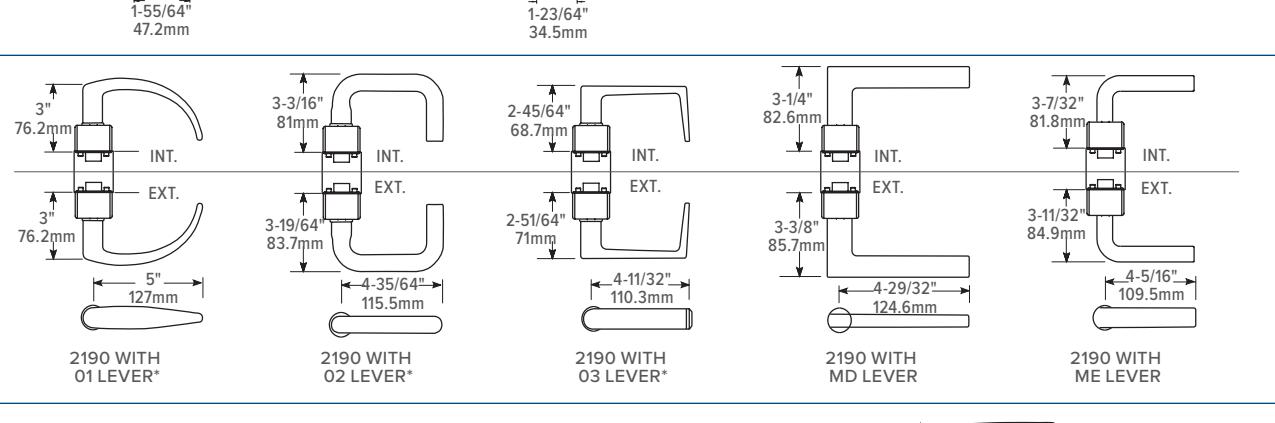

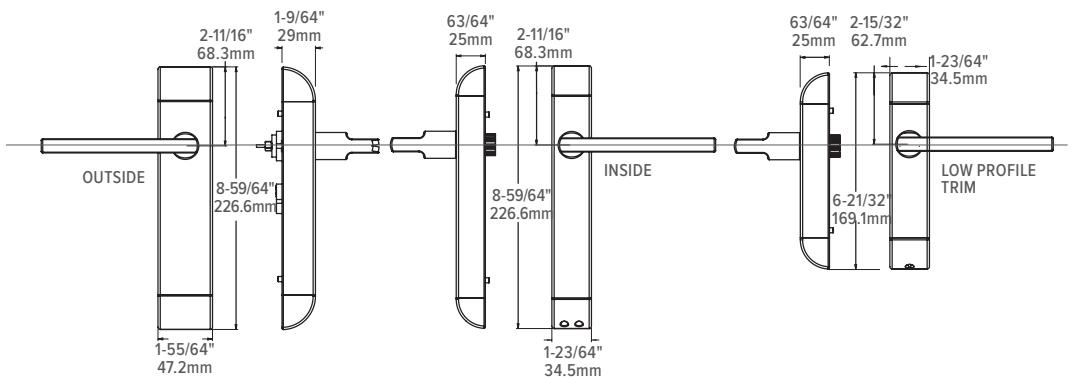

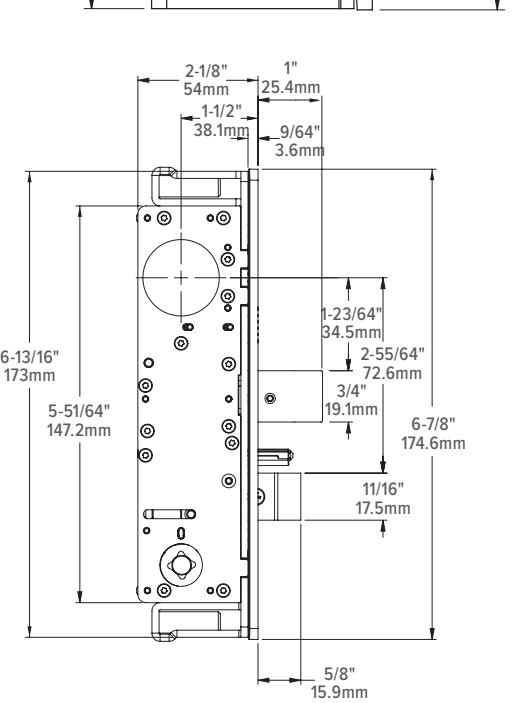

2190 Dimensions
All measurements are approximate and are provided for informational purposes only.
| BACKSET | "A" |
|---|---|
| 1-1/8" | 1-25/32" |
| 28.6mm | 45.2mm |
| 1-1/2" | 2-1/4" |
| 38.1mm | 57.2mm |
CYLINDER CL

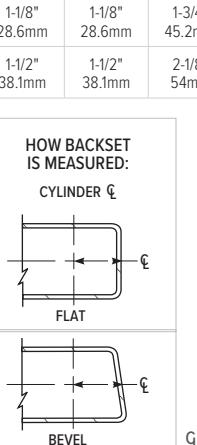

HOW BACKSET IS MEASURED:
CL

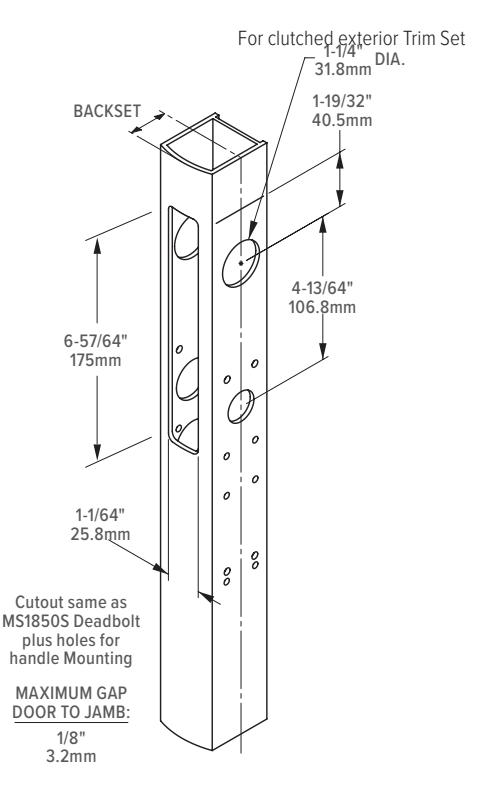

Stile Preparation
CL CYLINDER 15/64" 6mm 5-3/8" 136.5mm 4-41/64" 117.9mm FLAT RADIUS BEVEL CL CL
2101 Strike (covers and previous cutout for MS® Deadbolt) — Retrofits 4901 and 4501 strike preparations.
1-9/64" 29mm
37/64" 14.7mm

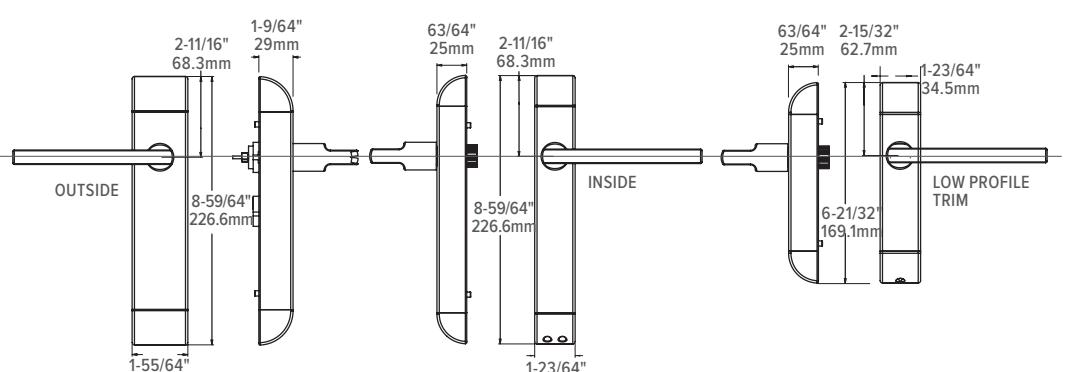

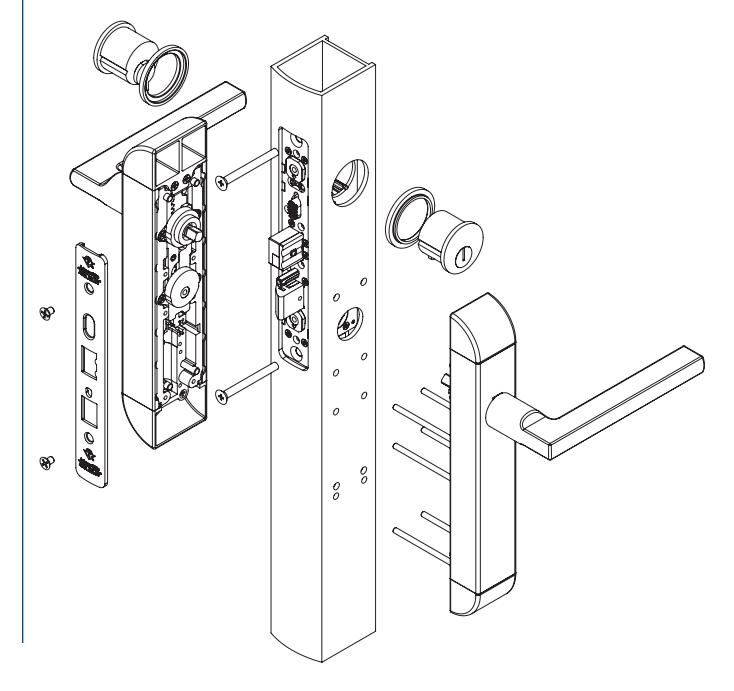

Jamb Preparations Latch/Lock, Cylinder & Level Installation
Handles in the Designer Series do not have this same feature. Please
verify with local code requirements to ensure compliance.
DEADLOCKS

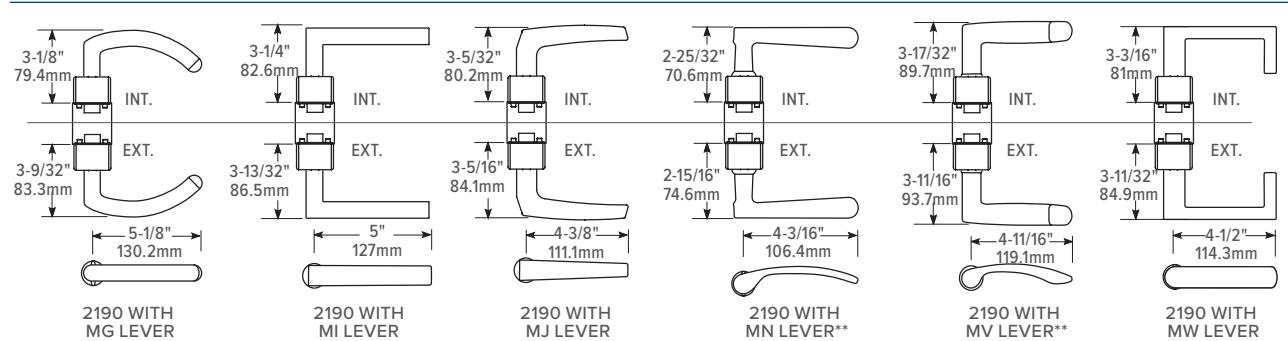

2190 Dimensions
** Handed
How to Order & Related Products
2190 Interconnected Deadbolt/Deadlatch: Specify quantity and the following information. Order related products separately.
| MODEL | BACKSET | STRIKE | FACEPLATE FINISH | TRIM | HANDLE DESIGNATION |
TRIM AND HANDLE
FINISH |
|||
|---|---|---|---|---|---|---|---|---|---|
| 2190 | -3 | 1 | 1 | -1 | 01 | 32D | |||
| 3 1-1/8" | 0 None | 1 Clear Anodized 628 | 0 None | 00 No Handle | 03 Bright Brass (US3) | ||||
| 4 1-1/2" | 1 Standard Flat |
2 Dark Bronze
Anodized 313 |
1 With Trim Set | STANDARD SERIES: | 04 Satin Brass (US4) | ||||
| 2 Radius Strike | 3 Black Anodized 335 | 2 With Electrified Trim Set | 01 Curve 02 Round 03 Square | 10B to match Dark Bronze | |||||
| 3 Low Profile Trim | DESIGNER SERIES: | 32 Bright Stainless (US32) | |||||||
| MD | MG | MJ | MV | 32D Satin Stainless (US32D) | |||||
| ME (Handed) | MI | MN | MW | ||||||
RELATED PRODUCTS
When purchasing this product, please consider the following related products, available separately:
| CYLINDERS | ACCESSORIES | ELECTRIFICATION |
|---|---|---|
|
Standard 1" length, 1-5/32" diameter
mortise cylinder with MS® cam such as 4036 Mortise Cylinder, 4066 Thumbturn; MS4043 Cylinder Guard |
2190-TDK Thick Door Kit for standard
exterior trim set, TDK-4600 Thick Door Kit for low profile trim set. |
EK-2190 Electrification Kit.
2190 may be ordered with electrified trim (trim option 2). |
All measurements are approximate and are provided for informational purposes only Refer to the product installation instructions.

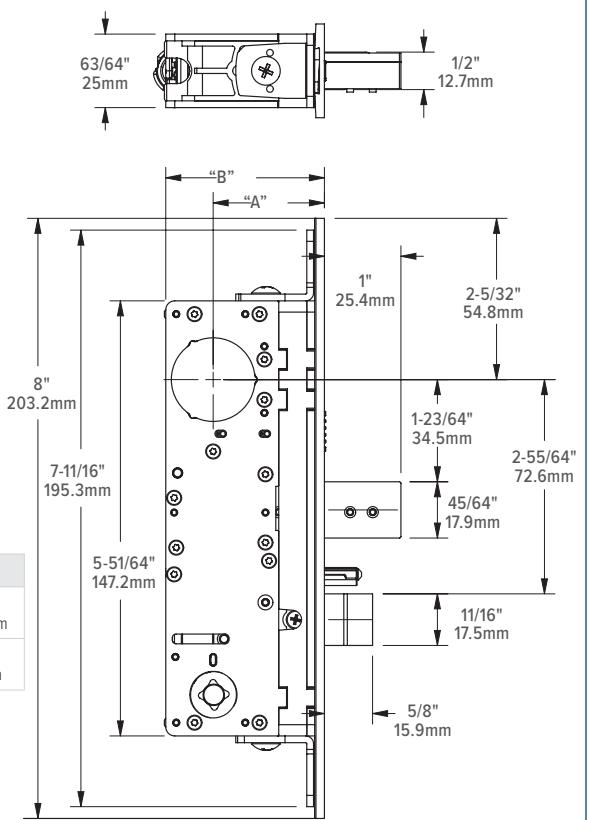

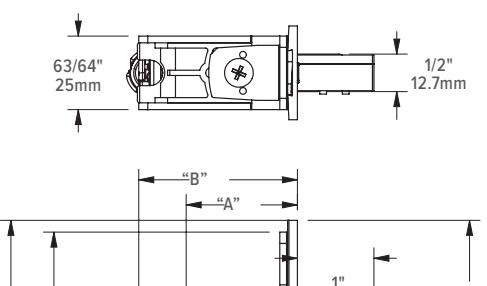

2290 Dimensions
FLAT (included)
| FPK-UU66-UX-XXX | ||||||
|---|---|---|---|---|---|---|
| BACKSET | "A" | "B" | ||||
|
1-1/8"
28.6mm |
1-1/8"
28.6mm |
1-3/4"
45.2mm |
||||
| BACKSET | "A" | "B" | |||
|---|---|---|---|---|---|
| 1-1/8" | 1-1/8" | 1-3/4" | |||
| 28.6mm | 28.6mm | 45.2mm | |||
| 1-1/2" | 1-1/2" | 2-1/8" | |||
| 38.1mm | 38.1mm | 54mm | |||

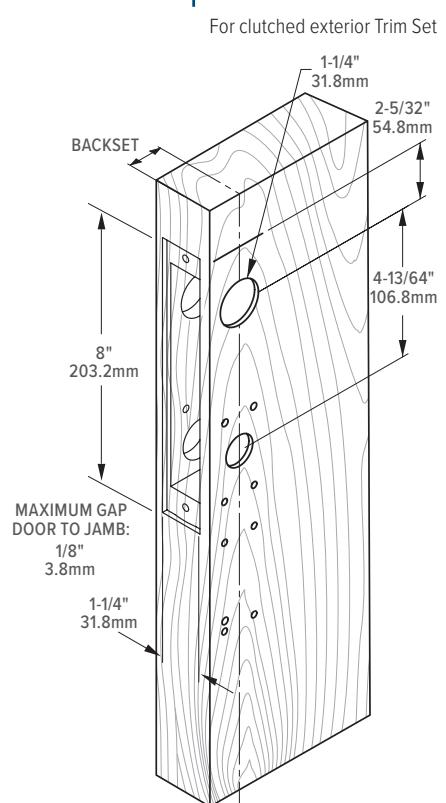

Stile Preparation

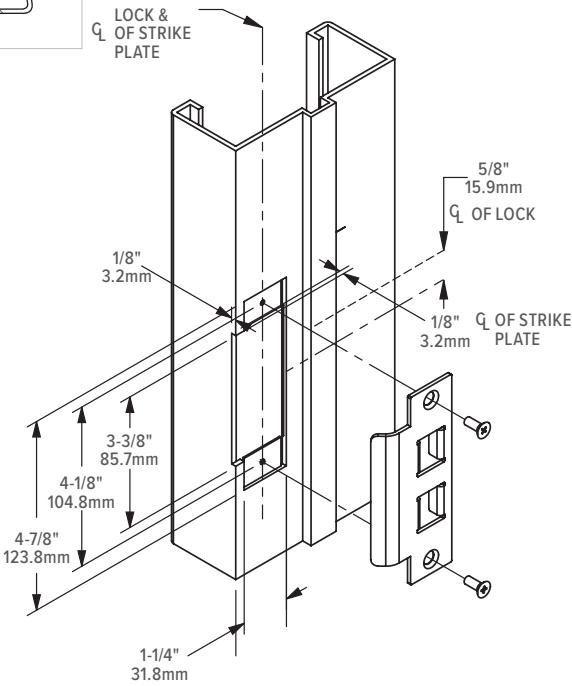

Jamb Preparations

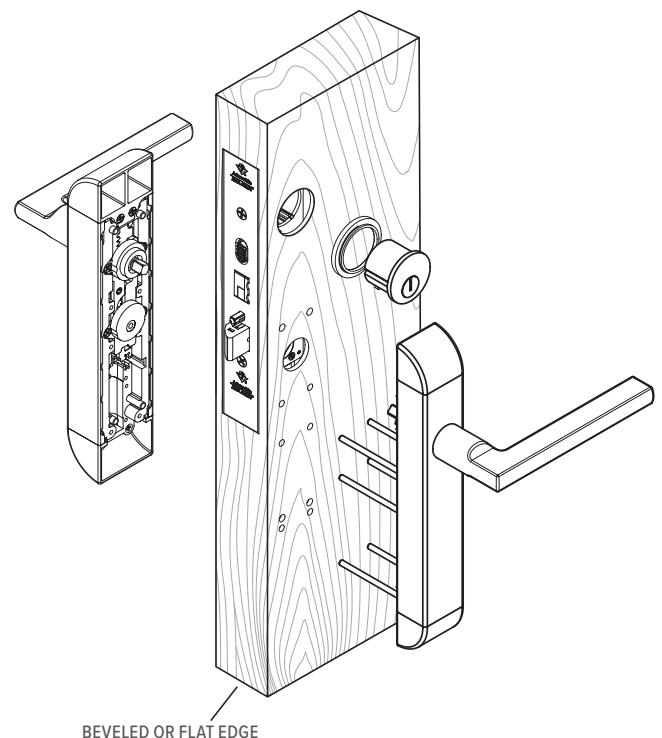

Latch/Lock, Cylinder & Level Installation
US adamsrite.com | 800.872.3267 | customerservice.adamsrite@assaabloy.com Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com
DEADLOCKS

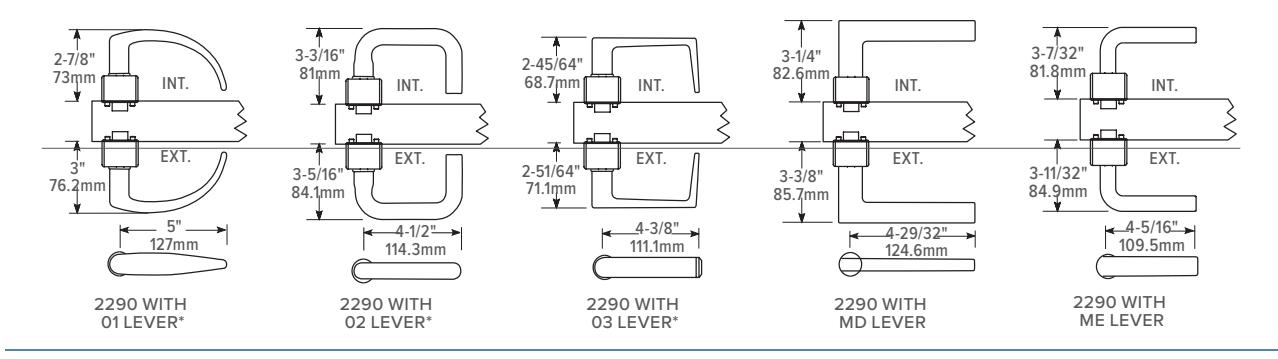

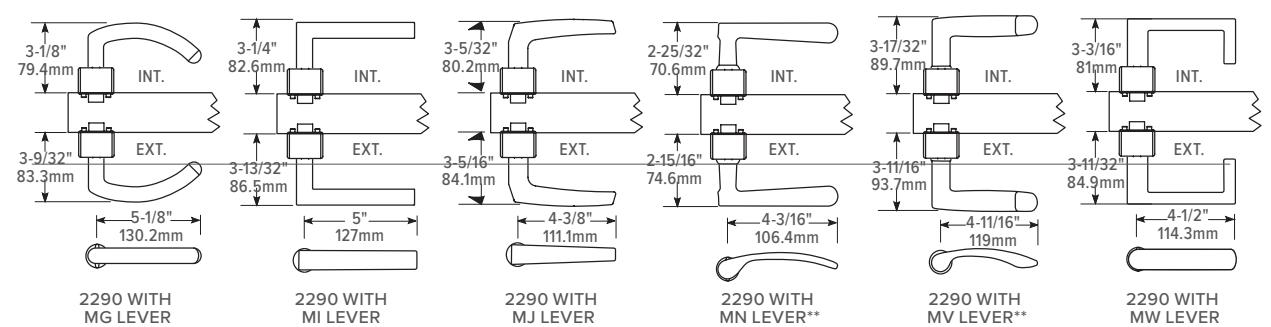

2290 Dimensions
Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.
* The 2290-01, -02, and -03 lever handles are
designed to return within 1/2" of the door face.
** Handed
How to Order & Related Products
2290 Interconnected Deadbolt/Deadlatch: Specify quantity and the following information. Order related products separately.
| MODEL | BACKSET | STRIKE | FACEPLATE FINISH | TRIM | HANDLE DESIGNATION |
TRIM AND HANDLE
FINISH |
|||
|---|---|---|---|---|---|---|---|---|---|
| 2290 | -3 | 1 | 1 | -1 | 01 | 32D | |||
| 3 1-1/8" | 0 None | 0 US to match trim finish | 0 None | 00 No Handle | 03 Bright Brass (US3) | ||||
| 4 1-1/2" | 1 Standard Flat | 1 Clear Anodized 628 | 1 With Trim Set | STANDARD SERIES: | 04 Satin Brass (US4) | ||||
| 2 Dark Bronze Anodized 313 | 2 With Electrified Trim Set | 01 Curve 02 Round 03 Square 10B to | 10B to match Dark Bronze | ||||||
| 3 Black Anodized 335 | 3 Low Profile Trim | DESIGNER SERIES: 32 Bright Stainless (US32) | |||||||
| MD | MG | MJ | MV | 32D Satin Stainless (US32D) | |||||
| ME (Handed) | МІ | MN | MW | ||||||
RELATED PRODUCTS
When purchasing this product, please consider the following related products, available separately:
| CYLINDERS | ACCESSORIES | ELECTRIFICATION |
|---|---|---|
|
Standard 1" length, 1-5/32" diameter
mortise cylinder with MS® cam such as 4036 Mortise Cylinder, 4066 Thumbturn; MS4043 Cylinder Guard |
2190-TDK Thick Door Kit for standard
exterior trim set, TDK-4600 Thick Door Kit for low profile trim set. |
EK-2190 Electrification Kit.
2190 may be ordered with electrified trim (trim option 2). |
