Adams Rite 1877 Flushbolts Installation Intructions

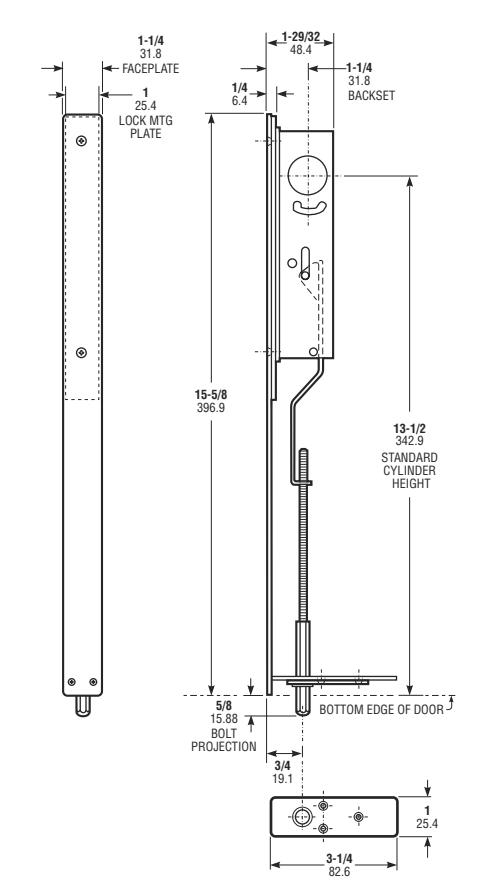

DIMENSIONS INCHES MILLIMETERS

Nominal, subject to tolerance extremes.

Cylinder Cam

1877 locks are operable by any standard 1-5/32" diameter mortise cylinder with special MS® cam dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See page SW-28 for cylinder make and trim ring information.

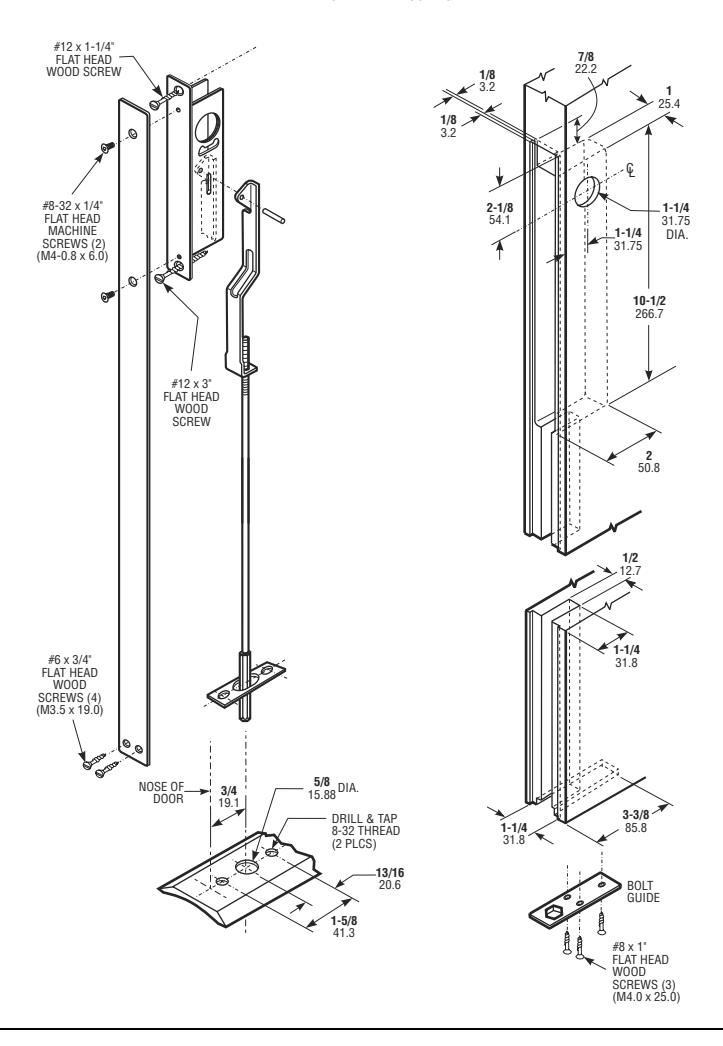

INSTALLATION

FOR INSTALLATION LOCKING THRESHOLD. INVERT FOR HEADER LOCKING

ADAMS RITE MANUFACTURING CO.

260 Santa Fe Street, Pomona, CA 91767 Phone: (909) 632-2300 Fax: (909) 632-2369

1877 Cylinder-Operated Flushbolt For Wood Doors
