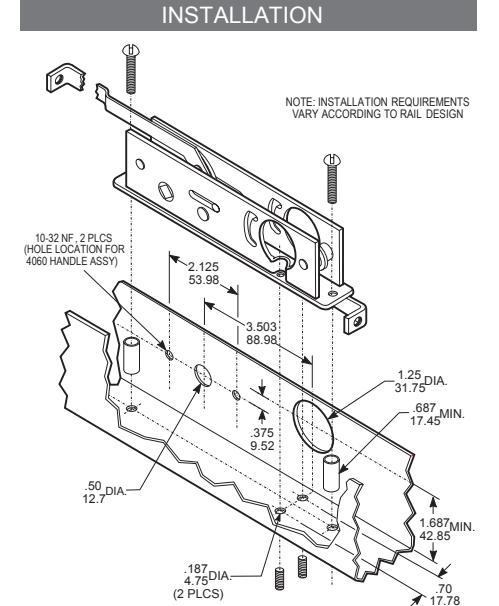

Adams Rite 1875 Deadlocks Installation Instructions

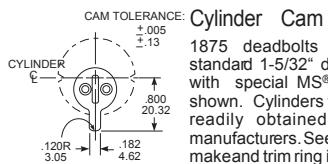

1875 deadbolts are operable by any standard 1-5/32" diameter mortise cylinder with special MS® cam dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See page SW-28 for cylinder makeand trim ring information.

ADAMS RITE MANUFACTURING CO.

260 Santa Fe Street, Pomona, CA 91767 Phone: (909) 632-2300 Fax: (909) 632-2369

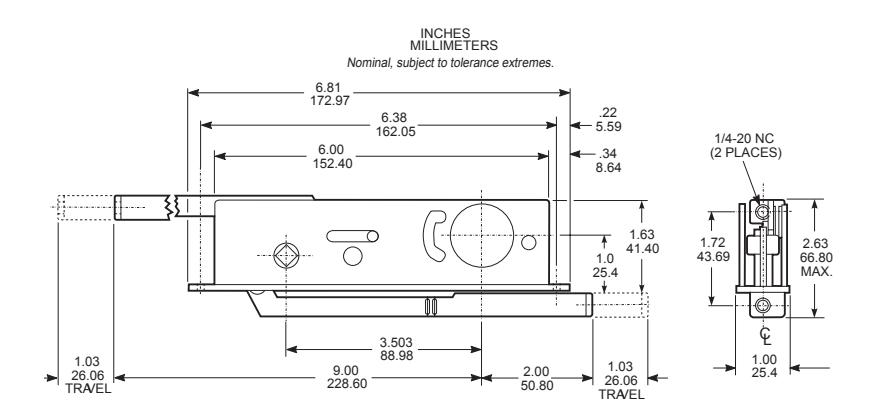

1875 Two Point Deadbolt
