TUBE SPACERS

INSTALLATION

NOTES:

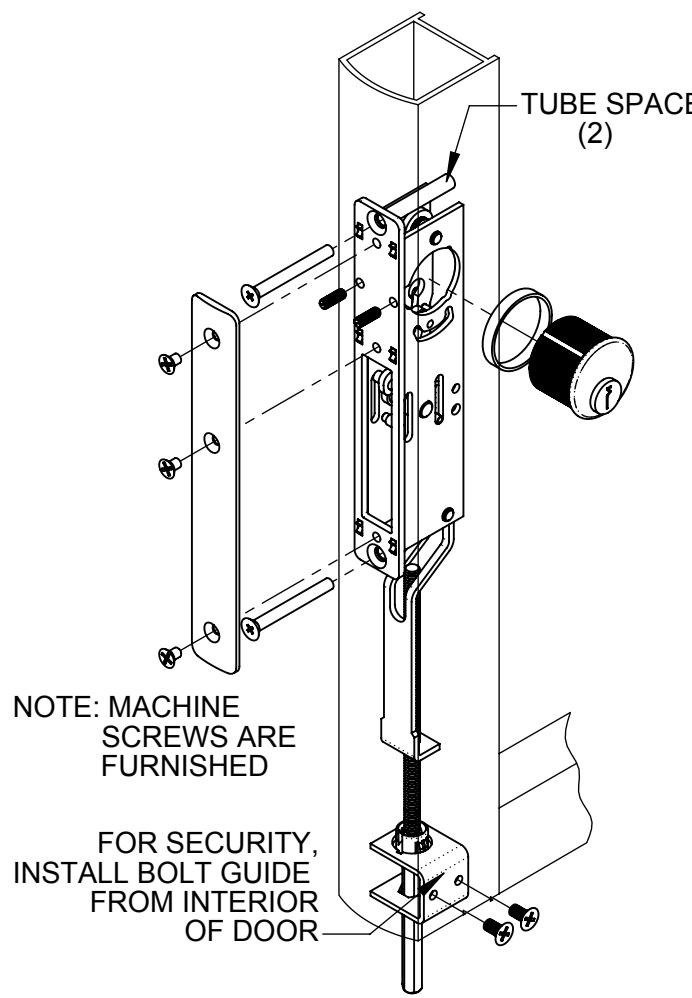

• 1. WITH THE LOCK IN THE UNLOCKED CONDITON, SCREW THE ROD-BOLT ASSEMBLY INTO THE ACTUATOR ARM TO APPROXIMATELY 12" (305) FROM THE TIP OF THE BOLT, TO THE CENTERLINE OF THE CYLINDER OPENING. (SEE SECTION 1).
• 2. INSTALL THE ASSEMBLED UNIT THRU THE CUTOUT IN THE STILE, AND SECURE WITH #10 SCREWS.
• AFTER ADJUSTING THE ROD-BOLT ASSEMBLY EVEN WITH THE BOTTOM OF THE DOOR STILE. INSTALL THE BOLT GUIDE USING #10 SCREWS FURNISHED. FOR ANY FUTURE ADJUSTMENTS. THE BOLT GUIDE MUST BE REMOVED BEFORE THE ROD-BOLT ASSEMBLY CAN BE ROTATED.
• 4. INSTALL RADIUS FACEPLATE WITH SCREWS FURNISHED.

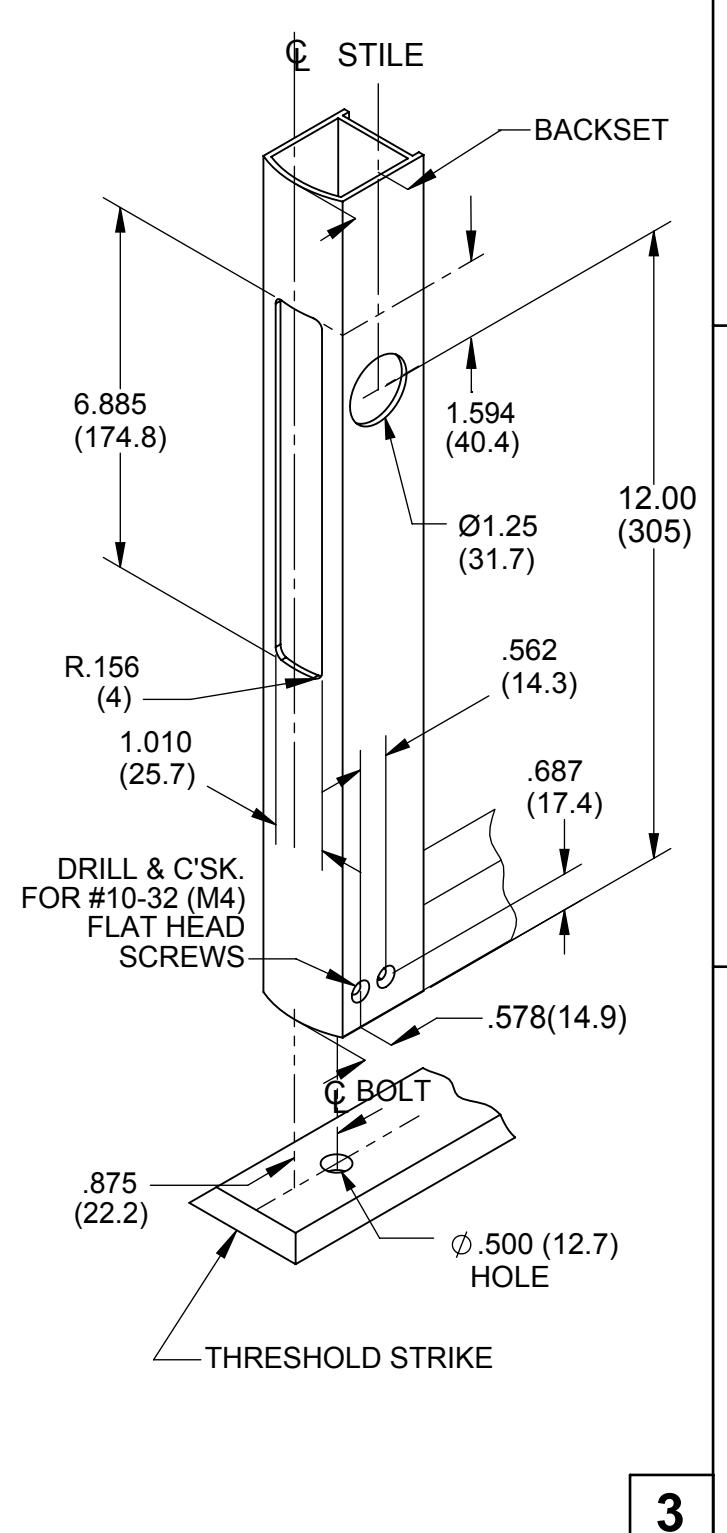

STILE PREPARATION

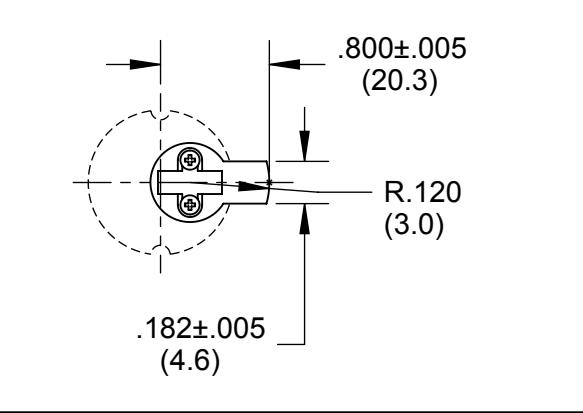

1870 SERIES LOCKS ARE OPERABLE BY ANY STANDARD 1 5/32" DIAMETER (29.4) MORTISE CYLINDER WITH SPECIAL M.S. CAM DIMENSIONED AS SHOWN. CYLINDERS WITH M.S. CAMS CAN BE READILY OBTAINED FROM MOST CYLINDER MANUFACTURERS.

CYLINDER TRIM RING

6

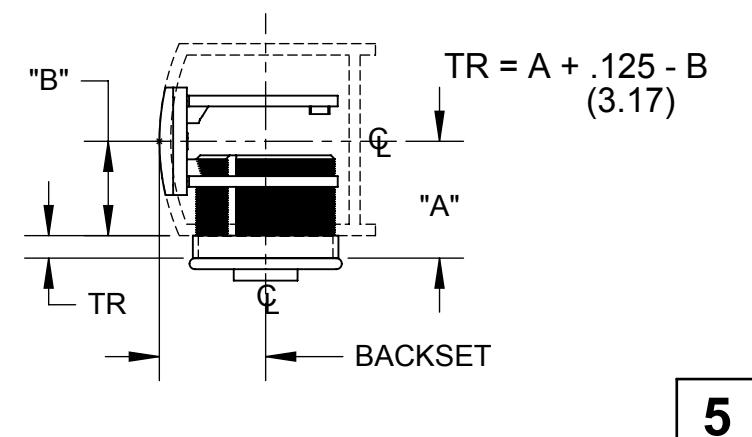

TRIM RING THICKNESS (TR) WILL VARY WITH SPECIFIC CYLINDER MAKE. NUMBER OF PINS & STILE THICKNESS TO DETERMINE TRIM RING THICKNESS. USE THE FOLLOWING FORMULA.

MOUNTING METHOD

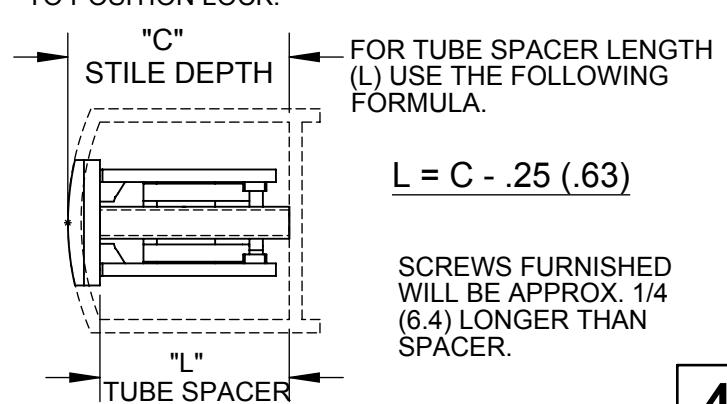

LOCK IS SECURED TO BACK WEB OF STILE BY MEANS OF TWO (2) #10 FLAT HEAD MACHINE SCREWS AND TUBE SPACERS OF PROPER LENGTH TO POSITION LOCK.

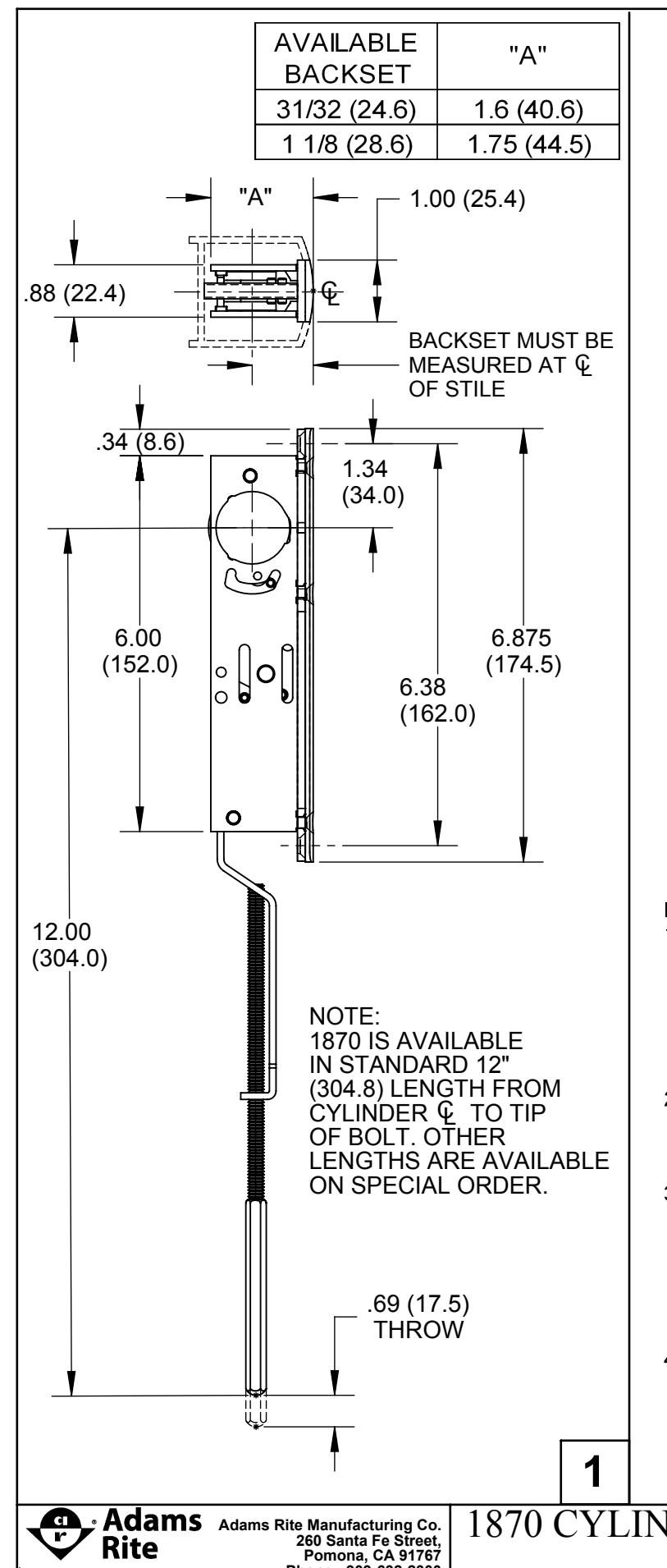

1870 CYLINDER OPERATED FLUSH BOLT
