Adams Rite 1000 Thumbturns Installation Instructions
Open the original PDF document
View PDFINCHES MILLIMETERS Nominal, subject to tolerance extremes.

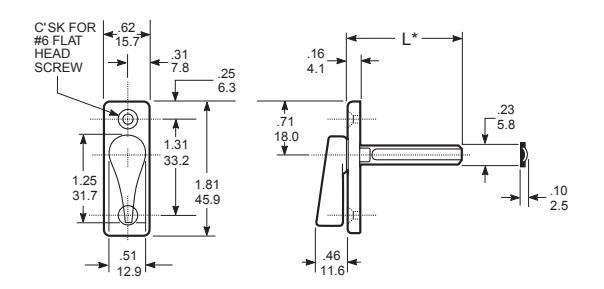

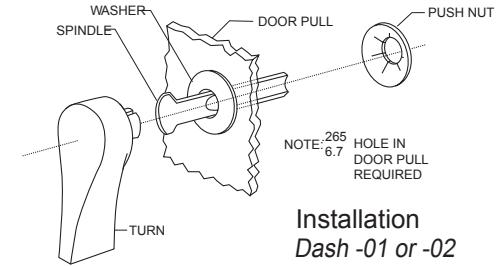

Turn with Escutcheon Furnished Assembled
1000-21 PERPENDICULAR DRIVE
1000-11 PARALLEL DRIVE
Turn without Escutcheon Furnished Unassembled
1000-02 PERPENDICULAR DRIVE
| Second Dash Number | |||
|---|---|---|---|
| No | "L" | No. | "L" |
| -11 | .54 (13) | -22 | 1.23(31) |
| -12 | .61 (15) | -23 | 1.29 (33) |
| -13 | .67 (16) | -24 | 1.36 (34) |
| -14 | .73 (18) | -25 | 1.42 (36) |
| .15 | .79 (20) | -26 | 1.48 (37) |
| -16 | .86 (22) | -27 | 1.52 (38) |
| -17 | .92 (23) | -28 | 1.61 (41) |
| -18 | .98 (24) | -29 | 1.67 (42) |
| -19 | 1.04 (26) | -30 | 1.73 (43) |
| -20 | 1.11(26) | -31 | 1.79 (45) |
| -21 | 1.17 (30) | -32 | 1.86 (47) |

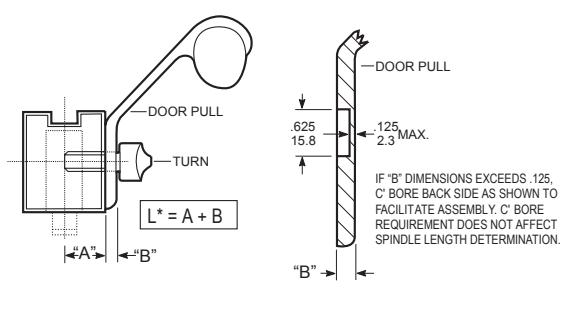

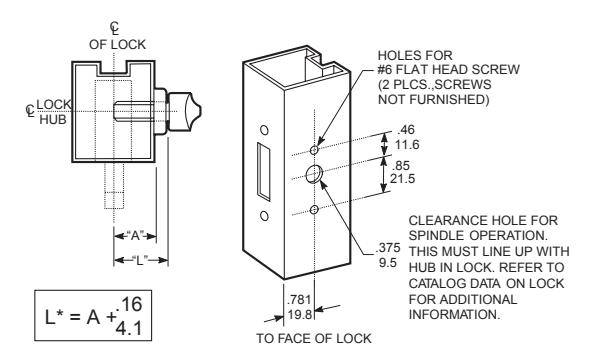

Stile Preparation Dash -11 or -21
Phone: (909) 632-2300 Fax: (909) 632-2369
1000 Series Turns
