Notes:

  • Do not scale drawing. All dimensions given in inches (mm).
  • 2. For strike preparation refer to:
    • 371 Strike Template No. 7102-0005
    • 497 Strike Template No. 7102-0003

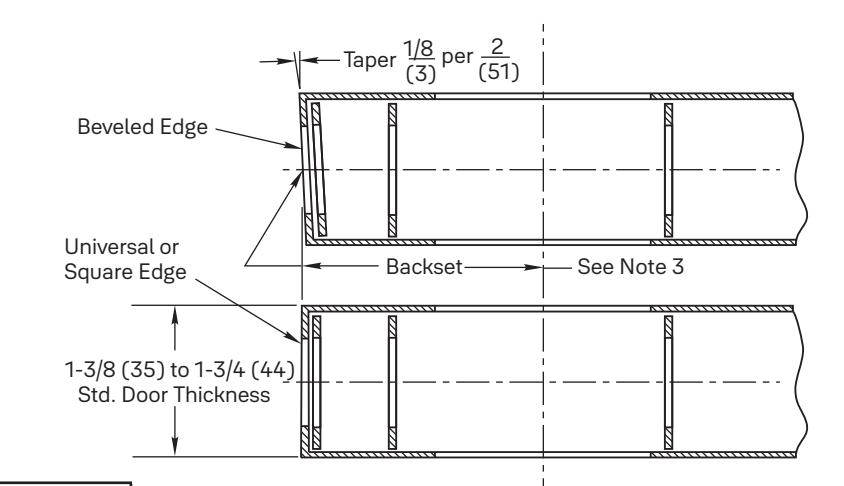

  • 3. Backset: 2-3/4" (70mm) standard
  • 4. For wood door preparation refer to: Template No. 80-8150-0034-010
  • Door manufacturer must provide supports within the door to keep the door from collapsing when lock is installed. Back of latch case must also be supported.

nexTouch™ Cylindrical Locks
NTB610/612 B610/612 Cylinder Override - Push Button
NTB620/622 Cylinder Override - Cap Touch
NTB630/632 No Cylindrical Override - Push Butto
NTB640/642 No Cylindrical Override - Cap Touch

nexTouch™ Cylindrical Locks
Latch No. Front Backset Latchbolt Throw Front Dim. A
694 (std) Beveled 2-3/4" (70) 1/2" (13) 1-1/8" (29)
F694 Flat 2-3/4" (70) 1/2" (13) 1-1/8" (29)
480B Beveled 2-3/4" (70) 3/4" (19) 1-1/8" (29)
F480B Flat 2-3/4" (70) 3/4" (19) 1-1/8" (29)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

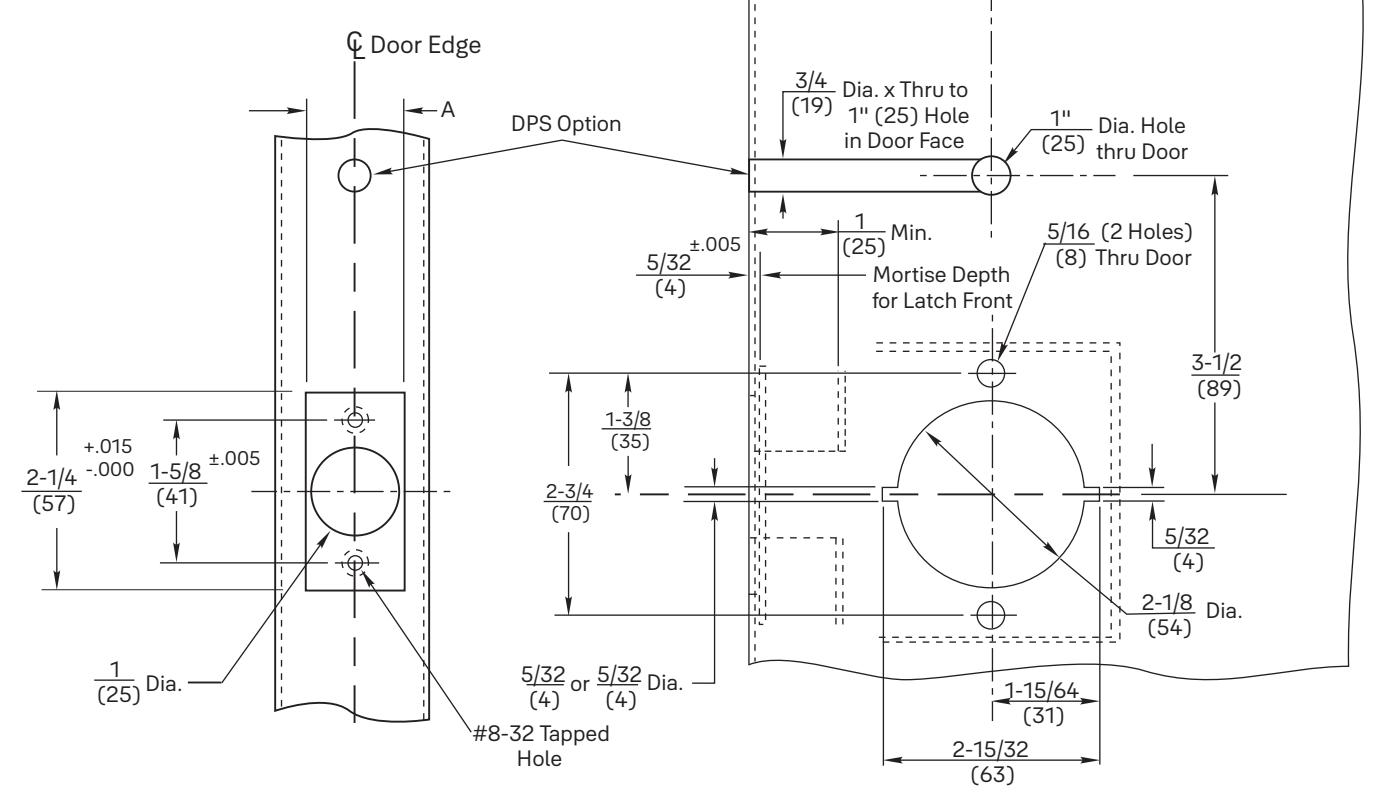

nexTouch™ Cylindrical Locks H.M. Door Preparation 2-3/4" (70mm) Backsets

1-800-438-1951 www.yalelocks.com

DO NO EMPLATE NUMBER 80-8150-0033-010 SHEET 1

£ 2-1/8 Cross Bore

DO NOT SCALE DRAWING D SHEET DATE 09/22
