7400-1886

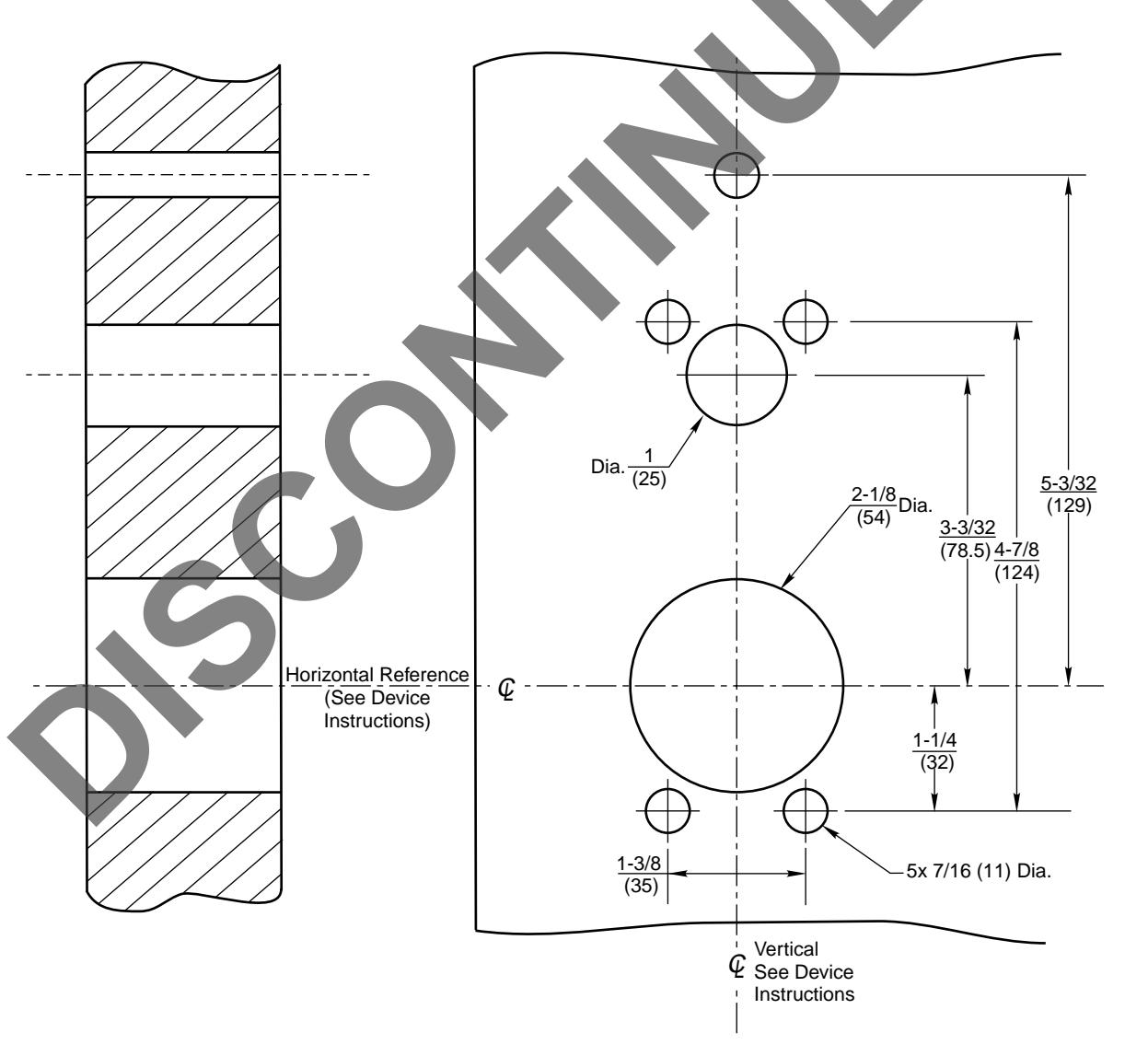

Notes:

  • This template is in addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate internal support to prevent door deformation after trim is attached to device.
  • 7. Dimensions given about the vertical centerline are symmetrical.

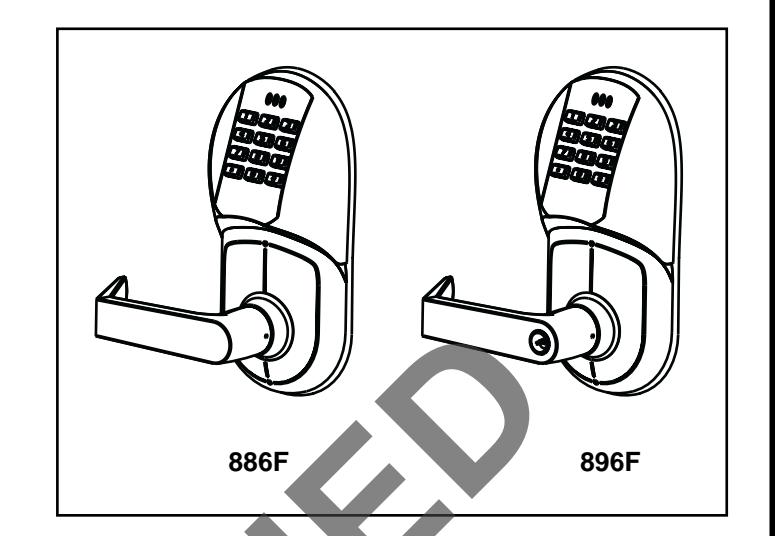

Yale<sup>®</sup> eBOSS<sup>®</sup> 886F and 896F Trim With 7100(F) & 2100(F) Rim and 7150(F) & 2150(F) SquareBolt<sup>®</sup> Devices For Wood or Composite Doors and H.M. Frame Application

Yale<sup>®</sup>

An ASSA ABLOY Group brand

www.yalecommercial.com

7400-1886

01-08
