7400-0886

Notes:

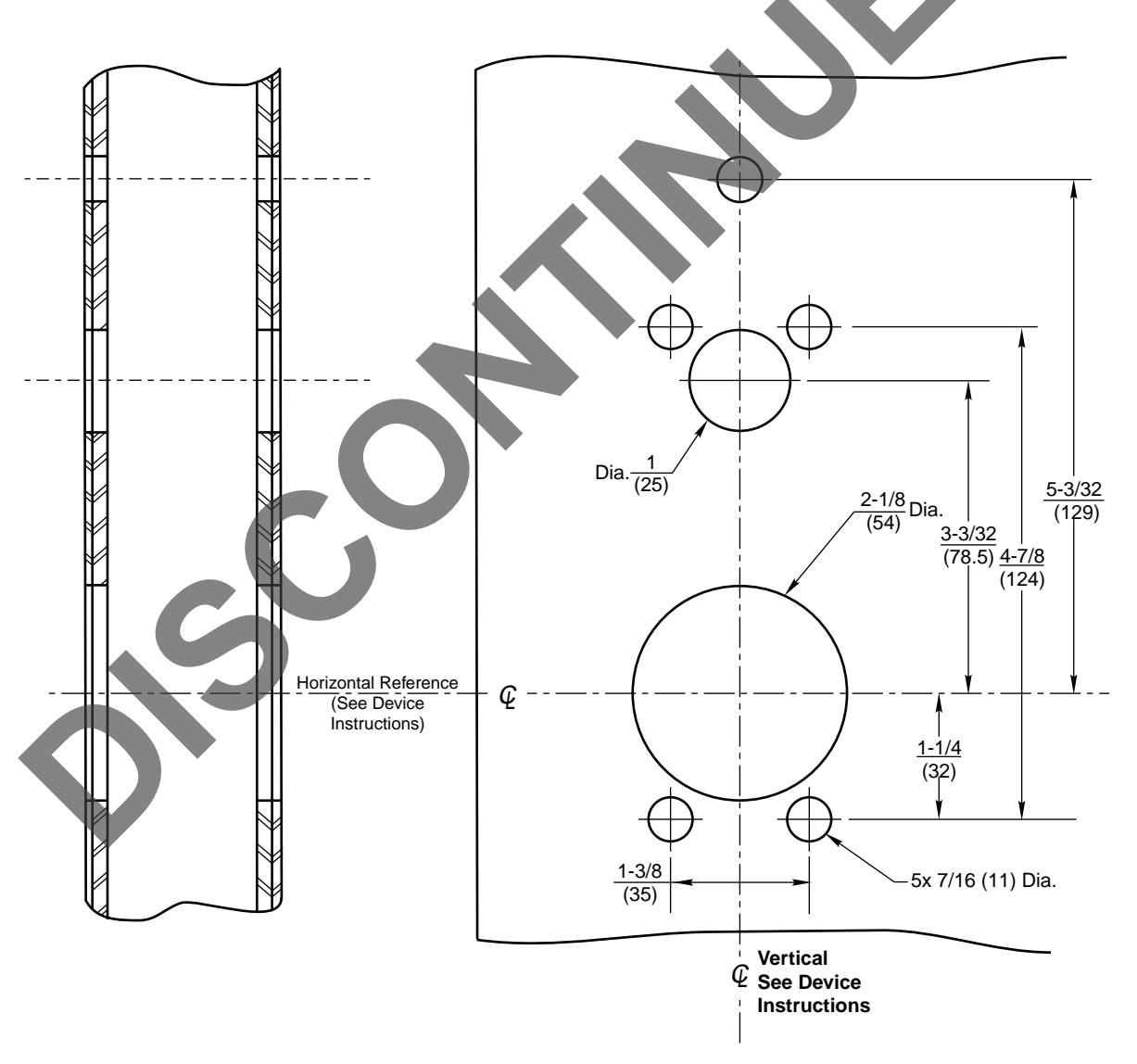

  • This template is in addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both hands.
  • 5. For door reinforcement see template 7400-0000.
  • 6. Prepare mounting holes when installing trim.
  • Provide adequate internal support to prevent door deformation after trim is attached to device.
  • 8. Dimensions given about the vertical centerline are symmetrical.

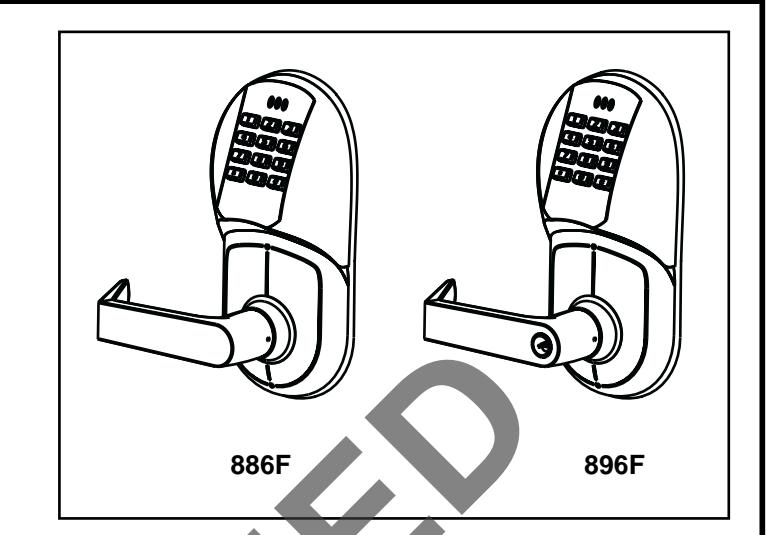

Yale® eBOSS® 886F and 896F Trim With 7100(F) & 2100(F) Rim and 7150(F) & 2150(F) SquareBolt® Devices For Metal Door and Frame Application

Yale<sup>®</sup>

An ASSA ABLOY Group brand

www.yalecommercial.com

7400-0886

01-08
