YSSL10 Security SideLite

Auxiliary Latch

Installation Instructions Tools #2 Phillips Screwdriver Center Punch 1" Bore 1/2" Drill Bit 1. Latch Assembly 2. Face Plate 3. Tailpiece 4. Thumbturn Assembly 5. Combo Screws (6) 6. Strike

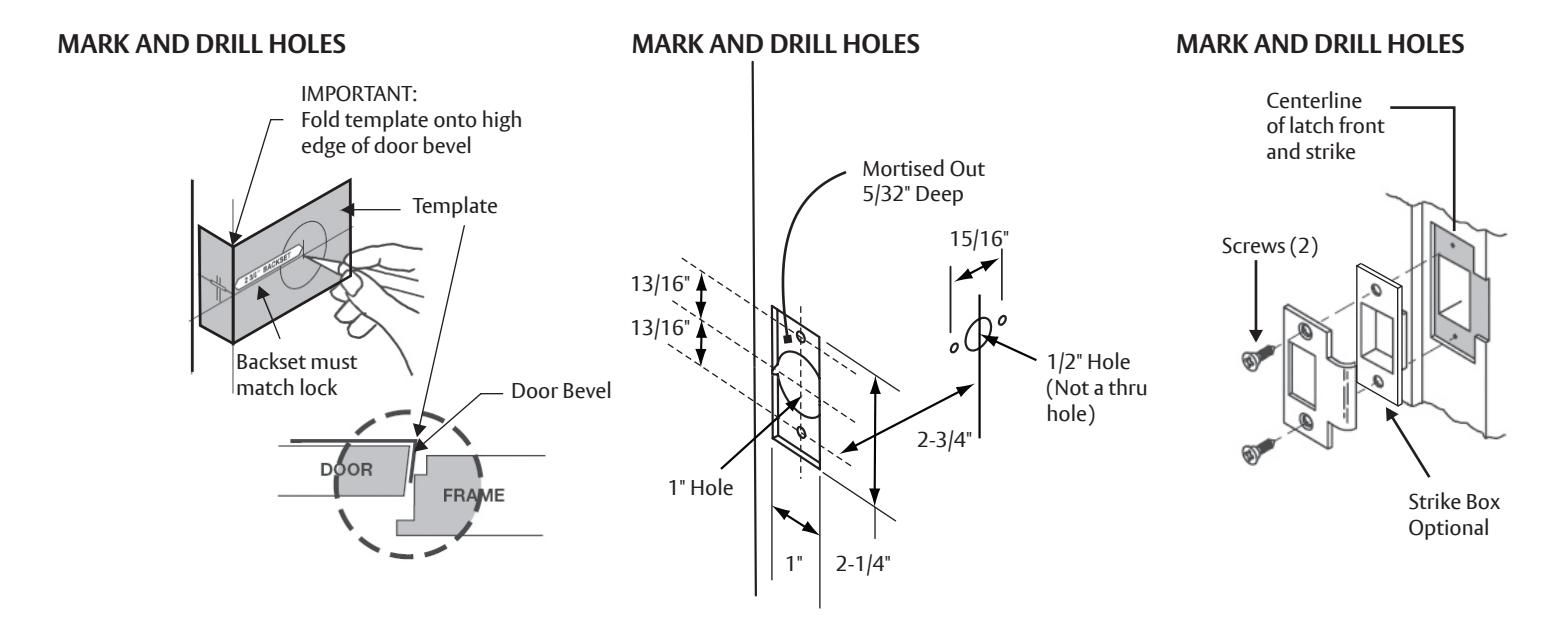

Door Preparation

Hollow Metal Doors should be properly reinforced for lock support. If support is not provided, contact door manufacturer. For all metal door preparations, use Template 7150-0087.

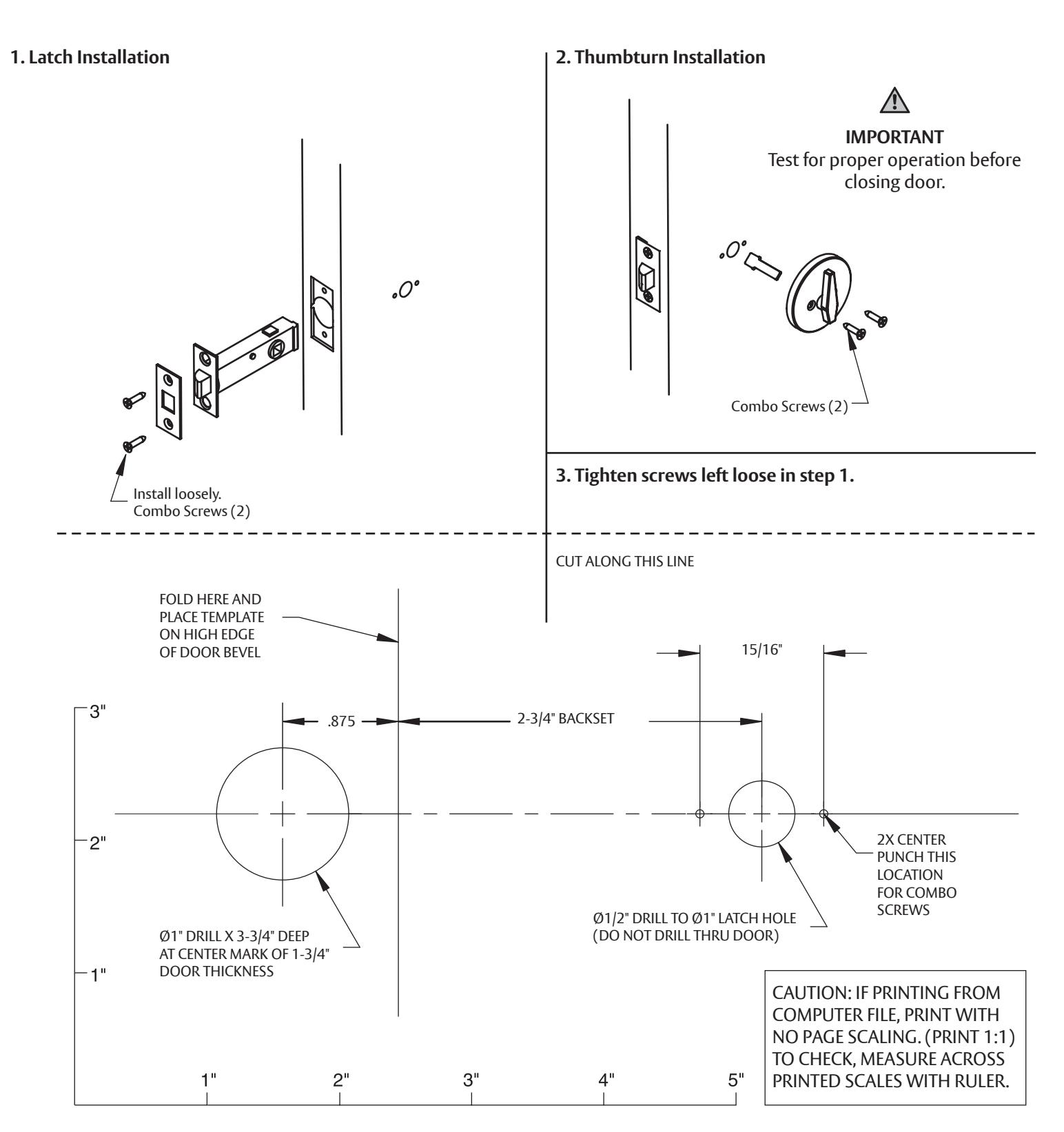

For all wood door preparations, use Template at bottom of page 2 or Template 7150-0086.

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

WARNING

Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-9510-0076-000 01/24

If installation instructions are not followed this may result in damage to the lock and void the factory warranty. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-9510-0076-000 01/24
