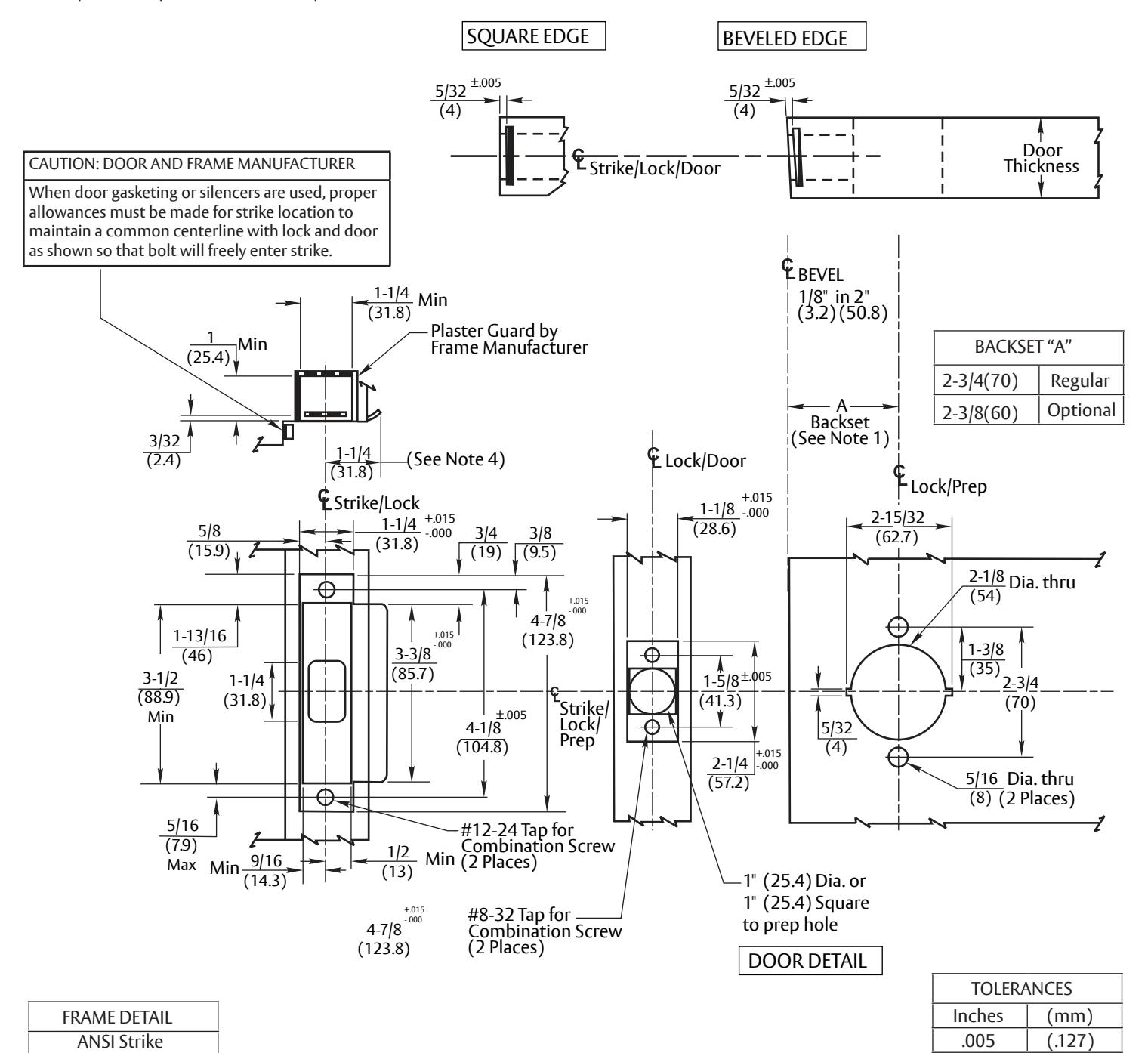

ASSA ABLOY ACCENTRA YPL Series Cylindrical Locks 2-3, 8 and 2-3, 4 Backsets H.M. or Wood Door Template_7150-0124

Open the original PDF document

Notes:

Backset is measured from centerline of bevel which is centerpoint of door thickness.
Door prep with 2-3/4" (70) backset meets ANSI/BHMA A156.115 for steel doors and A156.115W for wood doors plus through bolt holes shown.
3. Dimensions given in inches and (mm).
4. 1-1/4" strike lip suits frame for 1-3/4" thick door.


TEMPLATE CROSS REFERENCE
DESCRIPTION	TEMPLATE
371 T Strike	7102-0005
70S Full Lip Strike	7102-0006

RESPONSIBILITY

(Regularly Furnished)

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

YPL Series Indicator Lock

2-3/8" and 2-3/4" Backsets HM or WD Doors

ASSA ABLOY

.015
