YPL Series Cylindrical Indicator Lock

Table of Contents

Contents

Features 3
How to Order, Finishes, Lever Trim 4
Function 5
Indicator Options 5
Latchbolts 6
Strikes 6
Technical Specifications and Listings7

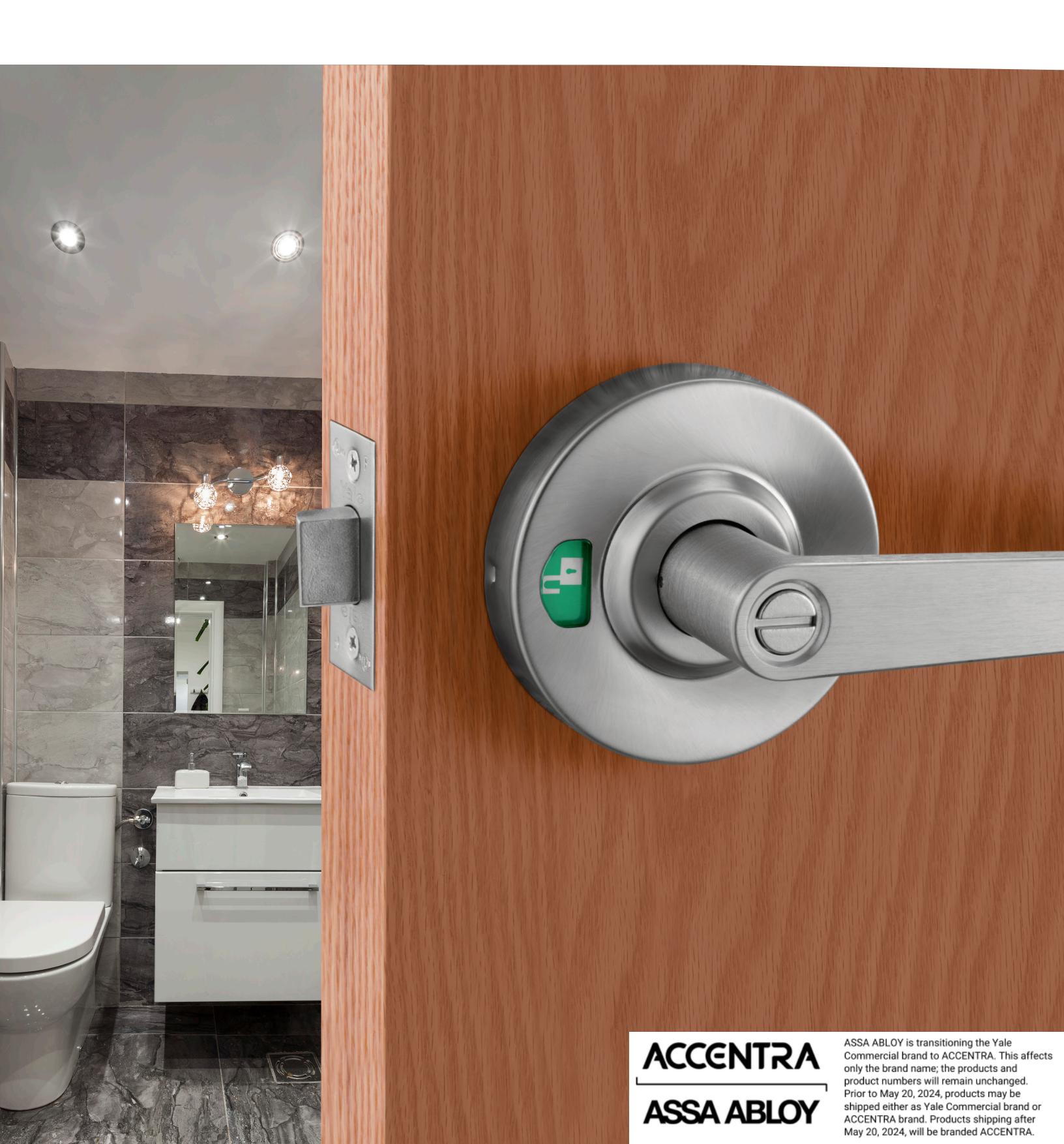

Increased Privacy

The cylindrical lock indicator visually displays door status; whether the door is locked or unlocked, thus eliminating potentially embarrassing situations and providing a peace of mind.

Using a standard bored lock door prep, this indicator lock is ideal for new construction or retrofit applications.

Features

Features

• Red or Green window display with padlock icon for visual door status
• Cylindrical lock construction for durability and longevity in high use applications
• Patent pending design
• Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
• One motion for egress
• Coin turn for emergency access
• Through-bolted for robust operation
• Ideal for retrofit
• Lever returns to within 1/2" of door face

Applications

• Office buildings
• Restaurants
• Schools
• Hospitals
• Warehouses

• Airports
• Places of Worship
• Convenience Stores
• Gas Stations
• Travel Centers

Specifications

Door Prep	ANSI/BHMA A156.115
Door Thickness	1-3/4" (44mm) standard, accommodates 1-3/8" (35mm) with adapter plate kit (ordered separately, specify APK-2)
Backset	2-3/4" (70mm) standard, 2-3/8" (60mm) optional
Handing	Non-handed
Latchbolt	Plain, 2-3/4" (70mm) backset x 1-1/8" (29mm) square corner front with 1/2" (13mm) throw standard, 2-3/8" (60mm) x 1" (25mm) optional
Strike	ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center
ANSI/BHMA	2-3/4" Backset: Certified Grade 1, ANSI/BHMA A156.2, Series 4000 2-3/8" Backset: Certified Grade 2, ANSI/BHMA A156.2, Series 4000
UL/cUL	Listed for 3 hour fire doors
Warranty	3 years

How To Order, Finishes, Lever Trim

How To Order

Trim Design	Function	Finish
AU	YPL02	626

Finishes

ANSI/BHMA Code Finish Description
605 Bright Brass, Clear Coated	613E Dark Oxidized Satin Bronze - equivalent	626 Satin Chrome Plated	BSP Black Suede Powder Coat

Lever Trim

Augusta - AU

Lever: Cast Zinc Rose: Wrought Brass

Functions

YPL02 (F76A) Privacy Lock with Indicator • Either lever operates latchbolt unless outside lever is locked by pushbutton inside. • Pushbutton inside changes indicator display status outside. • Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside. • Coin turn in outside lever for emergency access. • Inside lever always active. • Outside lever rigid when in locked position. Outside Inside

Indicator Display

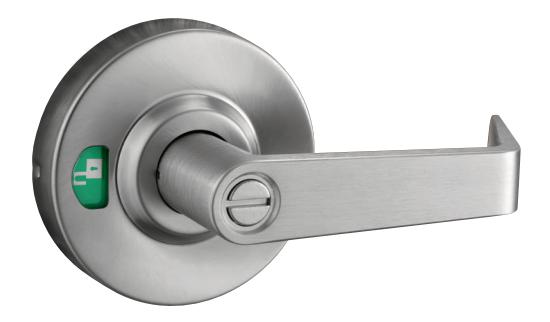

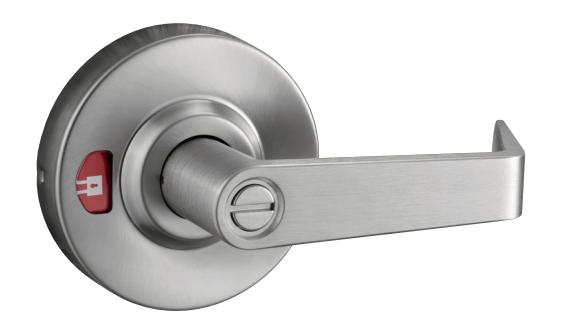

YPL02 locks are provided standard with a visual display that shows red with a closed shackle padlock for locked and green with an open shackle padlock for unlocked. The padlock icons are positioned in a manner that allows for the locks to be non-handed.

Other options may be available by special application, contact Customer Service for more information.

Latchbolts

Model No. 693A supplied standard with all YPL02 locksets. Standard latchbolt has a 2-1/4" (57mm) x 1-1/8" (29mm) beveled square front with a 2-3/4" (70mm) backset and a 1/2" (13mm) throw bolt. Optional 2-3/8" latchbolt available to order.

Model	Front	Backset	Throw	"W" Front Width	Latch Diameter
693A	Square	2-3/4" (70mm)	1/2" (13mm)	1-1/8" (29mm)	1" (25mm)
378PL	Square	2-3/8" (60mm)	1/2" (13mm)	1" (25mm)	7/8" (22mm)*

^*1/8& quot; sleeve supplied to accommodate 1" preps.

Strikes

Model No. 497 ANSI Strike (Standard)

For door and frames with ANSI/BHMA A156.115 preparations $4-7/8"\; \backslash times\; 1-1/4"\; \backslash times\; 1-1/4"$ (124mmx 32mm $\backslash times$ 32mm) lip to center supplied standard. Other lip lengths available by special order. Available with optional 202 Strike Box. Specify 497 $\backslash times$ 202.

Model No. 371 T-Strike

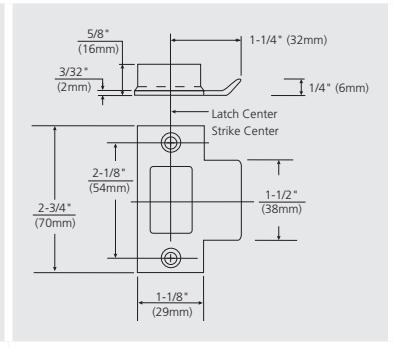

2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard. Other lip lengths available by special order. Wrought strike box supplied.

Model No. 70S Full Lip

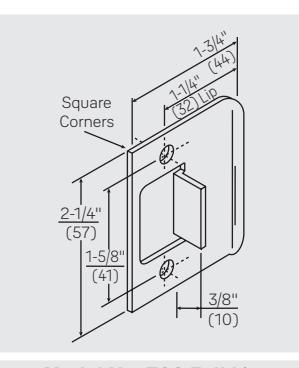

2-1/4" $\backslash times$ 1-3/4" $\backslash times$ 1-1/4" (57mm $\backslash times$ 44mm $\backslash times$ 32mm) lip to center with full lip anti-rattle tab.

Model No. 202 Strike Box

Available to special order. Specify x 202.

Technical Specifications and Listings

ADA

Fire Listings

The YPL02 meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1, all requiring ease of accessibility for the handicapped.

ANSI/BHMA

2-3/4" Backset: Certified ANSI/BHMA A156.2, Series 4000 Grade 1.

2-3/8" Backset: Certified ANSI/BHMA A156.2, Series 4000 Grade 2.

Door Thickness

The YPL02 installs on 1-3/4" thick doors standard. It can also be used on 1-3/8" thick doors by adding adapter plates. To order specify adapter plate kit model number APK-2.

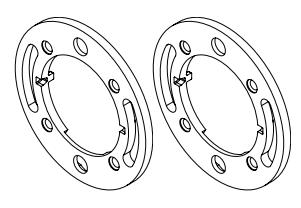

APK-2

UL/cUL Listed for up to 3 hours

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks and Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official(Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Installation

YPL02 Cylindrical locks conform to ANSI/BHMA Specifications A156.115 which cover hardware preparations for steel doors and steel frames and A156.115-W which cover hardware preparations for wood doors with wood or steel frames.

Warranty

The YPL02 cylindrical lever lock carries a three-year warranty.
