ASSA ABLOY ACCENTRA YMCL200 Series Cylindrical Locks 2-3, 4 and Optional Backsets H.M. Door Template_7150-0080

YMCL SERIES Lever Locks
Backset	Latch No.	Front Dim. A
2-3/8 (60)	YMCD38, YMCP38	1 (25) *
2-3/4 (70)	YMCD34, YMCP34	1-1/8 * (29)

Notes:

1. For strike preparation refer to:

497 strike = Template No. 7102-0003.

371 strike = Template No. 7102-0005.

• 2. Dimensions marked with * have tolerances of +.015, -0.000
• 3. All dimensions given in inches (mm).
• 4. Standard locks adjustable for 1-3/8" (35) to 1-3/4" (44) door thicknesses.
• 5. For universal or square edge doors.

Experience a safer and more open world

$Copyright\; \backslash \; @\backslash \; 2006,\; 2008,\; 2023,\; \backslash \; ASSA\backslash \; ABLOY\backslash \; Access\; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\; Inc.\backslash \; is\backslash \; prohibited.$

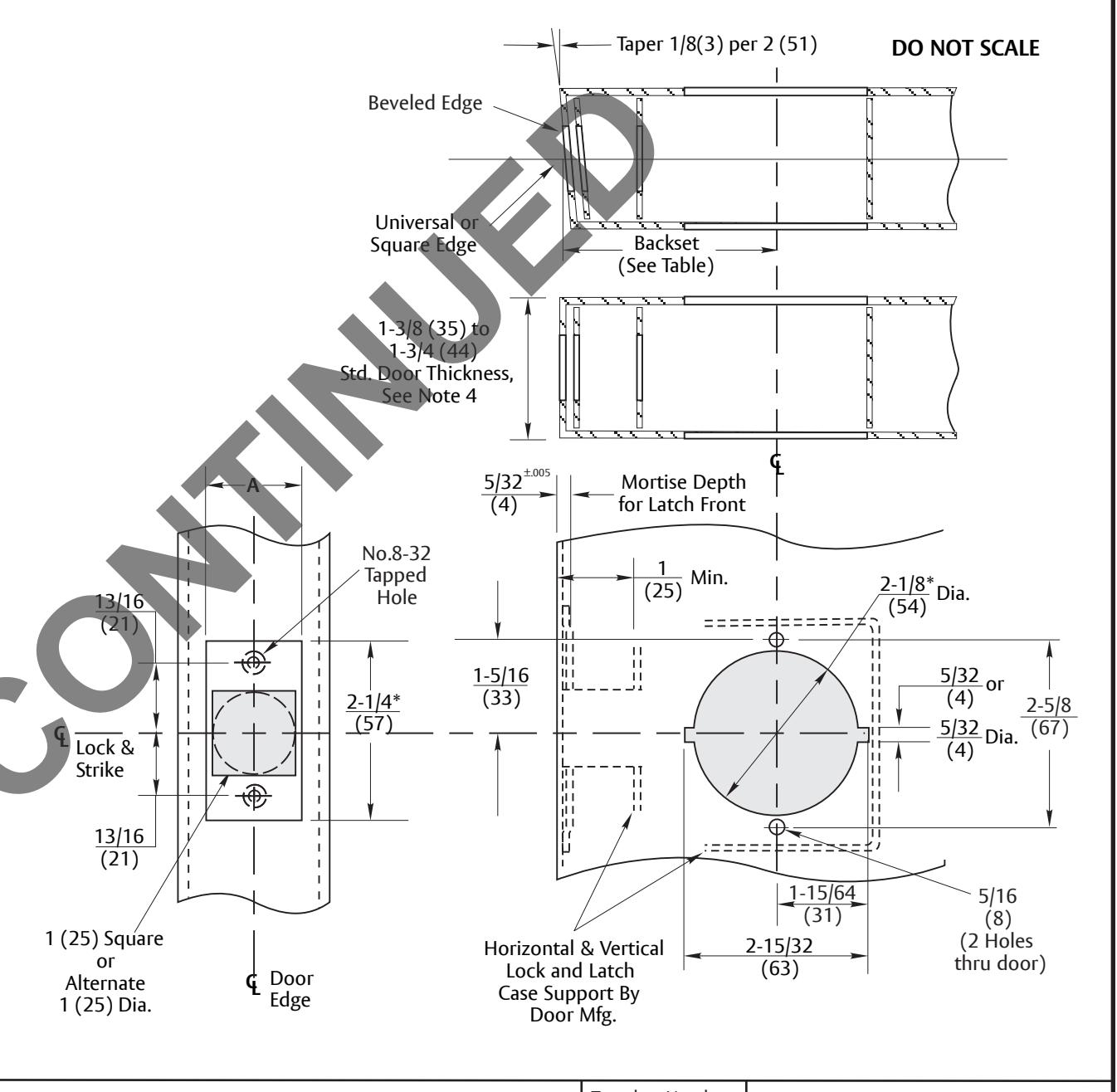

YMCL200 Series Lever Handle Cylindrical Locks H.M. Door Preparation 2-3/4" and Optional Backsets

Template Number: 7150-0080 Sheet: 1 of 1
