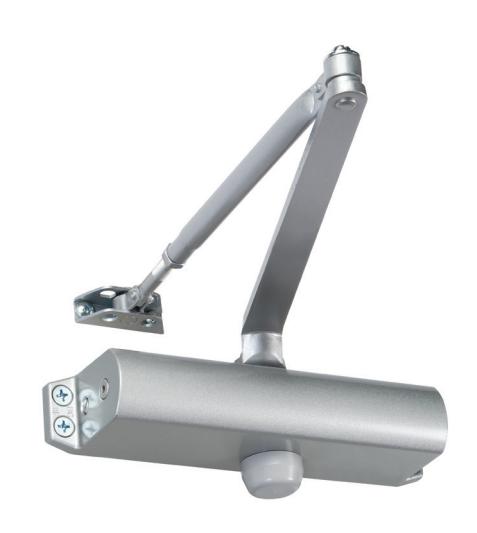

YDC200 Series
Economy Door Closer
Table of Contents
| Features & Benefits | 3 |
|---|---|
| How to Order | 4 |
| Dimensions and Applications | 5 |
Contents YDC200 Economy Door Closer

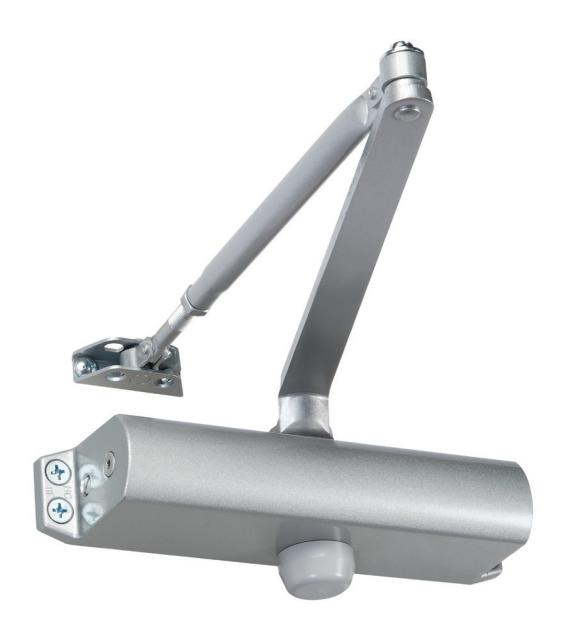

Yale® YDC200 Series Economy Door Closer is a no-fuss, affordable option for aluminum storefront settings and other high volume applications. Certified to meet ANSI/ BHMA A156.4, Grade 1, YDC200 Series Door Closers provide a trusty and reliable solution to your commercial space, including retail, office buildings, and more.
Bringing you a dependable door closer at an attractive price point, Yale Works for YouSM.
Features & Benefits
Features
- Adjustable spring size 1-4 (YDC201) or fixed spring size 4 (YDC204)
- Tri-packed: regular, top jamb, or parallel mounting options
- Non-handed
- Cast aluminium body and threaded adjustable arm
- Rack & pinion design
- Independent latch, sweep, and backcheck intensity valves
- Available in two finishes
- 5 year limited warranty
Benefits
- Ideal for a variety of facilities: Well-suited to commercial, aluminum storefront, and hospitality applications
- Ease of product selection: Economical, affordable, no-fuss product offering
- Great for retrofit applications: 3/4" by 9-1/16" closer dimensions easily retrofit to a common footprint
- Reliable: UL/cUL listed and designed to meet ANSI/BHMA Grade 1 certification standards
How to Order
Please select model number and finish.
| Model | Description | Finish |
|---|---|---|
| YDC201 | Multi-sized Closer – Non-Hold Open | |
| YDC204 | Fixed Size 4 Closer – Non-Hold Open | 689 or 690 |
Notes:
- Before installing a door closer, verify the accessibility, fire, and life-safety requirements that are in effect. This includes the mounting height and projection into the clear opening. Check the adopted state and local building codes and consult the Authority Having Jurisdiction (AHJ).
- To maintain the warranty and ensure proper operation of the product, follow the installation instructions & templates and install on the inside of the building.
- Consult NFPA 80 for the hinge requirements on a fire door.
- Failure to use fasteners supplied with closer may void factory warranty.
- Optional fasteners are available for a variety of applications. Consult the door and frame manufacturer to ensure the proper fasteners are used to maintain certifications.
- Sizing charts are based on 1-3/4" x 7' standard weight doors swinging to 110°. Other application conditions (i.e. larger door heights or weight) may require larger size closer. Adjusting the spring power to meet the low opening force requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, may not provide adequate closing power to dependably close and latch the door in some conditions (i.e. air movement from wind gusts or building stack pressure).

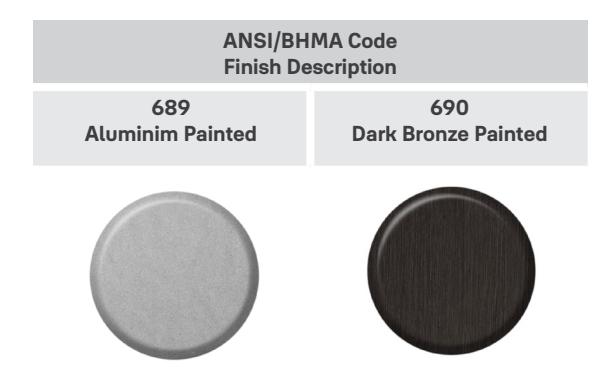

Finishes
Parts List
| Description | Part Number* |
|---|---|
| Sleeve Nuts (1-3/4" door only) | SN-134 |
| Cover (order by part number) | YDC200COV |
Optional cover (YDC200COV)
Dimensions and Applications

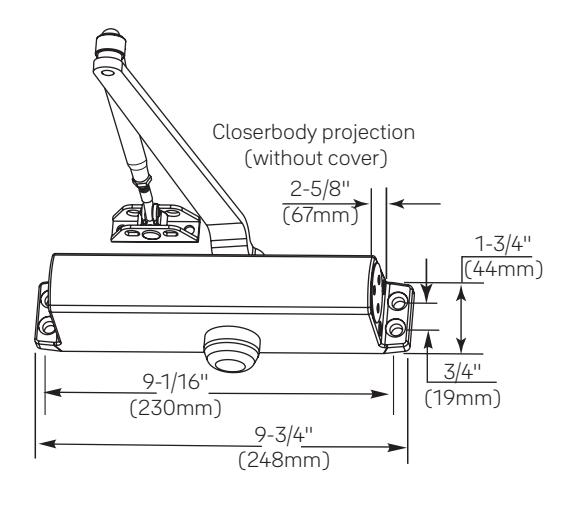

Dimensions

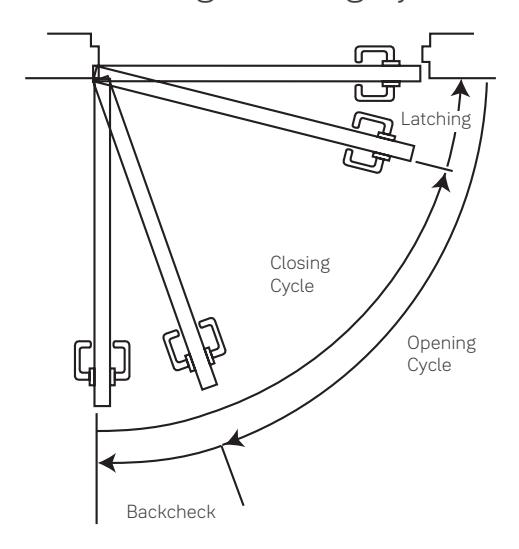

Door Closing Latching Cycle
Applications
Regular Arm Top Jamb Parallel Arm
Notes
Notes
