View PDFYale® and Affinity® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2011, 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Affinity® locksets feature an automatic deadbolt lock case which requires a handed curved lip strike. Strike is either L or R, see chart for proper strikes per door hand.
| Hand of door | Strike L | Strike R |
|---|---|---|
| LH | X | |
| RHR | X | |
| RH | X | |
| LHR | Х |
Do Not Scale All dimensions in inches (mm).

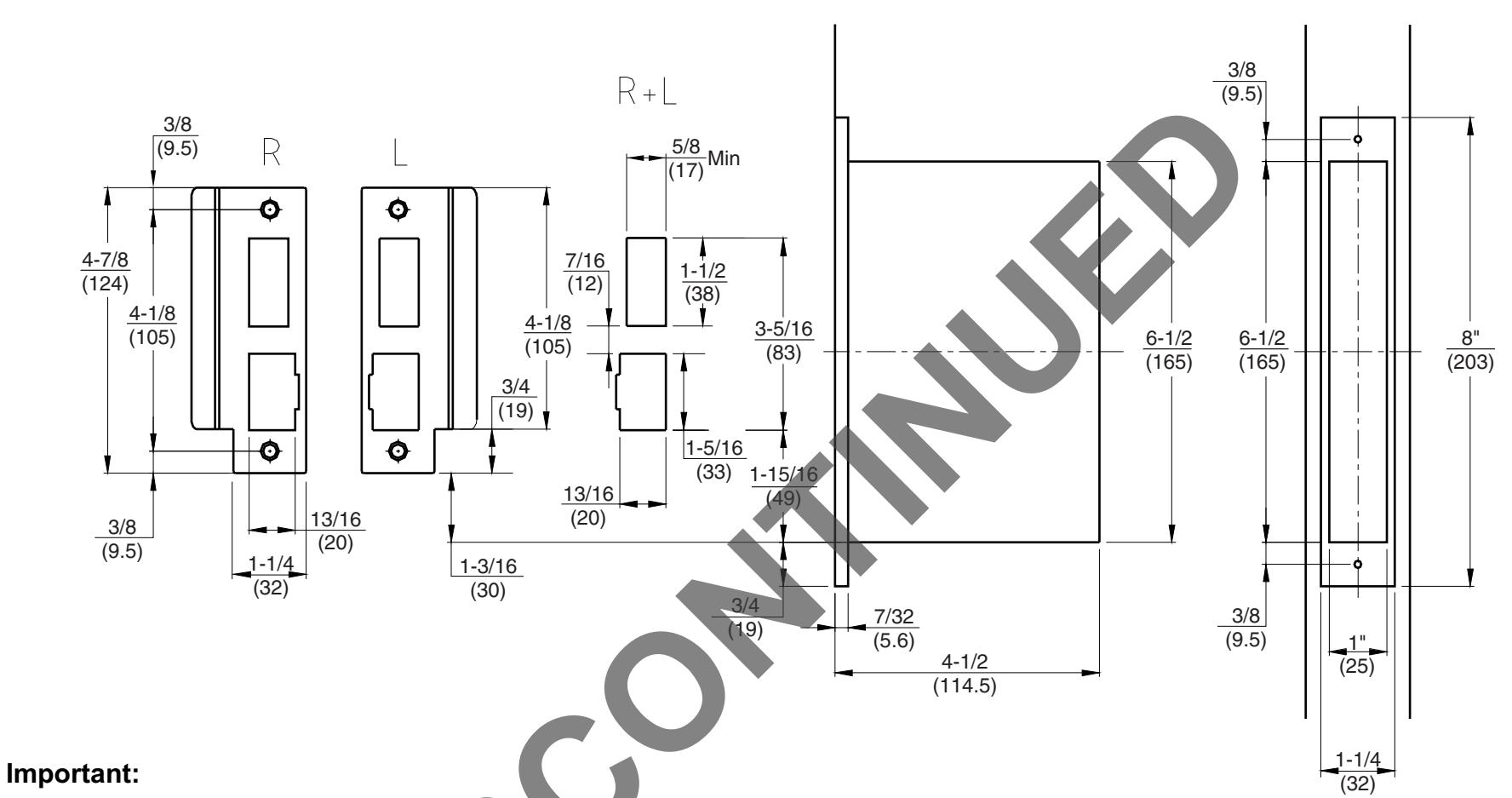

Affinity® Door and Strike Cutout Automatic Deadbolt Strike - Wood/Metal
TEMPLATE NUMBER DATE 03-13 VCAF-0003
