Installation Instructions
80-9344-1401-010 (09-09)
Unitrol Top Jamb Door Controls ®
UNI Stop/Holder
Series: UNI-TJ4400/TJ4410 (DL), UNI-TJ400/TJ1400 (DL)
Top Jamb Door Controls
| Series UNI-TJ4400 | |||||
|---|---|---|---|---|---|
| Multi-size | |||||
|
Closer
Sizing |
|||||
| Chart | |||||

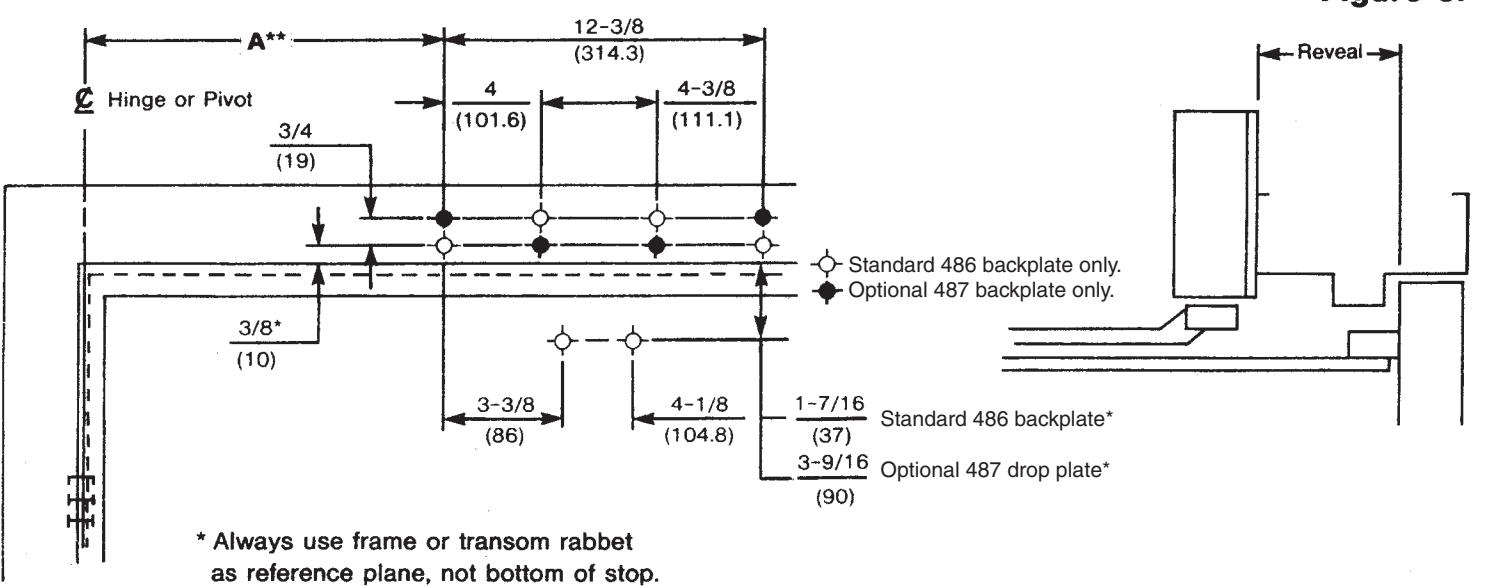

Top-Jamb Installation Template Figure 3.
** For 1¾" door with 4½" wide butts or ¾" offset-pivots see figure 4. For 1¾" door with center-pivots see figure 5. All other conditions require special template.
Do Not Scale Drawing Left Hand Door Shown Dimensions are in inches
| Door-Control location for 1¾" (44mm.) thick doors hung on 4½" (114mm.) wide template-hinges or ¾" (19mm.) offset-pivots. | Figure 4. | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Arm
Number |
NON-HOLDER | J660 | 0-4 | J6200-4 | J6100-4 | J6400-4 | J6500-41 | J6500-42 | J6500-43 | |||||||
| Stamp | HOLO-OPEN | J660 | 0-7 | J620 | 0-7 | J6100-7 | J6400-7 | J6500-71 | J6500-72 | J6500-73 | ||||||
| Reveal | inches | 0-3, | /8 | 1/2- | 2-2 2-1/8-3-1/4 | 3-3/8-4-1/4 4-3/8-5- | 5-3/8 | 5-1/2-6-3/8 | 6-1/2-7-3/8 | |||||||
| 5 | mm. | 0-1 | 0 | 13- | 13-50 55-83 | 33 | 85-10 | 80 | 111-137 | 140-162 | 165-187 | |||||
|
Opening
Ingle |
Dimens | ion A | Dimension A | Dimension A | Dimension A | Dimension A | Dimension A | Dimension A | ||||||||
|
Hold
Open |
Door
Stop |
inches | mm. | inches | mm. | inches | mm. | inches | mm. | inches | mm. | inches | mm: | inches | mm. | |
| 85° | 90° | 9-3/4 | 248 | 9-7/8 | 251 | 9-3/4 | 248 | 10 | 254 | 10-1/8 | 257 | 10-1/8 | 257 | 10-1/8 | 257 | |
| 90° | 95° | 9 | 229 | 9-1/4 | 235 | 9-1/8 | 232 | 9-1/2 | 241 | 9-3/8 | 238 | 9-3/8 | 238 | 9-3/8 | 238 | |
| 95° | 100° | 8-3/8 | 213 | 8-3/4 | 222 | 8-1/2 | 216 | 8-7/8 | 225 | 8-7/8 | 225 | 8-7/8 | 225 | 8-7/8 | 225 | |
| 100° | 105° | 7-7/8 | 200 | 8-1/4 | 210 | 8 | 203 | 8-1/4 | 210 | 8-3/8 | 213 | 8-3/8 | 213 | 8-3/8 | 213 | |
| 105° | 110° | 7-1/2 | 191 | 7-3/4 | 197 | 7-3/4 | 197 | 8 | 203 | 8-1/8 | 206 | 8-1/8 | 206 | 8-1/8 | 206 | |
| 110° | 115° | 7-1/8 | 181 | 7-3/8 | 187 | 7-3/8 | 187 | 7-3/8 | 187 | 7~5/8 | 194 | 7-5/8 | 194 | 7-5/8 | 194 | |
| Door-Control location for 1%" (44mm.) thick doors hung on center pivots. Figure 5. | 5. | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Arm | NON-HOLDER | J6600-4 | J6200-4 | J6100-4 | J6400-4 | J6500-41 | J6500-42 | J6500-43 | |||||||
|
Number
Stamp |
HOLD-OPEN | J660 | 0-7 | J6200-7 | J6100-7 | J6400-7 | J6500-71 | J6500-72 | J6500-73 | ||||||
| Reveal | inches | 0-3, | /8 | 1/2-2 | 2-1/8-3-1/4 | 3-3/8-4-1/4 | 4-3/8-5-3/8 | 5-1/2-6-3/8 | 6-1/2-7-3/8 | ||||||
| mm. | 0-1 | 0 . | 13-50 | 55-83 | 85-108 | 111-137 | 140-162 | 165-187 | |||||||
|
Opening
Angle |
Dimens | ion A | Dimens | ion A | on A Dimension A | Dimens | ion A Dimension A | ion A | Dimension A | Dimension A | |||||
|
Hold
Open |
Door
Stop |
inches | mm. | inches | mm. | inches | mm. | inches | mm. | inches | mm. | inches | mm. | inches | mm. |
| 85° | 90° | 10-1/8 | 257 | 10-1/4 | 260 | 10-1/4 | 260 | 10-1/2 | 267 | 10-5/8 | 270 | 10-5/8 | 270 | 10-5/8 | 270 |
| 90° | 95° | 9-5/8 | 244 | 9-5/8 | 244 | 9-5/8 | 244 | 10 | 254 | 10 | 254 | 10 | 254 | 10 | 254 |
| 95° | 100° | 9 | 229 | 9-1/4 | 235 | 9-1/8 | 232 | 9-3/8 | 238 | 9-5/8 | 244 | 9-5/8 | 244 | 9-5/8 | 244 |
| 100° | 105° | 8-1/2 | 216 | 8-5/8 | 219 | 8-5/8 | 219 | 8-7/8 | 225 | 9-1/8 | 232 | 9-1/8 | 232 | 9-1/8 | 232 |
| 105° | 110° | 8 | 203 | 8-1/4 | 210 | 8-1/8 | 206 | 8-1/2 | 216 | 8-3/4 | 222 | 8-3/4 | 222 | 8-3/4 | 222 |
| 110° | 115° | 7-5/8 | 194 | 7-3/4 | 197 | 7-7/8 | 200 | 8-1/8 | 206 | 8-1/2 | 216 | 8-1/2 | 216 | 8-1/2 | 216 |
| Preparation f | Figure 6. | ||
|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes |
| Sex-nuts and bolts |
Arm-foot,
(closer plate |
Hollow-Metal | 9/32" (7.00mm.) through 3/8" (9.50mm.) door-face opposite to closer |
| in flush partition) |
Aluminum
or Wood |
3/8" (9.50mm.) through | |
|
#14 ×1-1/4" (32mm.)
type "A" S.M. screws |
Closer plate | Wood | 3/16" (4.30mm.) |
| 1/4-20 machine screw | Metal | drill: #7 (.201") tap: ¼-20 | |
| Through-bolts and grommet-nuts | Optional | All | 9/32" (7.00mm.) through 3/8" (9.50mm.) dia. 3/8" (10mm.) deep, door-face opposite to close |
| UNI-TJ4400 multi-size Only) | Use "Multi-size Closer Sizing Chart" (figure 2). |
| Four (4) for 486 backplate. | |
Unit Adjustment

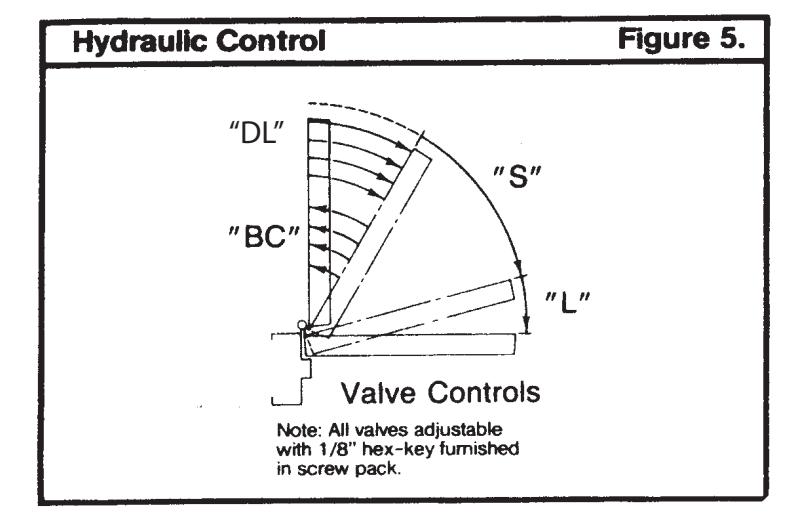

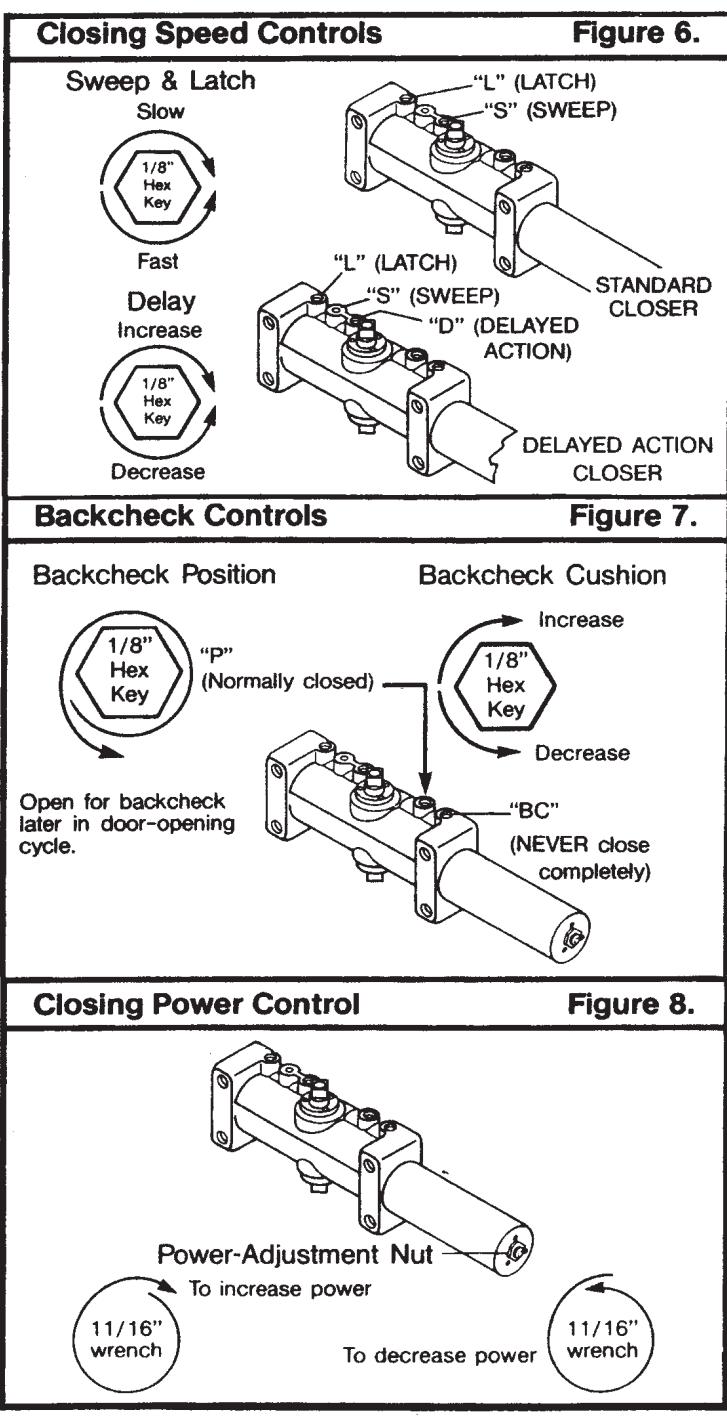

Closing Speed Controls (Figure 6)
- Valve "S" Controls Sweep Range
- Valve "L" Controls Latch Range
- Valve "D" Controls Optional Delay Range
Opening Speed Controls (Figure 7)
- Backcheck ("BC") valve controls the hydraulic resistance to door opening. NEVER close this valve completely it is not to provide a positive stop.
- Backcheck position ("P") valve controls the door angle where backcheck cushioning starts. Valve is normally closed.
Closing Power Control (Figure 8)
- · Adjust as required

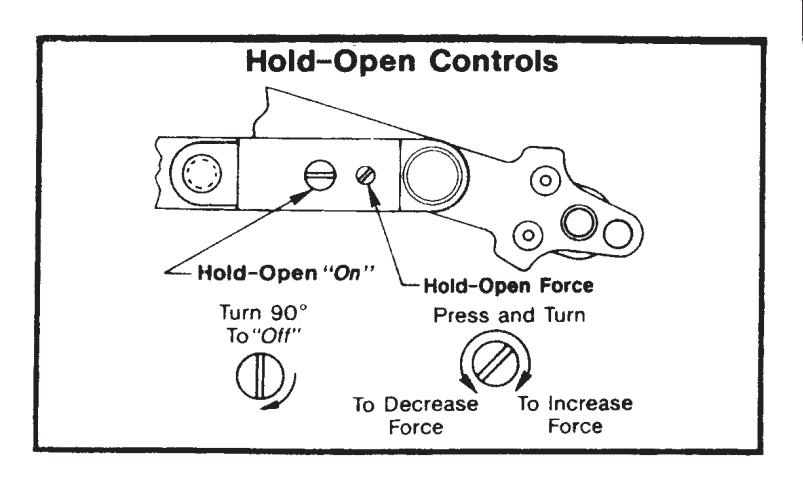

- Hold-Open controls are at arm elbow (models suffixed "H"). To select hold-open on or hold-open off and to adjust the hold open force. . . use screwdriver as illustrated below.
An ASSA ABLOY Group brand
3000 Highway 74 East • Monroe, NC 28112 Tel: (800)-438-1951 • Fax: (800)-338-0965 www.yalecommercial.com
