★ Door must be free to swing 5° beyond holdopen position.
Notes:

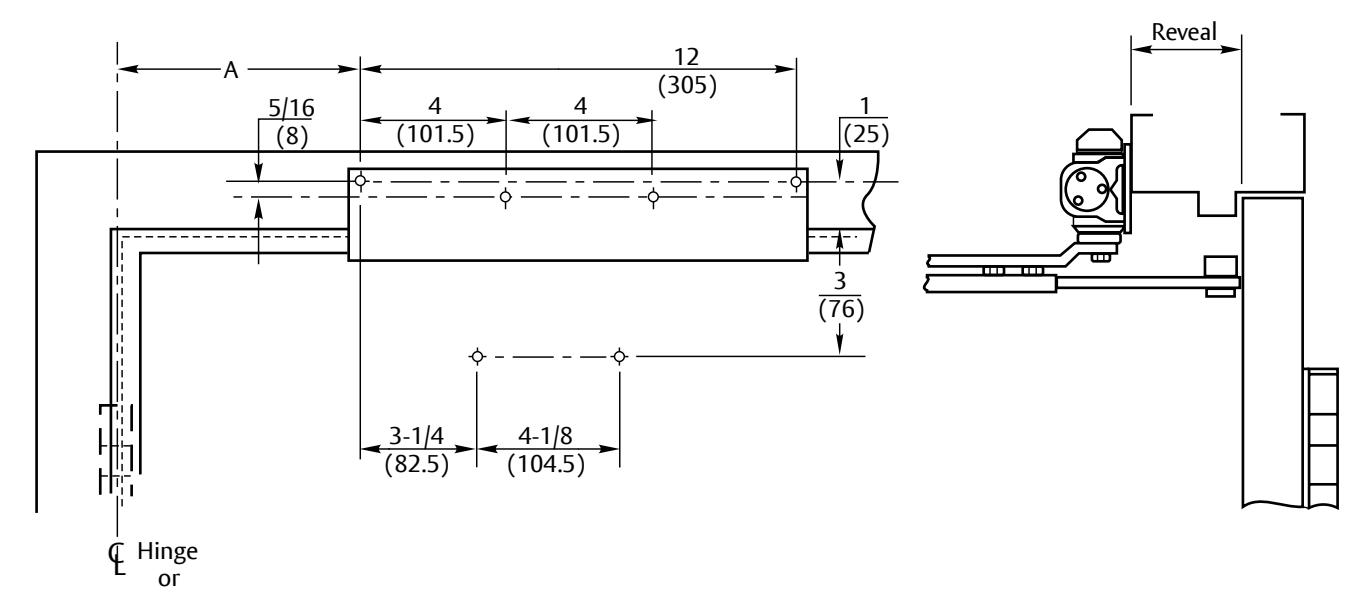

- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm).
- Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- Sex-bolts may be required for wood or plastic faced fire-door mounting.
- Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm).
- UNI-TJ3110, UNI-TJ3310, UNI-TJ3510 Series have a hold open arm feature and are not permitted to be used on fire door assemblies.
| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | |
| Sex Nuts and Bolts | Arm-foot | Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) through | |||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screws |
Closer | Wood | 7/32" (5.5 mm) | |
| 1/4-20 Machine Screw | Metal | drill: #7 (.201") tap: 1/4-20 | ||
|
Through Bolts and
Grommet Nuts |
Optional | All | 9/32" (7.00mm) through 3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer | |
|
Door Opening
Angle |
Dimension "A" | |||
|---|---|---|---|---|
|
Hold
Open ★ |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | |
| 85° | 90° | 10 (254) | 10-3/8 (263.5) | |
| 90° | 95° | 9-3/8 (238) | 9-3/4 (247.5) | |
| 95° | 100° | 8-3/4 (225.5) | 9-1/4 (235) | |
| 100° | 105° | 8-1/4 (209.5) | 8-3/4 (225.5) | |
| 105° | 110° | 7-7/8 (200) | 8-1/4 (209.5) | |
| 110° | 115° | 7-1/2 (190.5) | 7-7/8 (200) | |
Experience a safer and more open world
Pivot
Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
UNI-TJ3100, UNI-TJ3300, UNI-TJ3500 Non Hold Open/Stop Arm UNI-TJ3110, UNI-TJ3310, UNI-TJ3510 Hold Open/Stop Arm
Closer Sizes 1, 1BF, 2, 3, 4, 5 or 6 Top Jamb Drop Application with 3148 Drop Plate
Top Jamb Installation Template 7303-1408 Stop Only or Hold Open Unitro Backcheck or Delayed Action Door Closer
Template Number:
Sheet: 1 of 1 Date: 12/23
