ASSA ABLOY ACCENTRA UNI4400, UNI4410 Parallel UNI Stop Non-Hold Open or Hold Open Arm with 589L_7344-1355
Open the original PDF document
View PDF
| Preparation for Fasteners | |||||||||
| Fasteners | Application | Door or Frame | Drill Sizes | ||||||
| Sex nuts and bolts |
Closer,
drop plate 2022 bracket |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||||
|
Aluminum
or Wood |
3/8" (9.50mm) through | ||||||||
Αll
Notes:
- Do not scale drawing.
- All dimensions shown in inches (mm).
- Left hand door shown.
- Caution: Hollow metal doors require channel or box type reinforcement.
- UNI-1400 and UNI-4410 Series door closers have a hold open arm feature and are not permitted to be used on fire door assemblies.
|
Door Opening
Angle |
Dimensions ★ | ||||||||||
| Hold Dead Stop |
Butts and
Offset Pivots |
Center Pivots | |||||||||
| Dimens | ion A | Dimension B | Dimension A | Dimension B | |||||||
| Inches | mm | Inches | mm | Inches | mm | Inches | mm | ||||
| 85° | 90° | 12-3/4 | 324 | 13 | 330 | 13-3/4 | 349 | 14 | 356 | ||
| 90° | 95° | 12 | 305 | 12-1/4 | 311 | 12-7/8 | 327 | 13-1/8 | 333 | ||
| 95° | 100° | 11-1/2 | 292 | 11-3/4 | 298 | 12-1/4 | 311 | 12-1/2 | 318 | ||
| 100° | 105° | 10-7/8 | 276 | 11-1/8 | 283 | 11-5/8 | 295 | 11-7/8 | 302 | ||
| 105° | 110° | 10-1/2 | 267 | 10-3/4 | 273 | 11-1/8 | 283 | 11-3/8 | 289 | ||
| 110° | 115° | 10 | 254 | 10-1/4 | 260 | 10-3/4 | 273 | 11 | 279 | ||

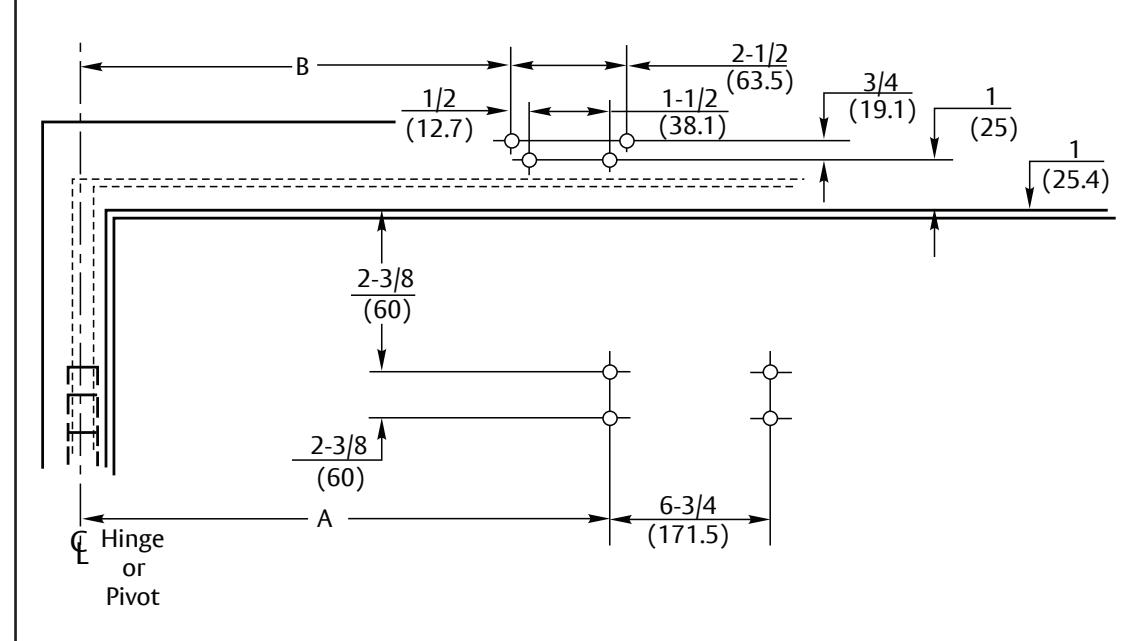

- ★ "A" and "B" dimensions measured from centerline of hinge or pivot.
- ★★ Door must be free to swing up to 5° beyond hold open position.
Experience a safer and more open world
Through bolts and
grommet nuts
Copyright © 2004, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Optional
UNI-400,UNI-4400 Series Non Hold Open/Stop Arm UNI-1400,UNI-4410 Series Hold Open/Stop Arm Closer Sizes 0 Multi-size 1-6 or Sizes 2, 3, 4, 5, or 6 Flush Transom Parallel Arm with 589L Bracket for Door 33"- 41" (0.851.00m) Wide Parallel Arm Installation Template — Flush Partitions Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm)
deep door face opposite to closer
Template Number: 80-7344-1355-010 Sheet: 1 of 1
Date: 01/24
