Installation Instructions

80-9344-1351-010 (06-09)

UNI-4400/4410 (DL) Series UNI-400/1400 (DL) Series

Use these instructions for installing all models of these series on 1-3/4" (45mm) doors hung on 4- 1/2" (114mm) wide hinges or 3/4" (19mm) offset pivots.

DOOR WIDTH determines the location of the closer. Use ONLY the template chart corresponding to your door width.

Use ONLY the dimensions given in each template chart for the door total OPENING angle or the HOLD-OPEN angle desired.

Unitrol® parallel arms are supplied in one of three lengths, according to door width specified on order. To verify that the ARM you have is CORRECT FOR THE DOOR WIDTH, check the number stamped on the arm against the chart below.

DOOR WIDTH	Non-Holder Arm	Hold-Open Arm
28"-32" 0.70-0.80M	6100-11	6100-1
33"-41" 0.85-1.00M	6100-13	6100-3
42"-48" 1.05-1.20M	6100-14	6100-4

Unitrol®

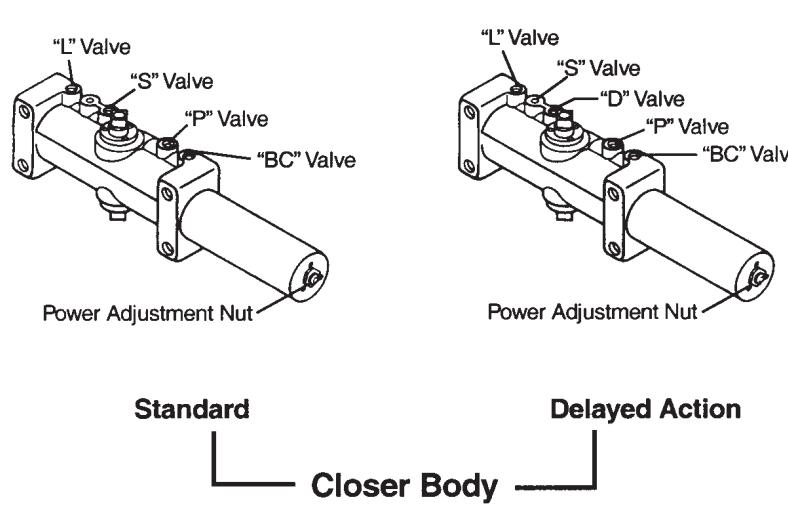

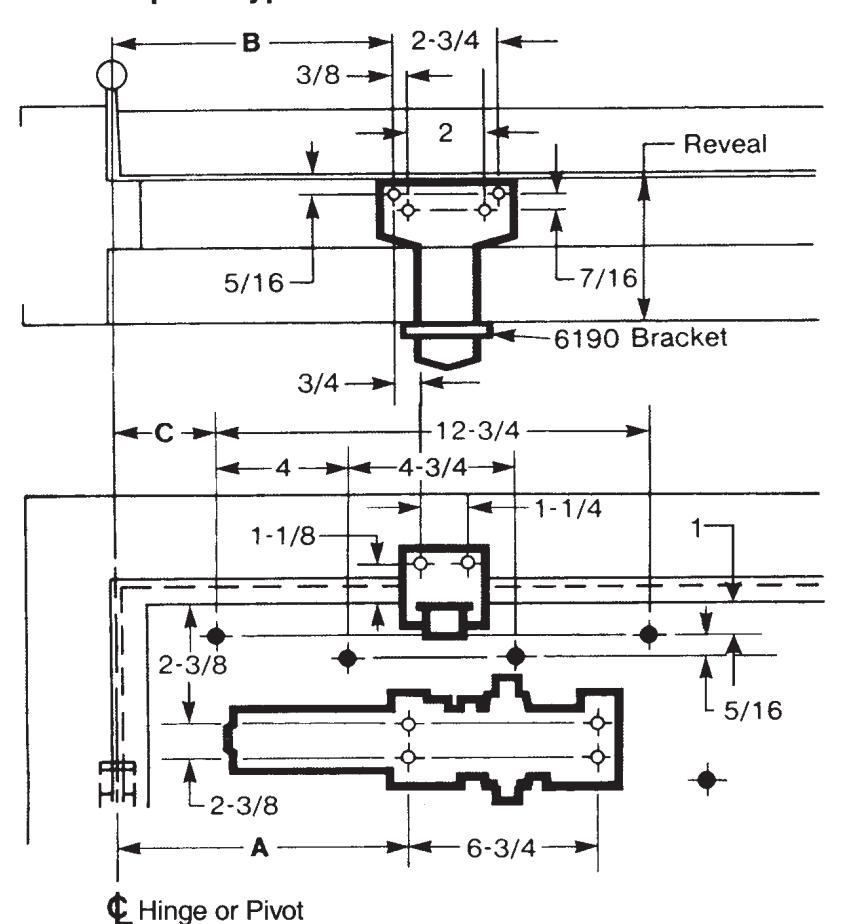

Frame Template for 1-7/8 to 4-5/8 Reveals Door Template Typical for All Installations

DIMENSIONS FOR DOORS 28" TO 32" WIDE
Opening		Dimension	Dimension	Dimension
Hold-Open	Stop	A	B	C
85°	90°	10-1/4	10-1/2	4-1/2
90°	95°	9-5/8	9-7/8	3-7/8
95°	100°	9-1/8	9-3/8	3-3/8
100°	105°	8-3/4	9	3
105°	110°	8-3/8	8-5/8	2-5/8
110°	115°	8	8-1/4	2-1/4

DIMENSIONS FOR DOORS 33" TO 41" WIDE
Opening		Dimension	Dimension	Dimension
Hold-Open	Stop	A	B	C
85°	90°	12-3/4	12-7/8	7
90°	95°	12	12-1/8	6-1/4
95°	100°	11-1/2	11-5/8	5-3/4
100°	105°	10-7/8	11	5-1/8
105°	110°	10-1/2	10-5/8	4-3/4
110°	115°	10	10-1/8	4-1/4

DIMENSIONS FOR DOORS 42" TO 48" WIDE
Opening		Dimension	Dimension	Dimension
Hold-Open	Stop	A	B	C
85°	90°	14-7/8	15-1/8	9-1/8
90°	95°	14	14-1/4	8-1/4
95°	100°	13-3/8	13-5/8	7-5/8
100°	105°	12-3/4	13	7
105°	110°	12-1/4	12-1/2	6-1/2
110°	115°	11-7/8	12-1/8	6-1/8

Template Information

• Door template is typical for all installations.
• Frame template must be selected according to reveal.
  • 1-7/8 to 4-5/8 Frame Reveals (Uses 6190 Bracket).

Frame Template: Page 2

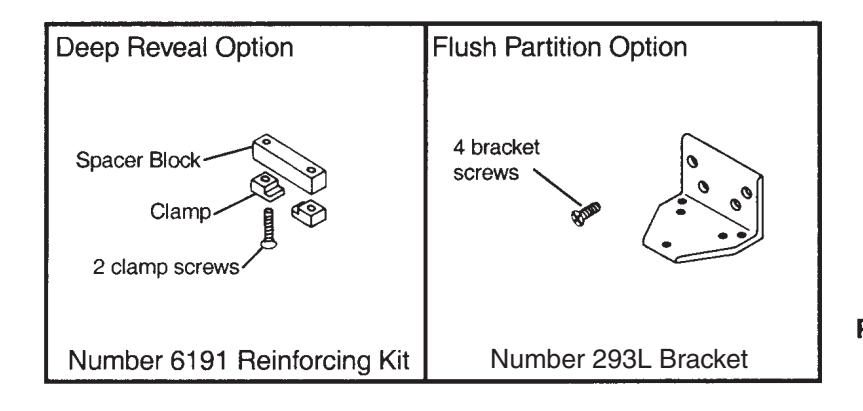

• Frame Reveals Over 4-5/8 (Uses 6191 Clamp Kit).

Frame Template: Page 3

• Flush Partitions (Uses 293L Bracket).

Frame Template: Page 3

• Dimension charts on this page are typical for all templates.
• . Do not scale drawing.
• · Left hand door shown.
• Dimensions are in inches.
• Metric conversion chart below.
• Fastener specifications on Page 3.

								-
inches	mm	inches	mm	inches	mm	inches	mm
5/16	8.0	2-3/4	69.9	8-3/8	213	11-7/8	302
3/8	9.5	3	76	8-5/8	219	12	305
7/16	11.1	3-3/8	86	8-3/4	222	12-1/8	308
1/2	12.7	3-7/8	98.5	9	229	12-1/4	311	ì
3/4	19.1	4	101.6	9-1/8	232	12-1/2	318
1	25	4-1/4	108	9-3/8	238	12-3/4	323.9
1-1/8	29	4-3/8	111	9-5/8	244	12-7/8	327
1-1/4	31.8	4-1/2	114	9-7/8	251	13	330
1-1/2	38.1	4-3/4	120.7	10	254	13-3/8	340	(06-09)
1-3/4	44	5-1/8	130	10-1/8	257	13-5/8	346	g
1-7/8	48	5-3/4	146	10-1/4	260	14	356
2	50.8	6-1/4	159	10-1/2	267	14-1/4	362	1-010
2-1/8	54	6-3/4	171.5	10-5/8	270	14-7/8	378	35.1
2-1/4	57	7	177.8	10-7/8	276	15-1/8	384	4-1
2-3/8	60.5	8	203	11-1/2	292			9344-
2-5/8	67	8-1/4	210	11-5/8	295			ģ

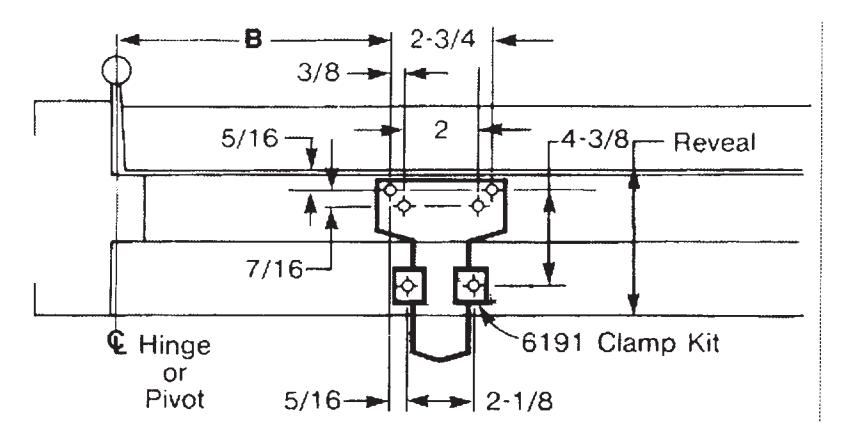

Frame Template for Reveals Over 4-5/8 Door Template on Page 2

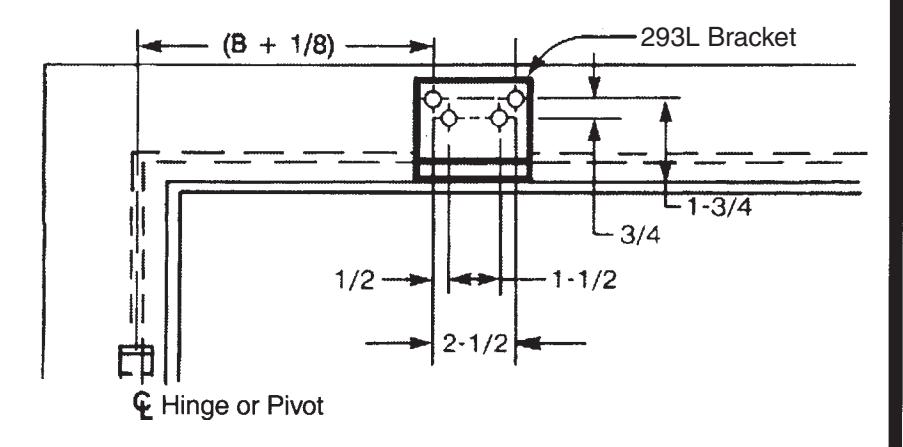

Frame Template for Flush Partitions Door Template on Page 2

Installation Sequence

• Read Front Page.

Installation ground rules and components identification are on this page.

Match hardware to opening.

Follow "Template Information" on Page 2.

· Mark mounting holes location.

Use dimensions for hold-open or door stop angle desired. Mark position of 4 holes on door for closer (or drop plate) and 6 holes on frame for soffit plate (or 4 for 293L angle bracket).

· Prepare holes for fasteners.

See chart below.

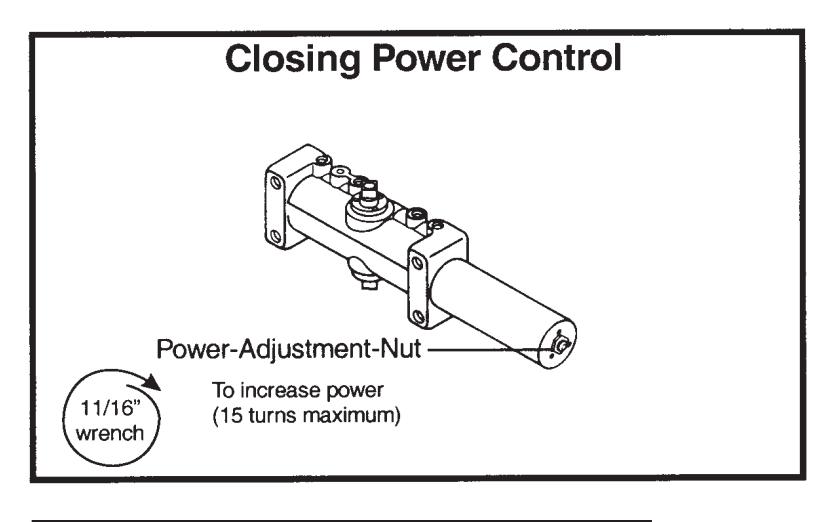

· Set closer average power.

For multi-size closers use "Power Setting" chart on Page 4

· Mount closer to door.

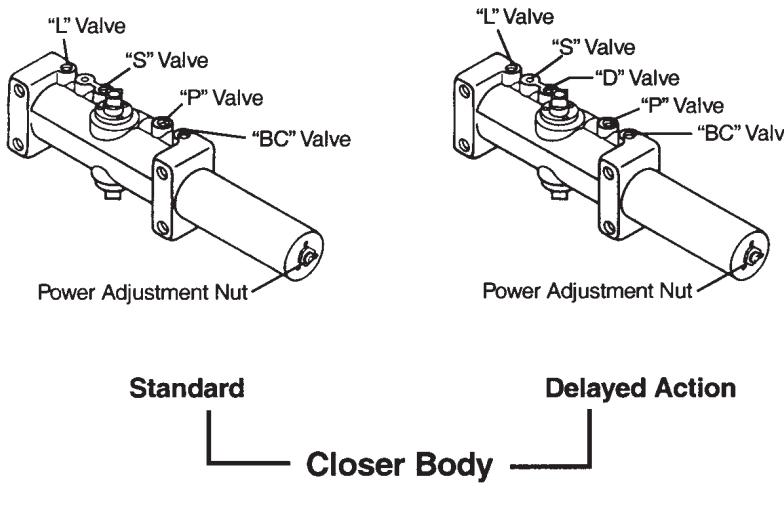

Drop plate first, if used. Place spring tube end toward the hinge edge of the door; closer with valves up for right hand door, with valves down for left hand door.

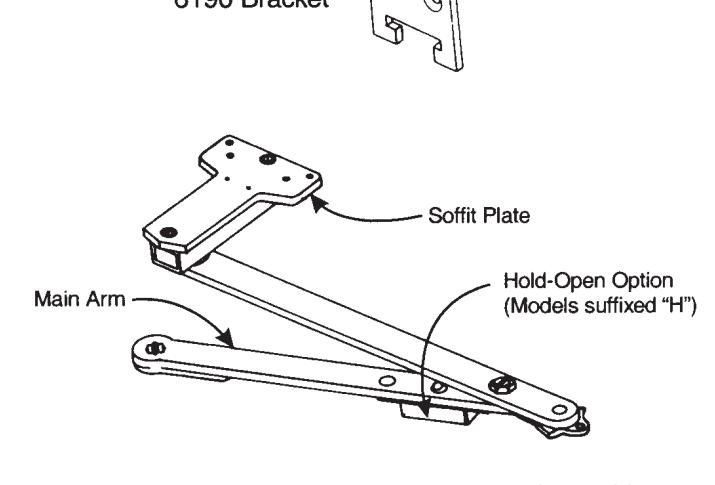

Mount arm to frame.

Fasten soffit plate (or angle bracket if flush partition) to frame. Mount 6190 bracket or 6191 clamps to hold soffit plate flat.

• Install arm on pinion top.

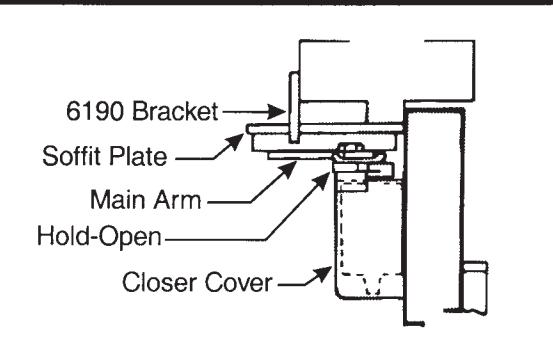

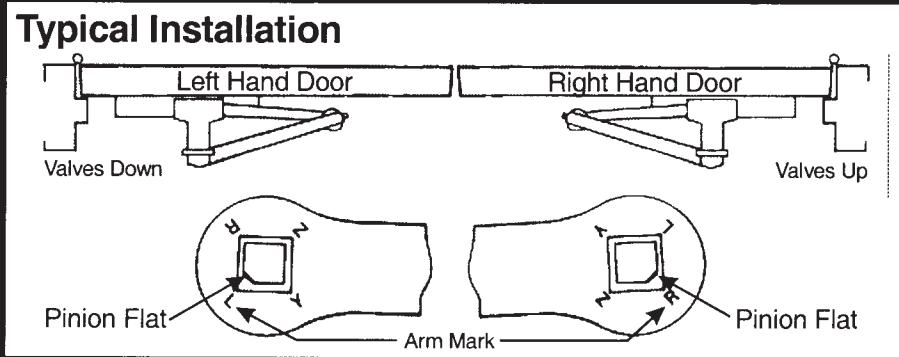

Close valve "S". Rotate pinion over 45° to align main arm letter "R" (right hand) or "L" (left hand) with pinion flat. Fasten with arm screw. See "Typical Installation" figure below.

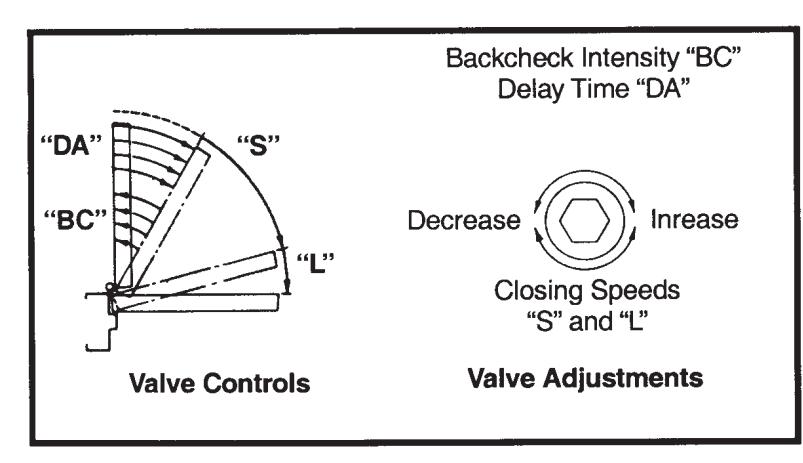

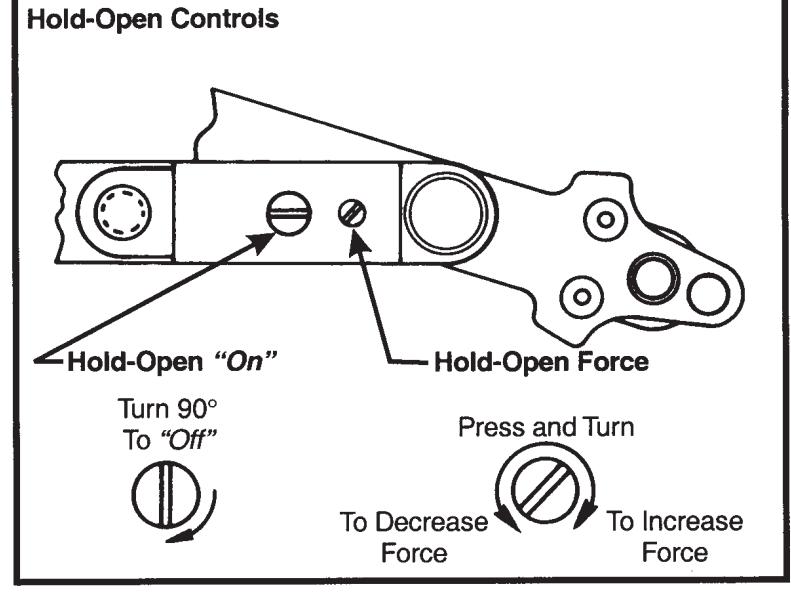

Adjust closer.

See "Unit Adjustment" on page 4.

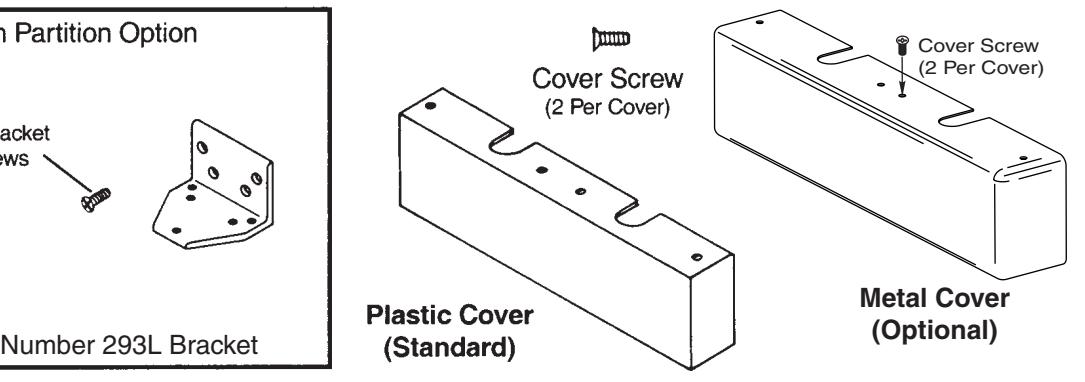

Install cover.

See front page.

Fastener	Frame	Door	Drill
1/4-20 machine screw	metal	none	#7 (.201 dia.) or 5.10mm. drill1/4-20 tap
#14 type "A" sheet metal screw	wood	none	3/16" (4.30mm.)
SNB	none	hollow-metal	9/32" (7.00mm.) thru 3/8" (9.50mm.) door face opposite to closer
		aluminum or wood	3/8" (9.50mm.) thru

Power Setting - Multi size Closers
Door Size		Full turns of closer power adjustment unit
Inches	Series UNI-4400
(M)	Interior Door	Exterior Door
28-32 (0.70-0.80)	1	3
33-41 (0.85-1.00)	6	8
42-48 (1.05-1.20)	9	12
