★ Door must be free to swing 5° beyond hold-open position.
Notes:

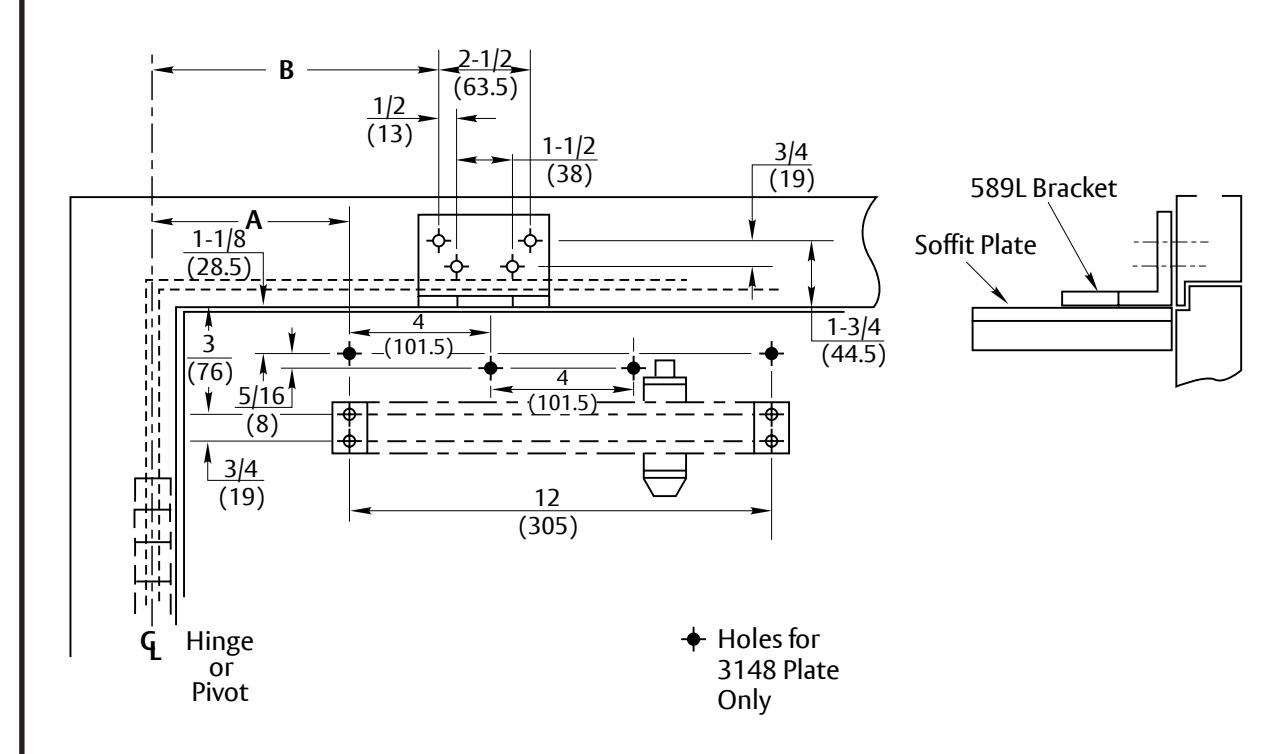

- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm).
- Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- Sex-bolts may be required for wood or plastic faced fire-door mounting.
- Minimum thickness recommended for reinforcement for hollow-metal doors and frames: .1046" (2.66mm).
- UNI-3110, UNI-3310 and UNI-3510 Series have a hold open arm feature and are not permitted to be used on fire door assemblies.
| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | ||||
| Sex nuts and bolts |
Closer
Drop Plate 2022 Bracket |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||
|
Aluminum
or Wood |
3/8" (9.50mm) through | ||||||
| Through bolts and grommet nuts | Optional | All |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
||||
|
Door Opening
Angle |
Dimensions | |||||
|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts and | Offset Pivots | Center Pivots | ||
| '★ | эсор | Α | В | Α | В | |
| 85° | 90° | 9-3/4 (247.5) | 15-1/4 (387.5) | 10-1/8 (257) | 15-5/8 (397) | |
| 90° | 95° | 8-7/8 (225.5) | 14-3/8 (365) | 9-3/8 (238) | 14-7/8 (378) | |
| 95° | 100° | 8-1/4 (209.5) | 13-3/4 (349.5) | 8-5/8 (219) | 14-1/8 (359) | |
| 100° | 105° | 7-5/8 (193.5) | 13-1/8 (333.5) | 8-1/8 (206.5) | 13-5/8 (345) | |
| 105° | 110° | 7-1/8 (181) | 12-5/8 (320.5) | 7-5/8 (193.5) | 13-1/8 (333.5) | |
| 110° | 115° | 6-3/4 (171.5) | 12-1/4 (311) | 7-1/8 (181) | 12-5/8 (320.5) | |
Experience a safer and more open world
Copyright 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
UNI-3100, UNI-3300, UNI-3500 Non Hold Open/Stop Arm UNI-3110, UNI-3310, UNI-3510 Hold Open/Stop Arm Door Closer Sizes 1, 1BF, 2, 3, 4, 5 or 6 Flush Transom Parallel Arm with 589L Bracket Doors 42"– 48" (1.05-1.20m) Wide Parallel Arm Installation Template Flush Partitions Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 3148 Drop Plate
Template Number: 7303-1356 Sheet: 1 of 1
Date: 12/23
