Yale ° Parallel Arm Door Controls

Installation Instructions

80-9303-2208-010 (09-08)

Series UNI 3300/3310 (DL) Series UNI 3500/3510 (DL)

₩ Habitat for Humanity®

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

DOOR WIDTH determines the location of the closer. Use ONLY the template chart corresponding to your door width.

Use ONLY the dimensions given in each template chart for the door total OPENING angle or the HOLD-OPEN angel desired.

NOTE: Use this instruction sheet for installation sequence and closer adjustments only

• It is recommended that the door on which the door closer will be installed be hung on ball bearing hinges. Door must swing freely
• · Door and Frame must be properly reinforced, or use of special fasteners employed, to prevent the mounting screw from pulling out.
• · All dimensions are given in inches with corresponding metric dimensions (mm) in parenthesis.

Template Information

• Door template is typical for all installations.
• Frame template must be selected according to frame reveal:

Inches	mm	Inches	mm	Inches	mm
5/16	7.9	3-1/4	83	8-7/8	225
3/8	9.5	3-5/8	90	9-1/4	235
7/16	11.1	4	101.6	9-3/4	248
1/2	12.7	4-3/8	111	10-1/8	257
3/4	19.1	4-1/2	114	10-3/8	264
1-1/8	29	4-7/8	124	10-1/2	267
1-1/4	31.8	5-1/8	130	11	279
1-1/2	38.1	5-1/4	133	11-1/2	292
1-5/8	41	5-3/4	146	12	305
1-3/4	44	6-1/4	159	12-1/8	308
1-7/8	48	6-3/4 171 12		12-1/2	318
2	50.8	7-1/8 181 12-3/4		324
2-1/8	54	7-1/2	191	13-5/8	346
2-1/2	63.5	7-5/8	194	14-1/4	362
2-3/4	69.9	8-1/8 206 15		15-1/8	384
2-7/8	73	8-1/4	210
3	76	8-1/2	216	, in the second

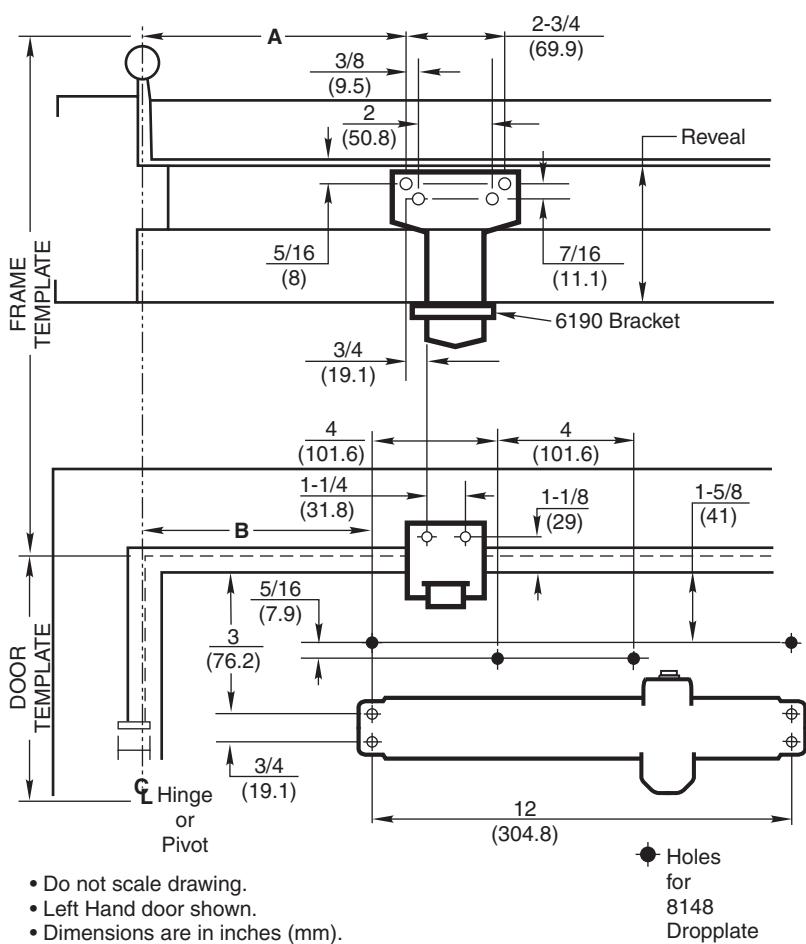

Door Template Typical for All Installations Frame Template for 1-7/8 to 4-5/8 Reveals

	Preparation for Fasteners
Fa	asteners	Door or Frame	Drill-Sizes
	Self-Drilling Screw	Aluminum or Metal	No drill required
Standard		Wood	3/16" (4.30 mm)
	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
Optional	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

Dimensions for Doors 28" to 32" Wide
Opening		Dimension A		Dimension B
Hold Open	Stop	Inches mm. Inches m
85°	90°	10-3/8 264 5-1/8		130
90°	95°	9-3/4 248		4-1/2	114
95°	100°	9-1/4 23		4	102
100°	105°	8-7/8	225	3-5/8	92
105°	110°	8-1/2	216	3-1/4	83
110°	115°	8-1/8	206	2-7/8	73

Dimensions for Doors 33" to 41" Wide
Opening		Dimension A		Dimension B
Hold Open	Stop	Inches	mm.
85°	90°	12-3/4	324	7-1/2	191
90°	95°	12	305	6-3/4	171
95°	100°	11-1/2	292	6-1/4	159
100°	105°	11	279	5-3/4	146
105°	110°	10-1/2	267	5-1/4	133
110°	115°	10-1/8	257	4-7/8	124

Dimensions for Doors 42" to 48" Wide
Opening		Dimension A		Dimension B
Hold Open	Stop	p Inches mm. Inches			mm.
85°	90°	15-1/8	384	9-3/4	248
90°	95°	14-1/4	362	8-7/8	225
95°	100°	13-5/8	346	8-1/4	210
100°	105°	13	330	7-5/8	194
105°	110°	12-1/2	318	7-1/8	181
110°	115°	12-1/8	308	6-3/4	171

Page 2 80-9303-2208-010 (09-08)

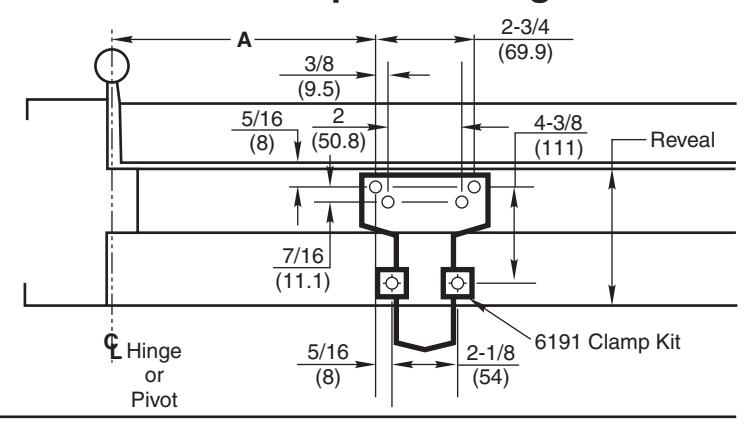

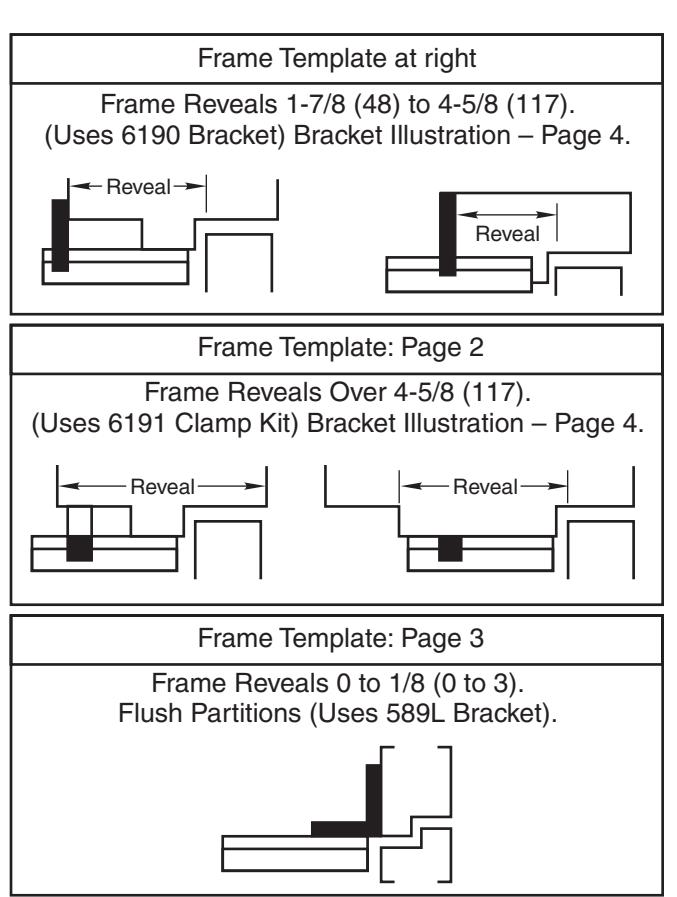

Frame Template for Reveals Over 4-5/8 Door Template on Page 2

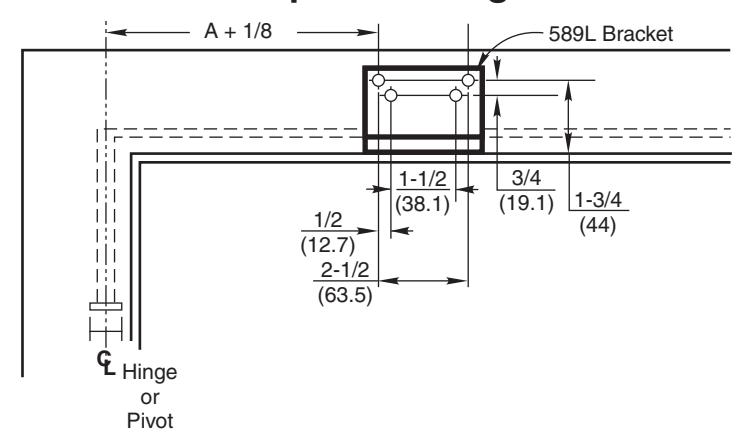

Frame Template for Flush Partitions Door Template on Page 2

Installation Sequence

Read Front Page.

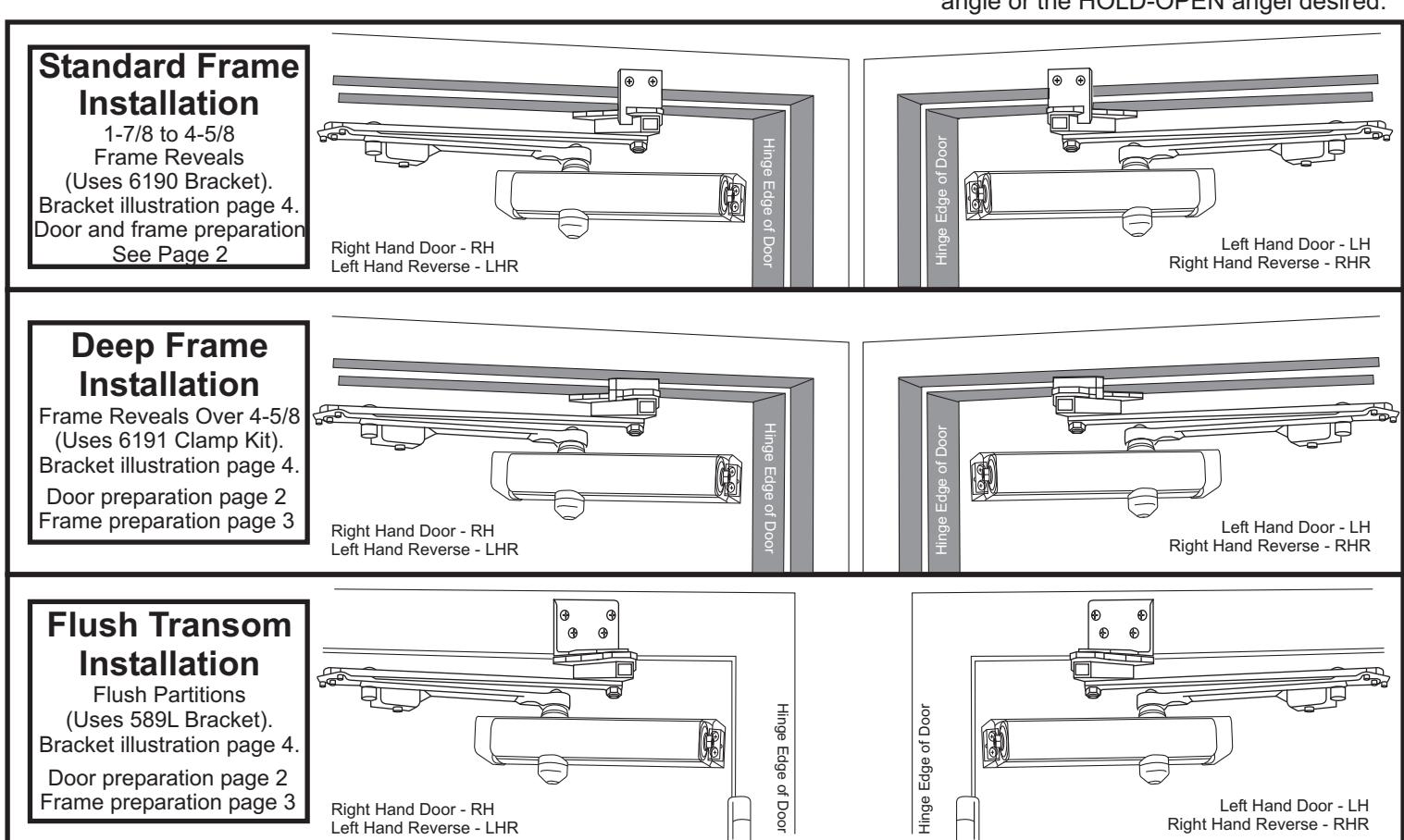

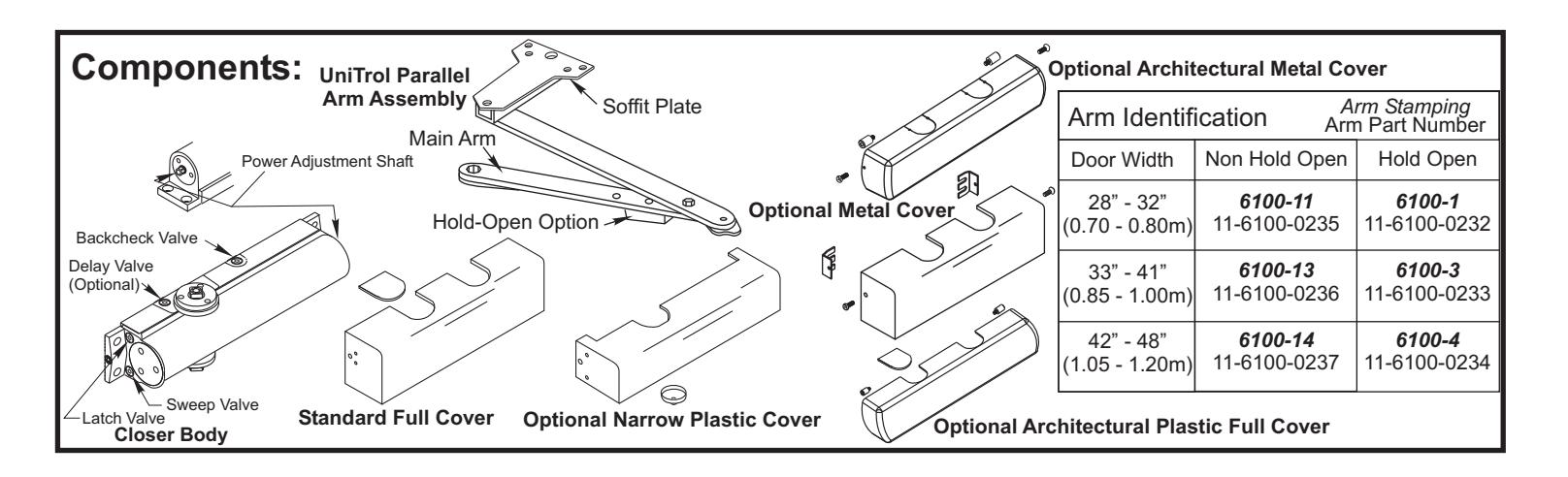

Installations and component identification are on this page. Arm assembly must be correct for width of door, see chart.

• Select Correct Door and Frame Template Combination.

Follow "Template Information" on Page 2 or Pages 2 and 3.

Mark Location of Mounting Holes.

Use dimensions for hold-open or door stop angle desired. Mark position of 4 holes on door for closer (or drop plate) and 6 holes on frame for soffit plate (or 4 for 589L angle bracket).

• Prepare Holes for Fasteners.

See chart on Page 2.

• Set closer average power.

For multi-size closers only, use "Power Setting-Multisize Closers" chart on page 4.

Mount Closer to Door.

Dropplate first, if used. Place end with "S" and "L" valves toward the lock edge of the door. (Slip clips for optional full metal cover under closer feet.)

Mount Arm to Frame.

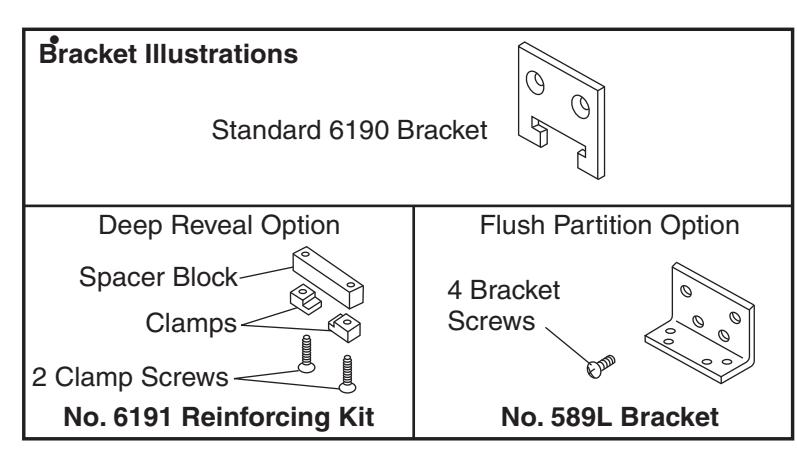

Fasten soffit plate (or 589L angle bracket if flush partition) to frame. Mount 6190 bracket or 6191 clamps to reinforce soffit plate. Or fasten 589L bracket to frame and then soffit plate to 589L.

Install Arm on Pinion Shaft.

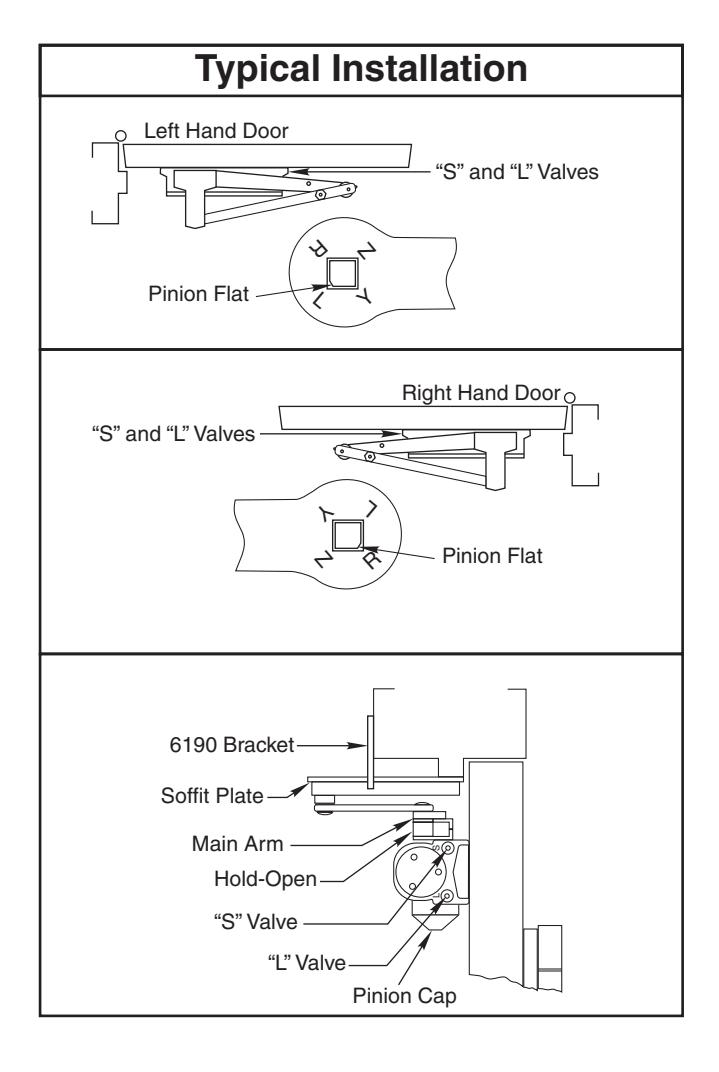

Close valves "S" and "L". Rotate pinion over 45° to align main arm letter "R" (right hand) or "L" (left hand) with pinion flat. Fasten with arm screw. See "Typical Installation" figure above right. Re-open valves "S" and "L".

Adjust Closer.

See "Unit Adjustment" on Page 4.

Install Cover and Pinion Cap (if required).

Full Cover: Slide cover insert into the un-used cutout in cover. Install cover using screws provided.

Narrow Cover: Install cover using screws provided. Screw pinion cap onto shaft by hand or with a phillips screwdriver - DO NOT OVER TIGHTEN.

Full Metal Cover: Fasten cover to mounting clips with screws provided.

Metal Architectural Cover: Remove cover insert where pinion is located. Install standoffs in ends of closer. Install cover using screws provided.

Plastic Architectural Cover: Slide cover insert into the un-used cutout in cover. Install standoffs in ends of closer. Snap cover over standoffs.

Unit Adjustment

CAUTION:

DO NOT BACK VALVES OUT OF CLOSER OR A LEAK WILL RESULT.

NOTE: By law the Americans with Disabilities Act (ADA) may require that door closer installation comply with

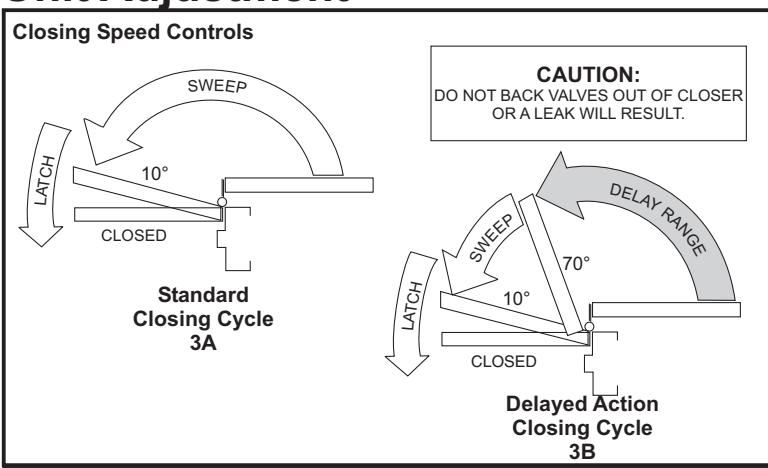

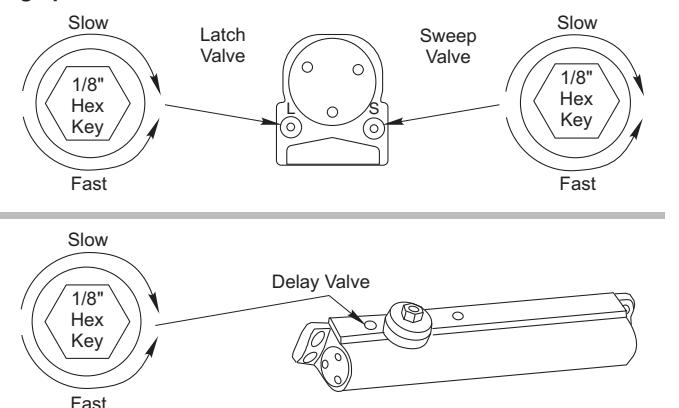

Closing Speed Controls

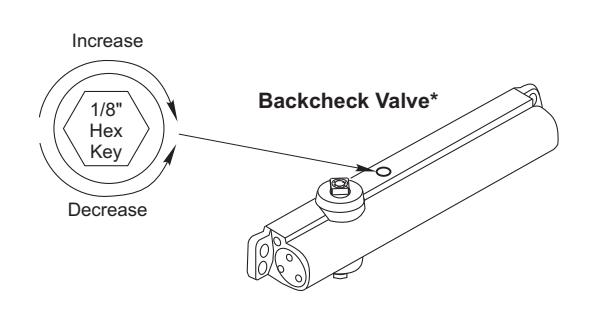

Backcheck Control

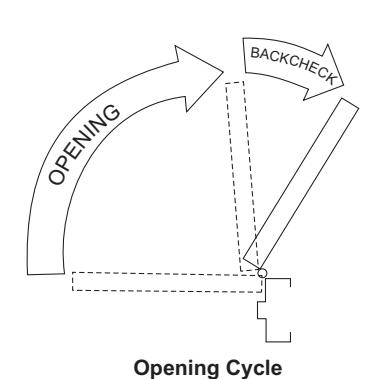

Opening Door Control

* NEVER close this valve completely.

Closing Power Control

Use 5/16" socket or adjustable wrench for adjustment.

To increase power turn Spring Adjustment Shaft clockwise. A total of 20 360° turns of the nut will provide maximum power.

Power Adjustment Chart (for Mulit-Size Closers)

	•		`
	PARALLEL ARM INSTALLATION	*	MAXIMUM DOOR SIZE
DOOR			28-32"	33-41" (0.85-1.00 m)	42-48"	Max # of turns
1			(0.70-0.60 111)	(0.65-1.00 111)	( 1.05-1.20 m)	OI LUITIS
INT	UNI-3301/ UNI-3501	FULL 360° TURNS OF POWER ADJUSTMENT SHAFT	7	10	16	20
EXT			9	12	18	20

*20 -360° TURNS MAXIMUM AVAILABLE

Power Adjustment

Spring Power is controlled by the power adjustment nut at the end of the closer

• UNI-3300 or UNI-3500 Unitrol only is available in power sizes 2-3-4-5 or 6. Each power size can be increased 50%.
• UNI-3301 or UNI-3501 Unitrol only is adjustable through a range of power sizes 2 through 6. See "Power Adjustment" chart to set average power of closer before installation.

Door Holder Option

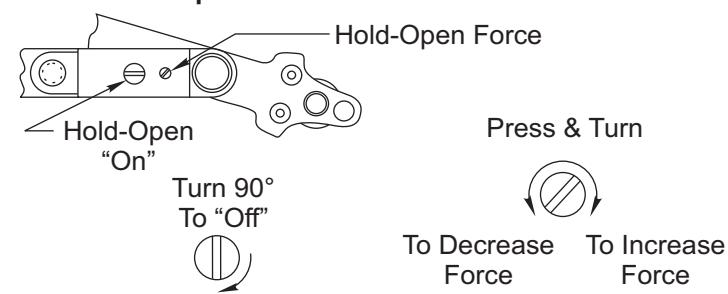

Hold-Open option is found at the arm elbow. To select hold-open "on" or hold-open "off" and to adjust the hold-open force ... use screwdriver as illustrated.
