ASSA ABLOY ACCENTRA UNI1902, 4, UNI1905, 6, UNI1912, 4, UNI1915, 6 Door Closer Parallel UNI Stop Non_7319-1356
Open the original PDF document
View PDFPrinted in U.S.A. 80-7319-1356-010

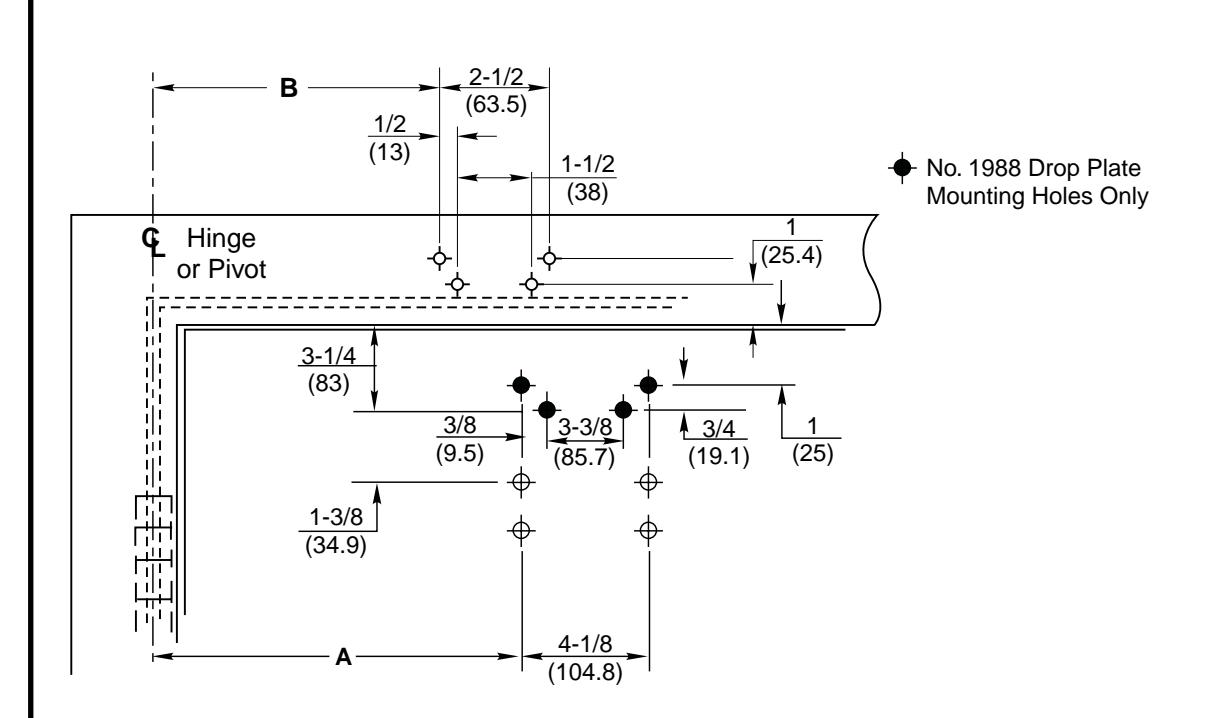

Notes:
- Do not scale drawing.
- Left hand door shown.
- Dimensions are in inches (mm).
- Caution: Hollow-metal doors require channel or box-type reinforcement.
- UNI-1910 Series closers have a hold open arm feature and are not permitted to be used on fire door assemblies.
| Preparation for Fasteners | ||||||
|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | |||
| Sex nuts and bolts |
Closer
Drop Plate 2022 Bracket |
Hollow Metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
|||
|
Aluminum
or Wood |
3/8" (9.50mm) through | |||||
|
Door Opening
Angle |
Dimensions★ | |||||
|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | |||
| ** | Α | В | Α | В | ||
| 85° | 90° | 16-3/8 (416) | 15-3/8 (391) | 17-1/8 (435) | 16-1/8 (410) | |
| 90° | 95° | 15-1/2 (394) | 14-1/2 (368) | 16-1/4 (413) | 15-1/4 (387) | |
| 95° | 100° | 14-3/4 (375) | 13-3/4 (349) | 15-1/2 (394) | 14-1/2 (368) | |
| 100° | 105° | 14-1/8 (359) | 13-1/8 (333) | 14-7/8 (378) | 13-7/8 (352) | |
| 105° | 110° | 13-5/8 (346) | 12-5/8 (321) | 14-3/8 (365) | 13-3/8 (340) | |
| 110° | 115° | 13-1/8 (333) | 12-1/8 (308) | 13-7/8 (352) | 12-7/8 (327) | |
- ★ "A" and "B" dimensions measured from centerline of hinge or pivot.
- ★★ Door must be free to swing 5° beyond hold-open position.
UNI-1900 Series Closer - Non Hold Open/Stop Arm UNI-1910 Series Closer - Hold Open/Stop Arm Flush Transom Parallel Arm with 589L Bracket Doors 42" – 48" (1.05-1.20m) Wide
Parallel Arm Installation Template – Flush Partitions Stop Only or Hold Open Unitrol Door Closer With or Without 1988 Drop Plate
Yale Commercial Locks and Hardware
www.yalecommercial.com
7319-1356
8-99
DATE
