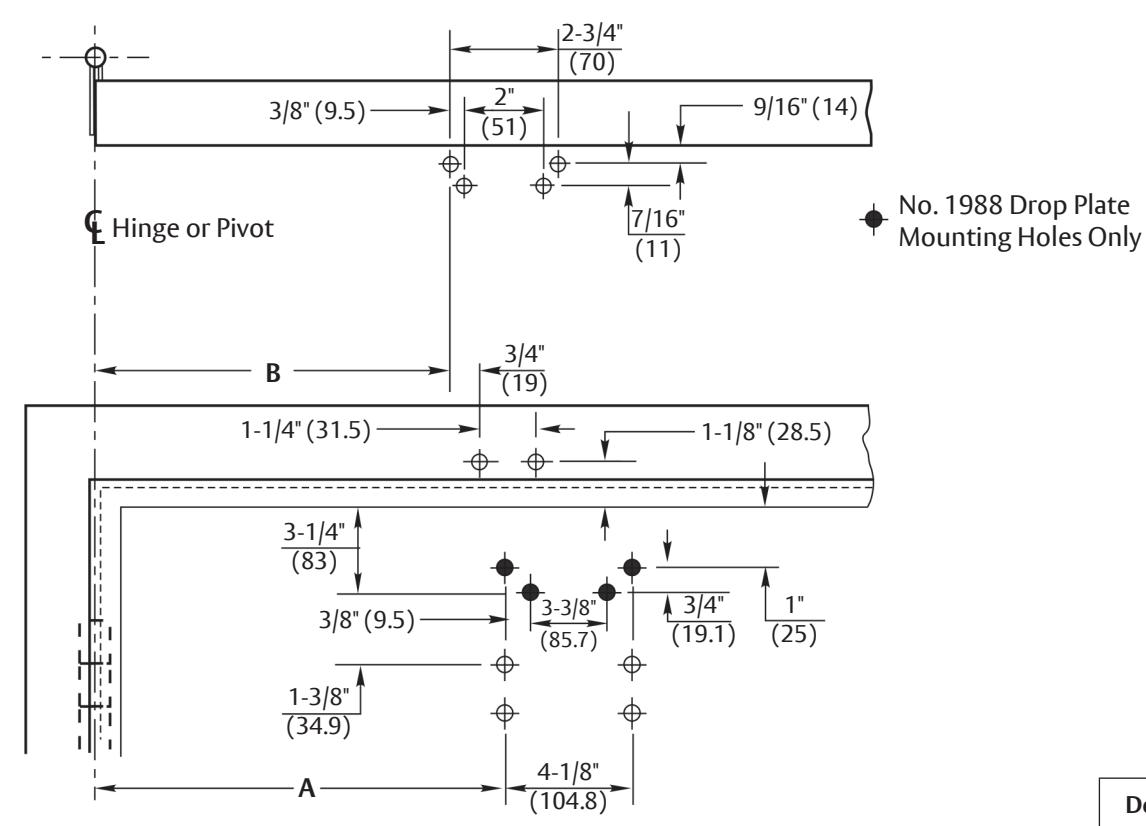

View PDFParallel Arm Installation Template Stop Only or Hold Open Unitrol Door Closer With or Without 1988 Drop Plate
| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners Application | Door or Frame | Drill Sizes | |||||
| Sex Nuts and Bolts |
Closer
Drop Plate |
Hollow
Metal |
9/32" (7.00mm) through 3/8" (9.50mm) door face opposite to closer | ||||
|
Aluminum
or Wood |
3/8" (9.50mm) through | ||||||
|
#14 x 1-1/4" (32mm)
type "A" S.M. screws |
Soffit Plate | Wood | 7/32" (5.5 mm) | ||||
| 1/4-20 Machine Screw |
6190
Bracket |
Metal |
drill: #7 (.201")
tap: 1/4-20 |
||||
|
Through Bolts and
Grommet Nuts |
Optional | All |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer |
||||
Notes:
- . Do not scale drawing
- 2. Left hand door shown.
- Dimensions are in inches (mm).
- 4. CAUTION: Hollow-metal doors require channel or box type reinforcement.
- 5. UNI-1910 Series closers have a hold open arm feature and are not permitted to be used on fire door assemblies.
|
Door Opening
Angle |
Dimensions ★ | ||||||
|---|---|---|---|---|---|---|---|
|
Hold
Open ★★ Dead Stop |
Dead | Butts and O | Offset Pivots | Center Pivots | |||
| Stop | Α | В | Α | В | |||
| 85° | 90° | 11-5/8" (295) | 10-3/8" (263) | 12-3/8" (314) | 11-1/8" (282) | ||
| 90° | 95° | 11" (279) | 9-3/4" (247) | 11-3/4" (298) | 10-1/2" (266) | ||
| 95° | 100° | 10-1/2" (266) | 9-3/8" (238) | 11-1/4" (286) | 10" (254) | ||
| 100° | 105° | 10" (254) | 8-3/4" (222) | 10-3/4" (273) | 9-1/2" (241) | ||
| 105° | 110° | 9-1/2" (241) | 8-1/4" (209) | 10-1/4" (260) | 9" (229) | ||
| 110° | 115° | 9-1/8" (231) | 7-7/8" (200) | 9-7/8" (251) | 8-5/8" (219) | ||
- ★"A" and "B" dimensions measured from centerline of hinge or pivot.
- ★ ★Door must be free to swing 5° beyond hold-open position.
Experience a safer and more open world
Copyright © 1999, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

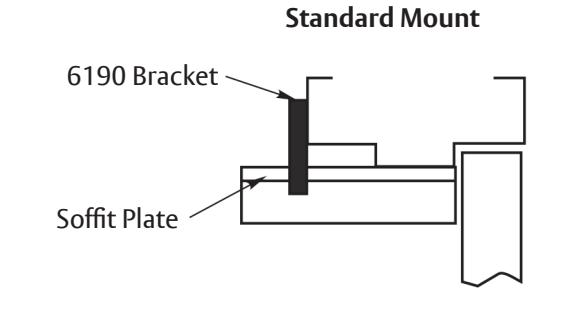

UNI-1900 Series Closer - Non Hold Open/Stop Arm UNI-1910 Series Closer - Hold Open/Stop Arm Parallel Arm Application with 6190 Bracket Doors 28"-32" (0.70-0.80m) Wide
Template Number: 7319-1351 Sheet: 1 of 1
Date: 12/23
