ASSA ABLOY ACCENTRA UNI-150BC, UNI-151 PA x 6190 Bkt, 214 Drop Plate Optional Door Width 28-32_7350-2354

Printed in U.S.A. 80-7350-2354-010

6190 Bracket

Unitrol Soffit Plate

Notes: • Do not scale drawing.

★ Door must be free to swing 5° beyond hold- open position.

• All dimensions shown in inches.
• Left hand door shown.
• Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• Sex-bolts may be required for wood or plastic faced fire door
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm).
• UNI-150 Series have a hold open arm feature and are not permitted to be used on fire door assemblies.

Opening		D'an A	D'as D	D: 0
Hold Open ★	Stop	Dim. A	Dim. B	Dim. C
85°	90°	10-1/2 (266.5)	8-5/8 (219)	9-5/8 (244.5)
90°	95°	9-3/4 (247.5)	8 (203)	9 (228.5)
95°	100°	9-1/4 (235)	7-1/2 (190.5)	8-1/2 (215.5)
100°	105°	8-7/8 (225)	7-1/8 (181)	8-1/8 (206)
105°	110°	8-1/2 (215.5)	6-3/4 (171.5)	7-3/4 (196.5)
110°	115°	8-1/8 (206)	6-3/8 (162)	7-3/8 (187)

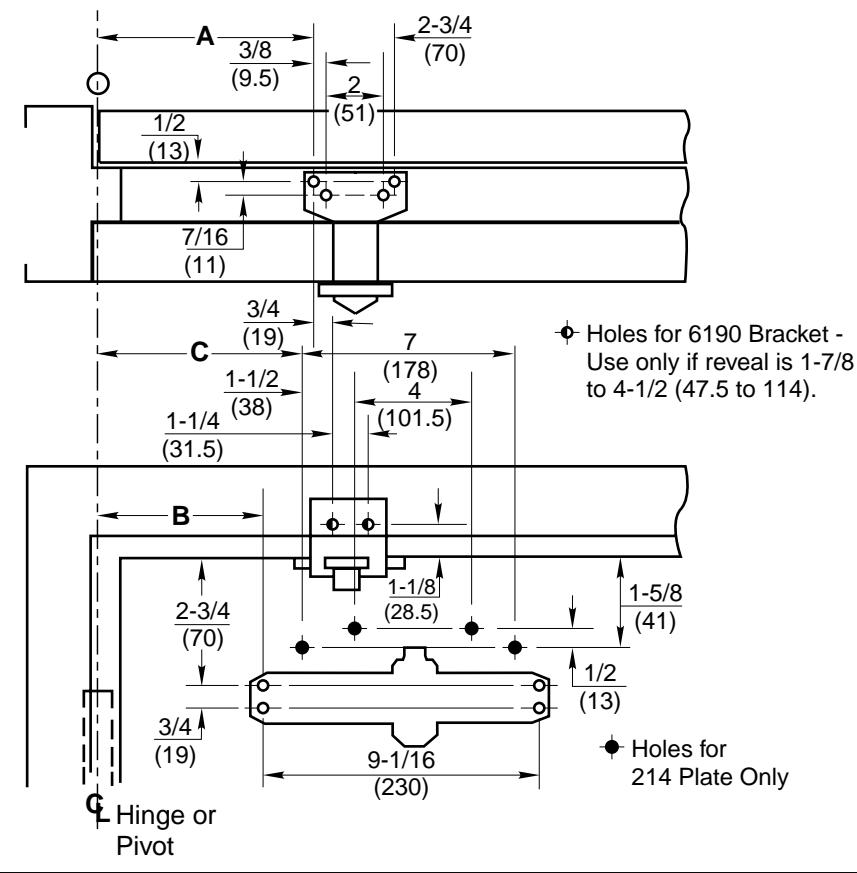

0	Top View Typical Installation
	Left Hand Door Right Hand Door
	"S" and "L" Valves
	$\backslash triangle$ Pinion Flat Pinion Flat $\backslash triangle$

Fasteners	Frame	Door	Drill Sizes
1/4-20 machine screw metal		none	#7 (.201" dia.) or 5.10mm drill 1/4-20 tap
#14 type "A" sheet wood metal screw		none	7/32" (5.5mm)
SNB	none	hollow-metal	9/32" (7.00mm) through 3/8" (9.50mm) door face opposite to closer
		aluminum or wood	3/8" (9.50mm) through

UNI-50 Series Closer – Non Hold Open/Stop Arm UNI-150 Series Closer - Hold Open/Stop Arm Door Closer Sizes 1, 1BF, 2, 3, 4, 5, or 6 Parallel Arm Application with 6190 Bracket Doors 28" - 32" (0.70 - 0.80m) Wide

Parallel Arm Installation Template Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 214 Drop Plate

Yale ®

Yale Commercial Locks and Hardware

www.valecommercial.com

TEMPLATE NUMBER 7350-2354

DATE 6-99
