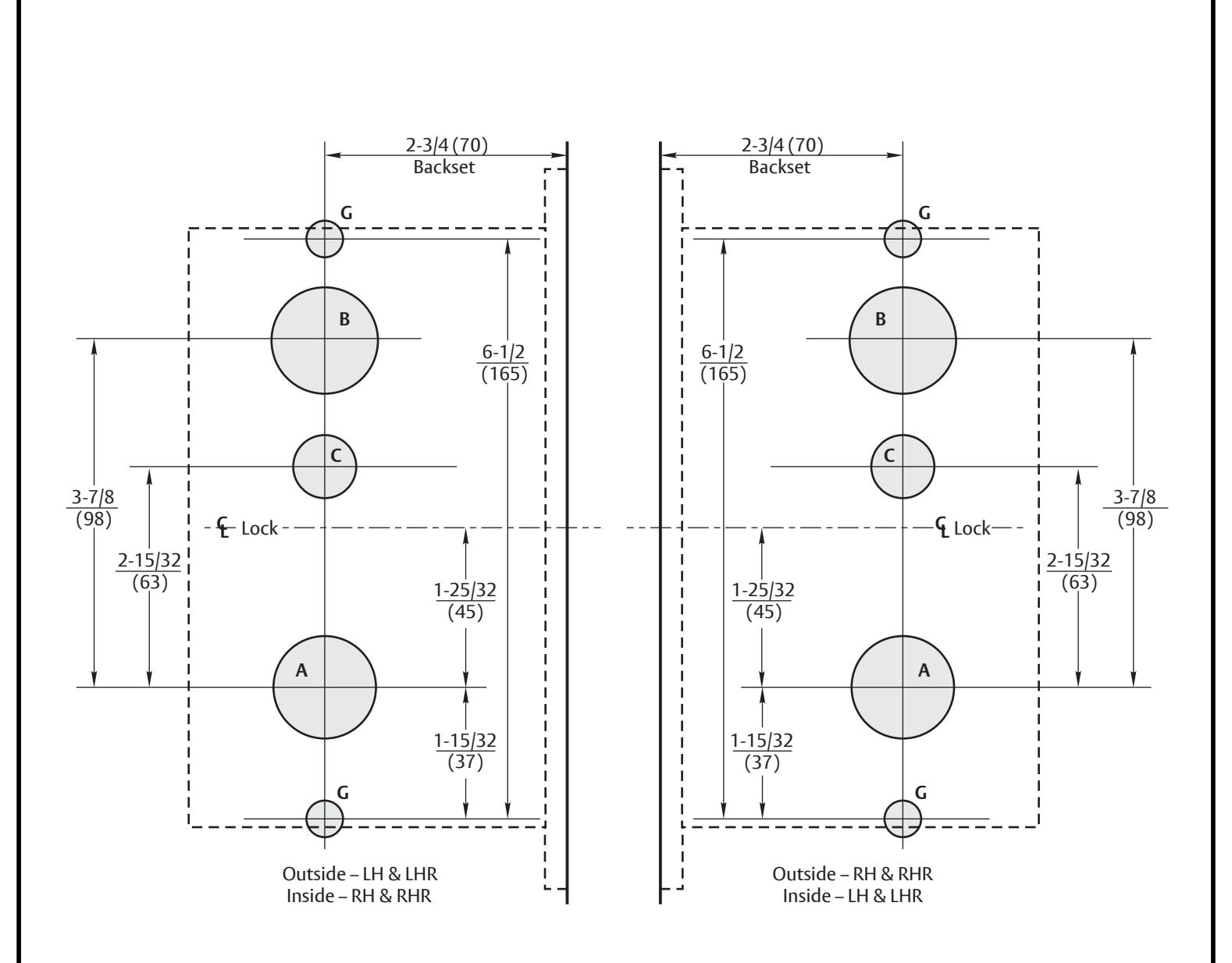

Hole Chart
Hole	Size		Used F or:
Α	FL/RL	1-1/8 (29) Dia.	Lever/Knob
	SL	1-7/8 (48) Dia.	Lever
В	1-1/4 (	32) Dia.	Cylinder
С	5/8 (16) Dia.		Thumbturn, Emergency Key, or Indicator
G	1/2 (13) Dia.		Escutcheon Plate Thru Bolts

Notes:

• 1. All dimensions given in inches (mm).
• 2. Do Not Scale.
• 3. For VN Escutcheon Indicator Trim (V-Series), see template 7088-1005.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

8800 Series Mortise Locks Wood and H.M. Door Preparation Thru Bolted Escutcheon Plate Trim

ASSA ABLOY

SUPERSEDES	08/2	3	DO NOT SCALE DRAWING
TEMPLATE NUMBER 7086	5-120	1	SHEETS 1 of 2	DATE	11-23

Lock Function	HOLES IN DOOR
8800	Outside	Inside
8801, 8870DT, 8871DT 8872DT, 8880, 8881,8884 8885, 836A & B, 838A & B	A, G	A, G
8802, 8862, 8865	A, C, G	A, C, G
8805, 8807, 8808, 8824 8831, 8890, 8891	A, B, G	A, G
8808-2, 8811-2, 8812-2 8817-2, 8818-2, 8830-2 8860-2, 8894-2, 8895-2 8896-2, 8897-2, 8898-2 8899-2	A, B, G	A, B, G
8820, 8827, 8864	A, B, C, G	A, C, G
8809, 8822, 8832, 8840 8847, 8860, 8861, 8867 8896, 8897, 8898, 8899	A, B, G	A, C, G
8833	B, G	A, G
8833, 8814-2	B,G	B,G
8834, 8834-2	B,G	A, B,G
8813ST, 8815	B, G	C, G
8823, 8829	A, B, G	G
8813ST-2	B,G	B, C, G
8814	B, G	G
8828	G	A, G
8835	G	A, C, G

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

8800 Series Mortise Locks Wood and H.M. Door Preparation Thru Bolted Escutcheon Plate Trim

ASSA ABLOY

SUPERSEDES	08/	23	DO NOT SCALE DRAWING
TEMPLATE NUMBER 7086-1201		SHEETS 2 of 2	DATE	11-23
