View PDFDO NOT SCALE

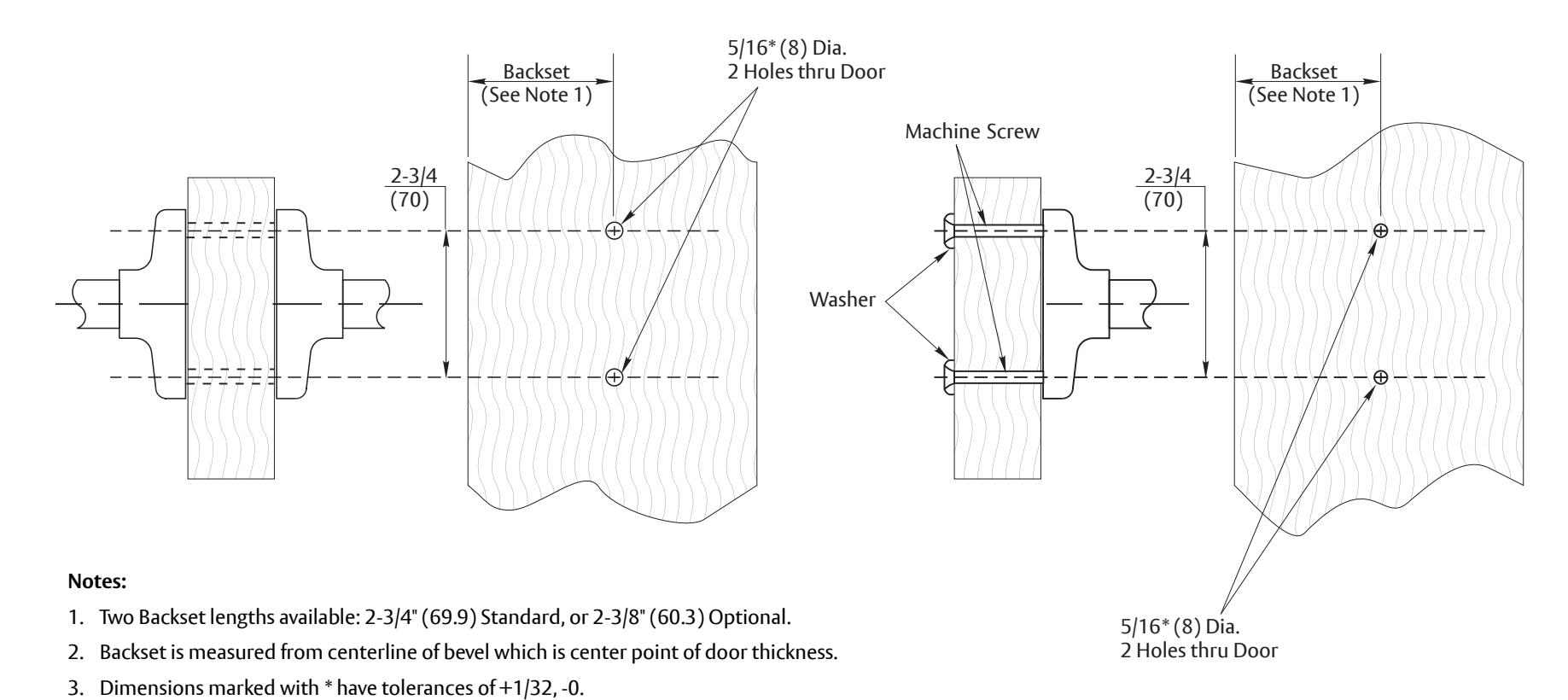

355LN-D or 455LN-D – Full Dummy Trim Through Bolted 355LN or 455LN – Half Dummy Trim Through Bolted
Copyright © 2004, 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
4. All dimensions given in inches (mm).
5. 5300LN rose shown for illustration purposes only.
5300LN or 5400LN Series Lever Handle Cylindrical Locks Through Bolted Dummy Trim Door Preparation 2-3/4" and Optional Backsets
Template Number: 7150-0068
Date: 12/23 Sheet: 1 of 1
1-855-557-5078 www.assaabloy.com
