ASSA ABLOY ACCENTRA Through Bolted Dummy Trim for 4700LN Series Cylindrical Locks 2-3, 4 and Optional Backsets T…_7150-0113

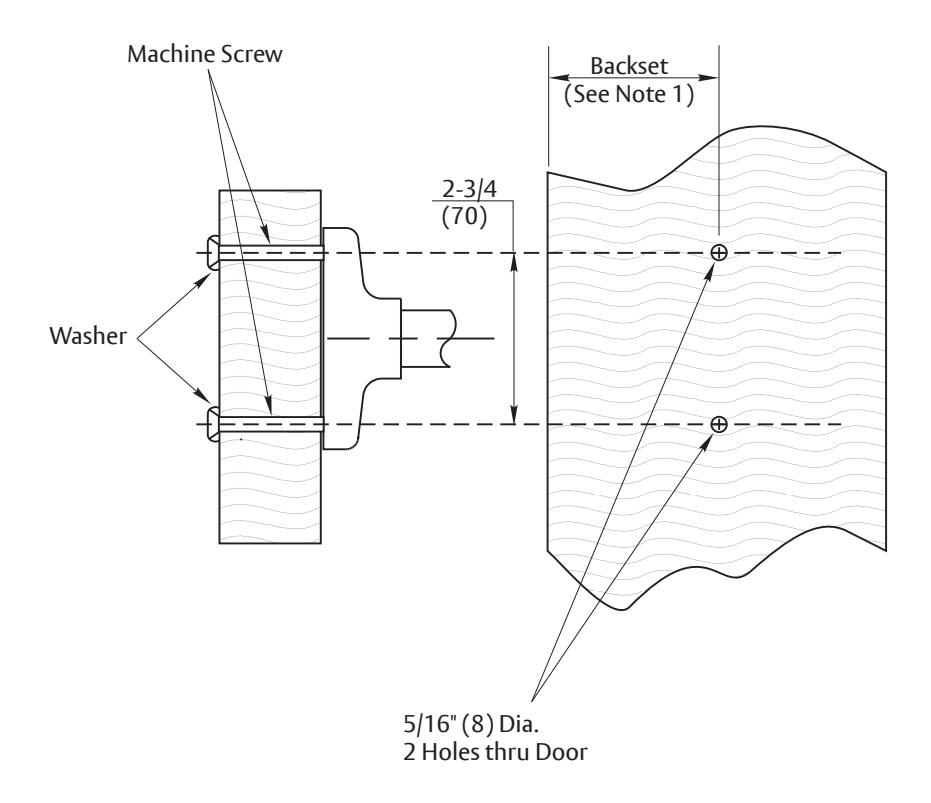

4755LN – Half Dummy Trim Through Bolted

Notes:

• 1. Two Backset lengths available: 2-3/4" (70) Standard, or 2-3/8" (60) Optional.
• 2. Backset is measured from centerline of bevel which is center point of door thickness.
• 3. Dimensions marked with * have tolerances of +1/32, -0.
• 4. All dimensions given in inches (mm).

DO NOT SCALE

Copyright © 2010, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

4700LN Series Lever Handle Cylindrical Locks Through Bolted Dummy Trim Door Preparation 2-3/4" and Optional Backsets Date: 12/23

Template Number: 7150-0113

Sheet: 1 of 1
