ASSA ABLOY ACCENTRA Through Bolted Dummy Trim for 4300 and 4300LN Series Cylindrical Locks 2-3, 4_7150-0088

Notes:

• 1. Two Backset lengths available: 2-3/4" (69.9) Standard, or 2-3/8" (60.3) Optional.
• 2. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 3. Dimensions given in inches and (mm)

Experience a safer and more open world

Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

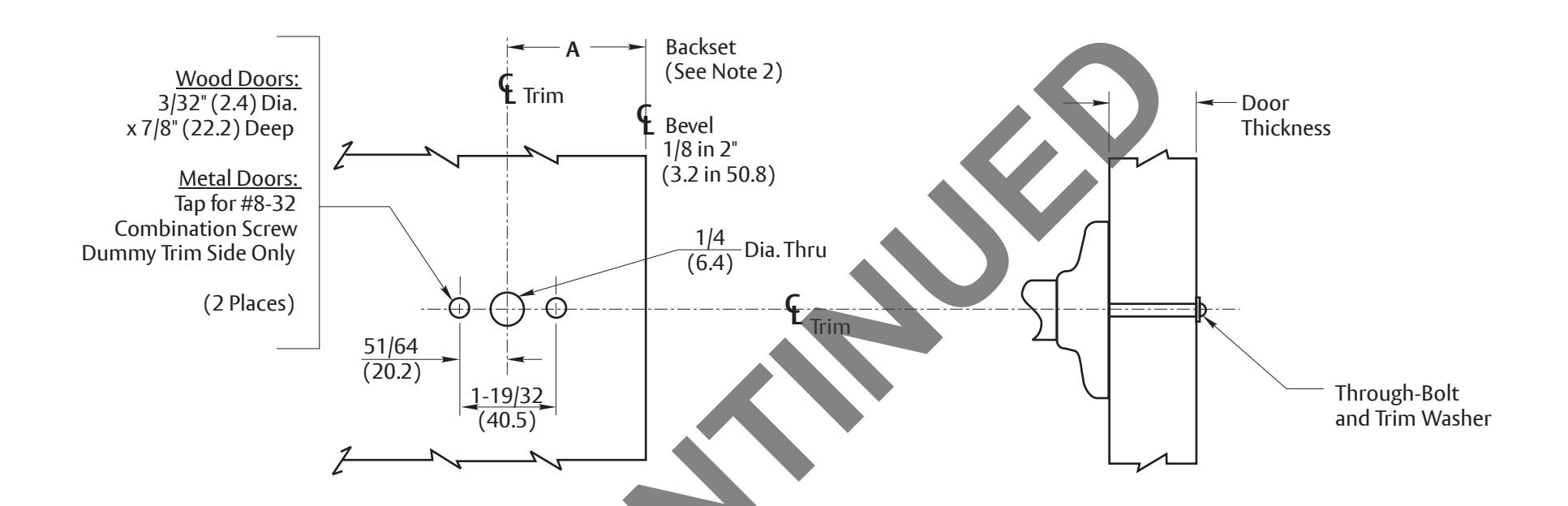

4300/4300LN Series Cylindrical Locks Through Bolted Dummy Trim Door Preparation H.M. &Wood Door Preparations 2-3/4" and Optional Backsets

Template Number: 7150-0088

Sheet: 1 of 1

Date: 12/23
