ASSA ABLOY ACCENTRA (TJ)5110, (TJ)5110BC, 5146 or 5157 Plate Template_7351-0057
Open the original PDF document
View PDF

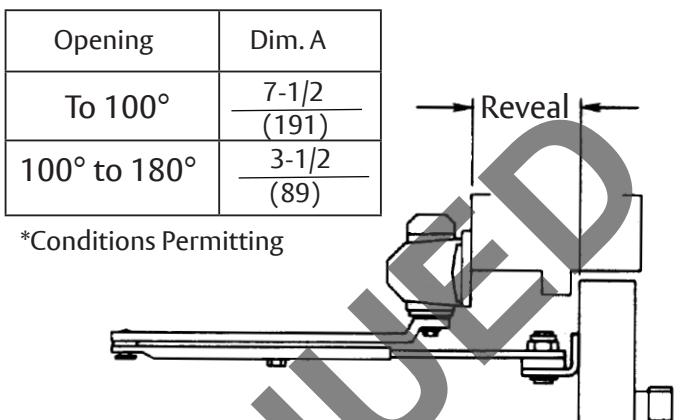

Top View Typical Installation
inion Index Mark
-Nut up
Right Hand Door
Preload
"1" and "2"
Valves
| Reveal Range |
|
5110BC Series
0 to 4-7/8 (0) to (123) |
|
TJ511BC Series
4-7/8 to 6-7/8 (123) to (174) |
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm) unless otherwise noted.
- 4. Door swing may be limited by color, frame wall or hardware conditions.
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 6. Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | |||
|---|---|---|---|
|
Type of
Fastener |
Door or
Frame |
Preparation | |
|
#14 type "A"
Sheet Metal Screw |
Wood | 7/32" (5.5mm) | |
|
1/4-20
Machine Screw |
Hollow
Metal |
#7 (.201" dia.) or 5.10mm
drill - 1/4-20 tap |
|
|
SNB
(Sex nut and bolt) (Optional) |
Hollow
Metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face Opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | ||
|
TBGN
(Thru bolt and grommet nut) (Optional) |
All |
9/32" (7.00mm) thru
3/8" (9.50mm) dia. 3/8" (10mm) deep, door Face opposite to closer |
|
Experience a safer and more open world
Copyright © 1997, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Preload
Left Hand Door
"1" and "2"
Valves

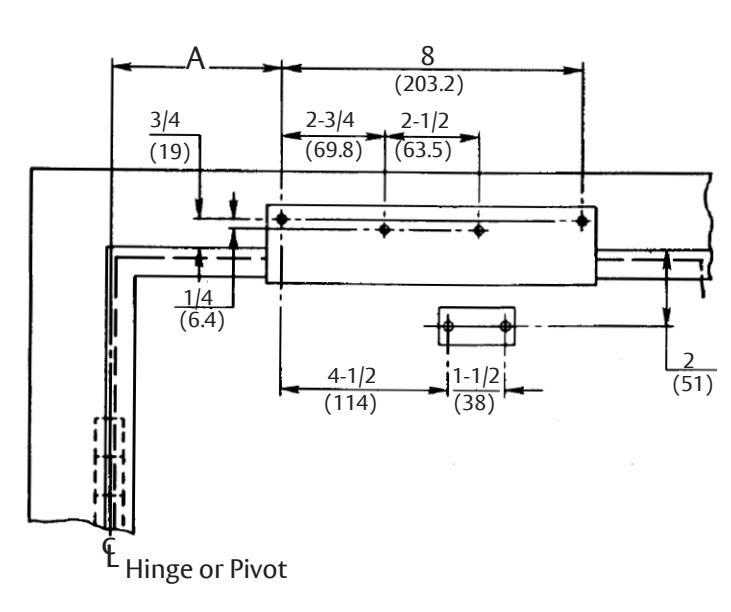

(TJ)5110 or (TJ)5110BC Series Door Closers Door and Frame Preparation Template Top Jamb Hold Open Arm Drop Application with 5146 or 5157 Drop Plate
Template Number: 7351-0057 Sheet: 1 of 1
Date: 01/24
