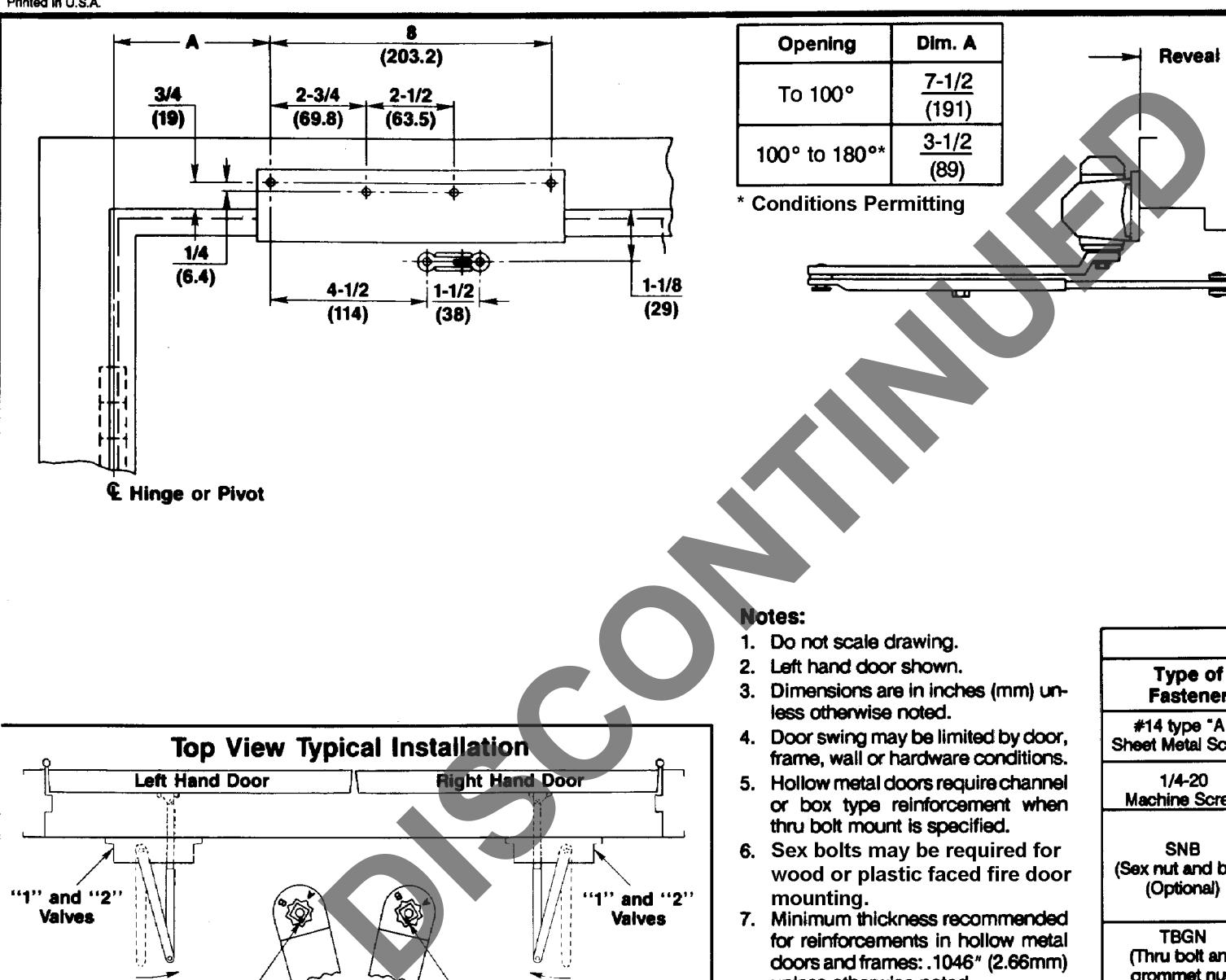

ASSA ABLOY ACCENTRA (TJ)5100, TJ5100BC x Drop Plate Application Template_7351-0056
Open the original PDF document
View PDF

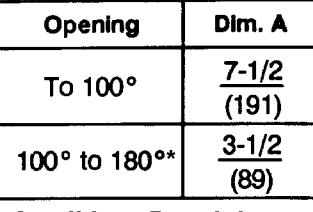

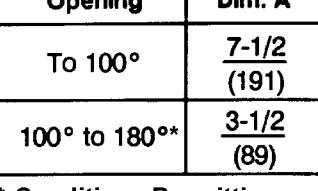

| Preparation for Fasteners | ||
|---|---|---|
|
Type of
Fastener |
Door or
Frame |
Preparation |
|
#14 type "A"
Sheet Metal Screw |
Wood | 7/32" (5.5mm) |
|
1/4-20
Machine Screw |
Hollow
Metal |
#7 (.201" dia.) or 5.10mm
drill - 1/4-20 tap |
|
SNB
(Sex nut and bolt) (Optional) |
Hollow
Meta! |
9/32" (7.00mm) thru
3/8" (9.50mm) door face Opposite to closer |
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |
|
TBGN
(Thru bolt and grommet nut) (Optional) |
All |
9/32" (7.00mm) thru
3/8" (9.50mm) dia. 3/8" (10mm) deep, door face opposite to closer |
