ASSA ABLOY ACCENTRA TJ4400, TJL4400, TJS4400 Door Closer Top Jamb Non-Hold Open Arm with 487 Plate_7344-0152

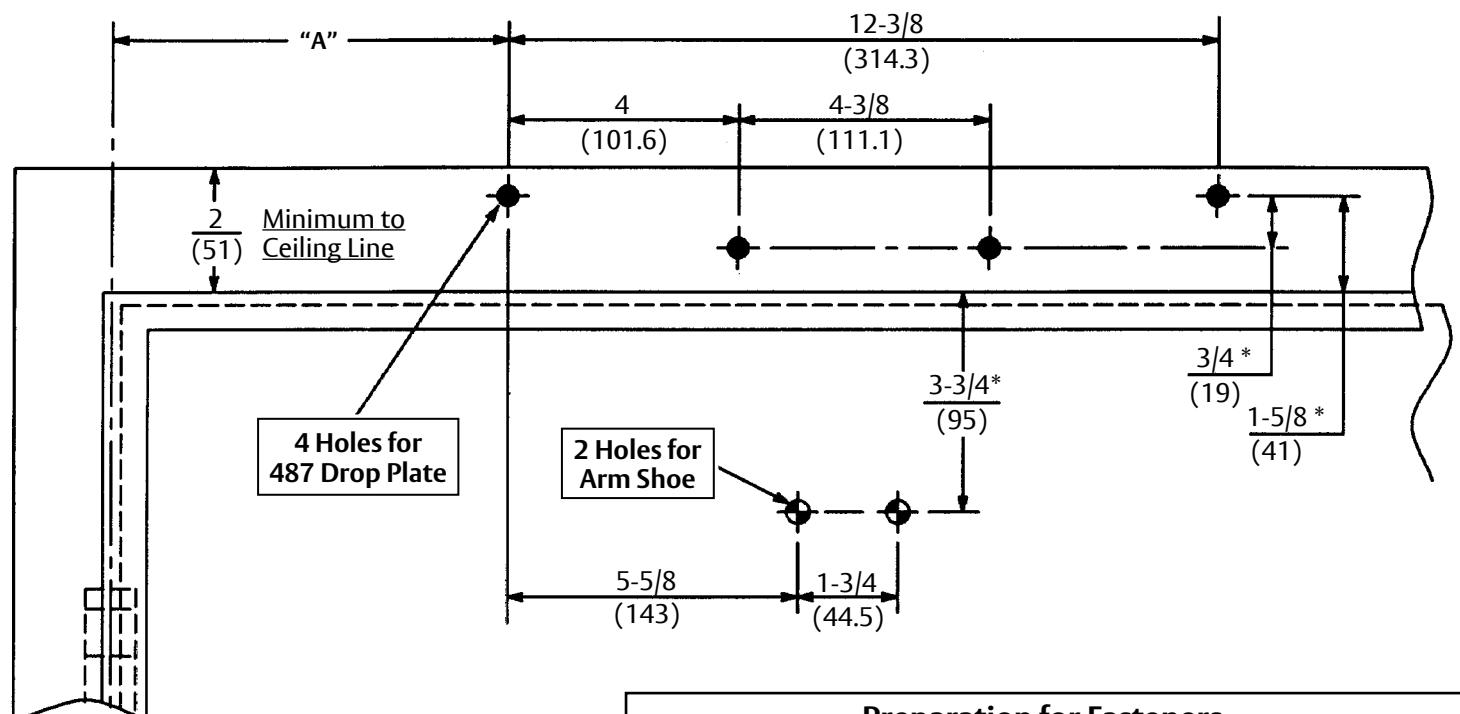

Opening	Dim. "A"
To 100°	7-5/8 (194)
100° to 120°	6-5/8 (168)
120° to 150°	4-5/8 (117)
150° to 180°	4-1/8 (105)

This template covers the following series of door closers:

400	4400
TJ400	TJ4400
TJĹ400	TJĹ4400
TJS400	TJS4400

Caution: Door swing may be limited by door, frame, wall or hardware conditions.

Preparation for Fasteners Door or Drill Sizes Fasteners Frame #14 type "A" Wood S.M. Screw 7/32" (5.5mm) Arm: 1-1/4" (32mm) Aluminum Closer: 2-3/4" (70mm) drill: #7 (.201") 1/4-20 machine screw Metal tap: 1/4-20 9/32" (7.00mm) thru; Hollow 3/8" (9.50mm) on door or Sex nuts and bolts Metal transom face opposite to closer Optional Aluminum 3/8" (9.50mm) thru or Wood 9/32" (7.00mm) thru: 3/8" (9.50mm) dia. x Thru bolts and Αll 3/8" (10mm) deep on door or grommet nuts transom face opposite to closer

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.

C Hinge or Pivot

• 5. Sex bolts may be required for wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group. Inc. is prohibited.

(TJ), (TJL), (TJS) 400 Series Door Closers - Sized 2 thru 6 (TJ), (TJL), (TJS) 4400 Series Door Closers -Multi-Size 1 to 6

Top Jamb Non-Hold Open Arm with 487 Drop Plate Drop Application for 2" (51) Ceiling Clearance or O.H. Holder Clearance

Template Number: 7344-0152 Sheet: 1 of 1

Date: 12/23

ASSA ABLOY

1-855-557-5078 www.assaabloy.com

^* Always use frame or transom rabbet as reference plane, not bottom of stop.
