ASSA ABLOY ACCENTRA TJ3381, TJ 3581 Door Closer Top Jamb Non-Hold Open Low Profile Arm with 3146_7303-0161

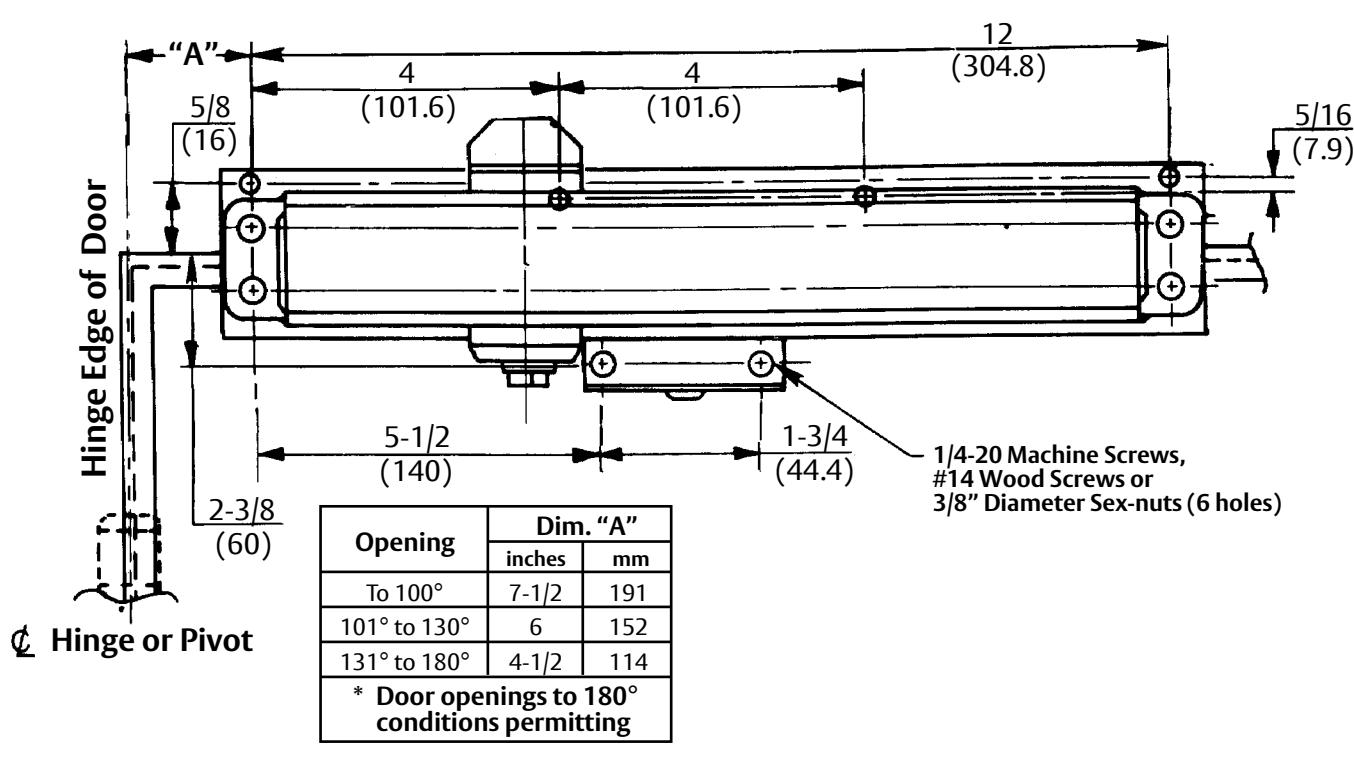

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches / (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.

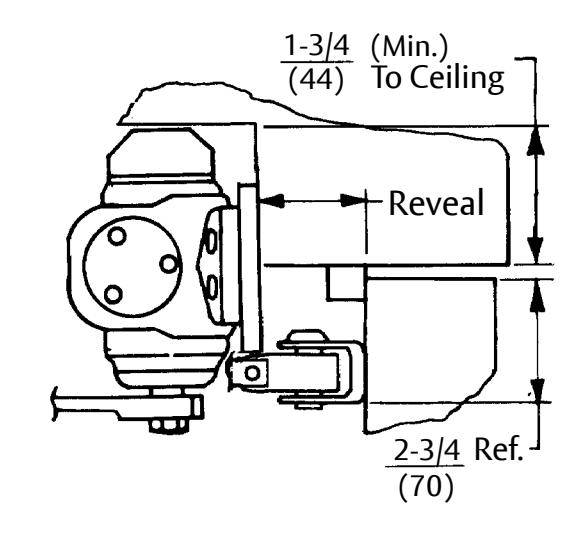

• Use regular length rod for reveals to 3" (76mm). Use long rod for reveals 2-3/4" (70mm) to 6-3/4" (171mm).

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

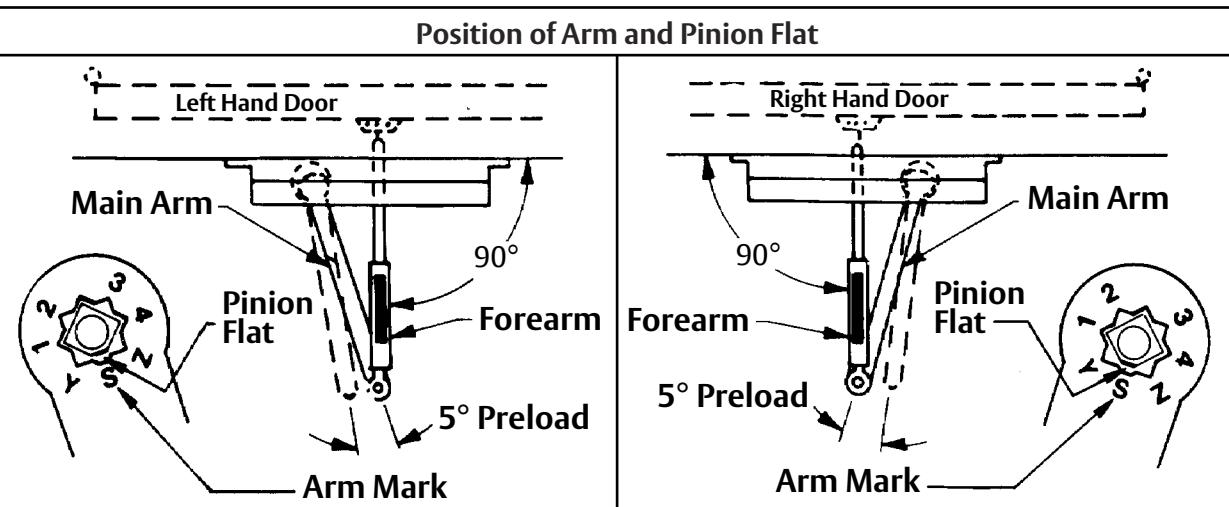

(TJ)3080 Series Door Closer with 3146 Back Plate Top Jamb Application with Low Profile Non Hold Open Arm Series (TJ)3180, (TJ)3380, (TJ)3580 Individually Sized Units 2 thru 6 and Multi-size Units 1 & 1BF Date: 12/23

Template Number: 7303-0161

Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com
