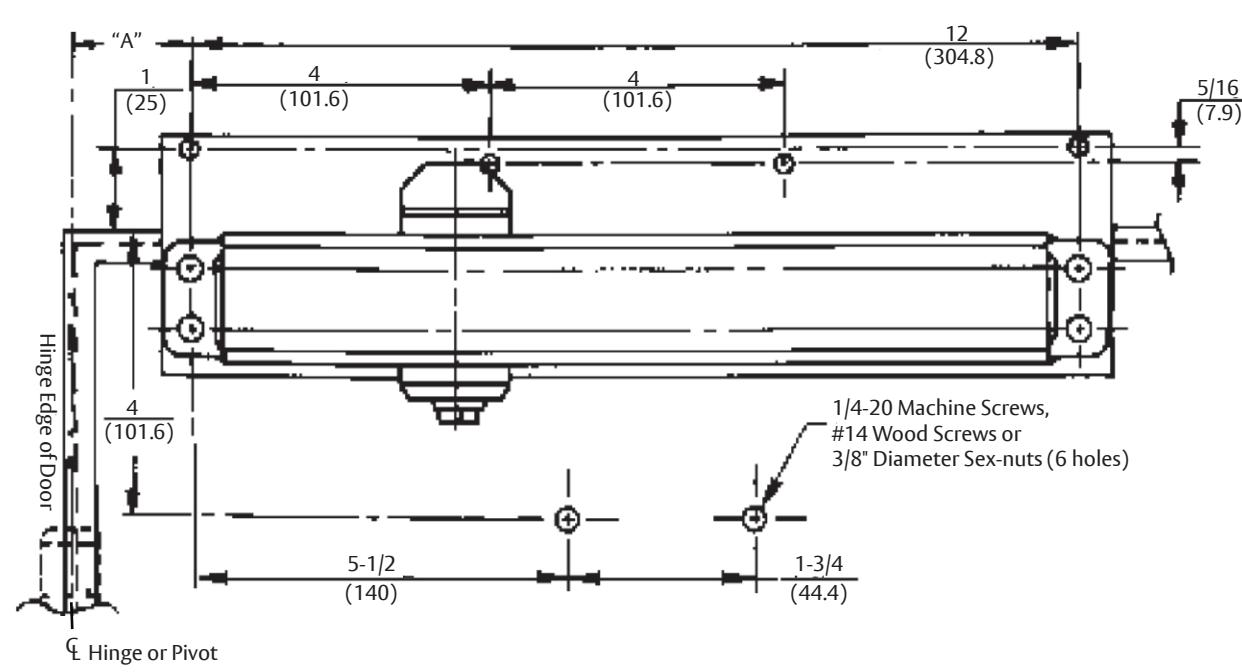

| Dimensions "A" | ||
|---|---|---|
| Opening | Inches | mm |
| To 100° | 7-1/2 | 191 |
| 101° to 130° | 6 | 152 |
| 131° to 180°* | 4-1/2 | 114 |
| *Door openings to 180° | ||
- Do not scale drawing.

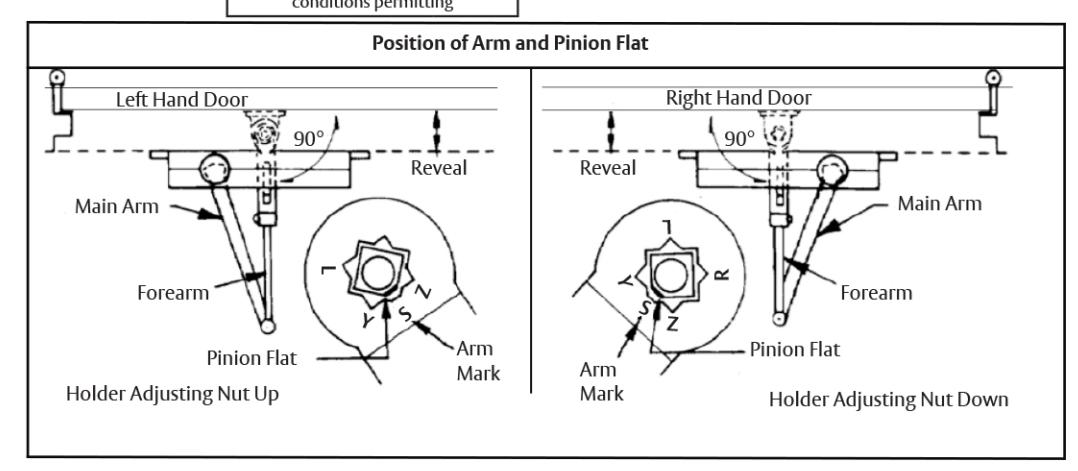

- Left hand door shown.
- Dimensions are in inches (mm) unless otherwise noted.
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Sex bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

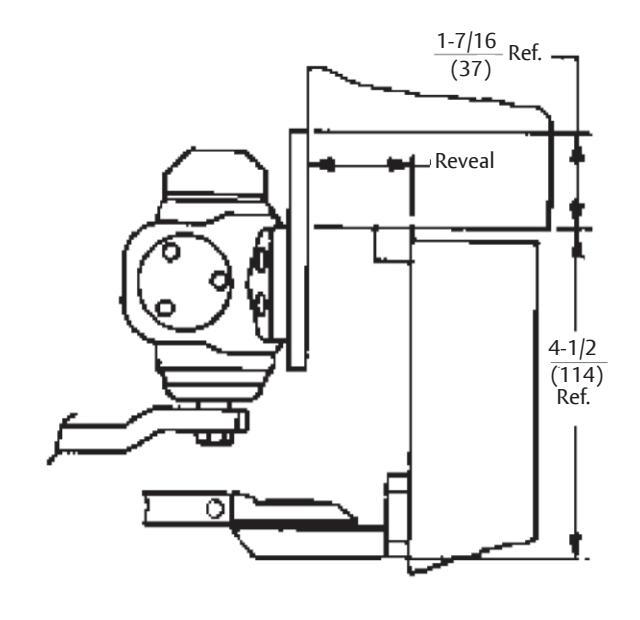

- Use regular length rod for reveals to 3" (76mm.).
- Hold Open Arms are not permitted to be used on fire doors.
Copyright © 2010, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
(TJ)3010 Series Door ClosersWith 3158 Drop Plate Top Jamb Hold Open Arm Application Series (TJ)3110, (TJ)3310, and (TJ)3510 Sized and Multi-size Units Date: 01/24
Template Number: 7303-0156
Sheet: 1 of 1
