ASSA ABLOY ACCENTRA TJ3311, TJ3511 Door Closer Top Jamb Hold Open Arm with 3146 Plate Multi-Size 1-6_7303-0153

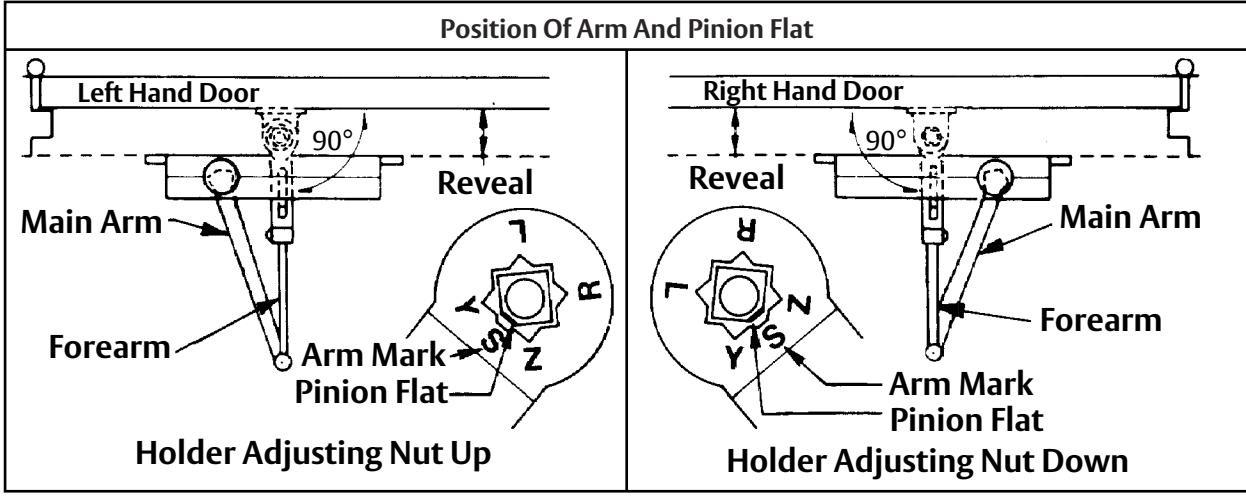

• Left hand door shown.

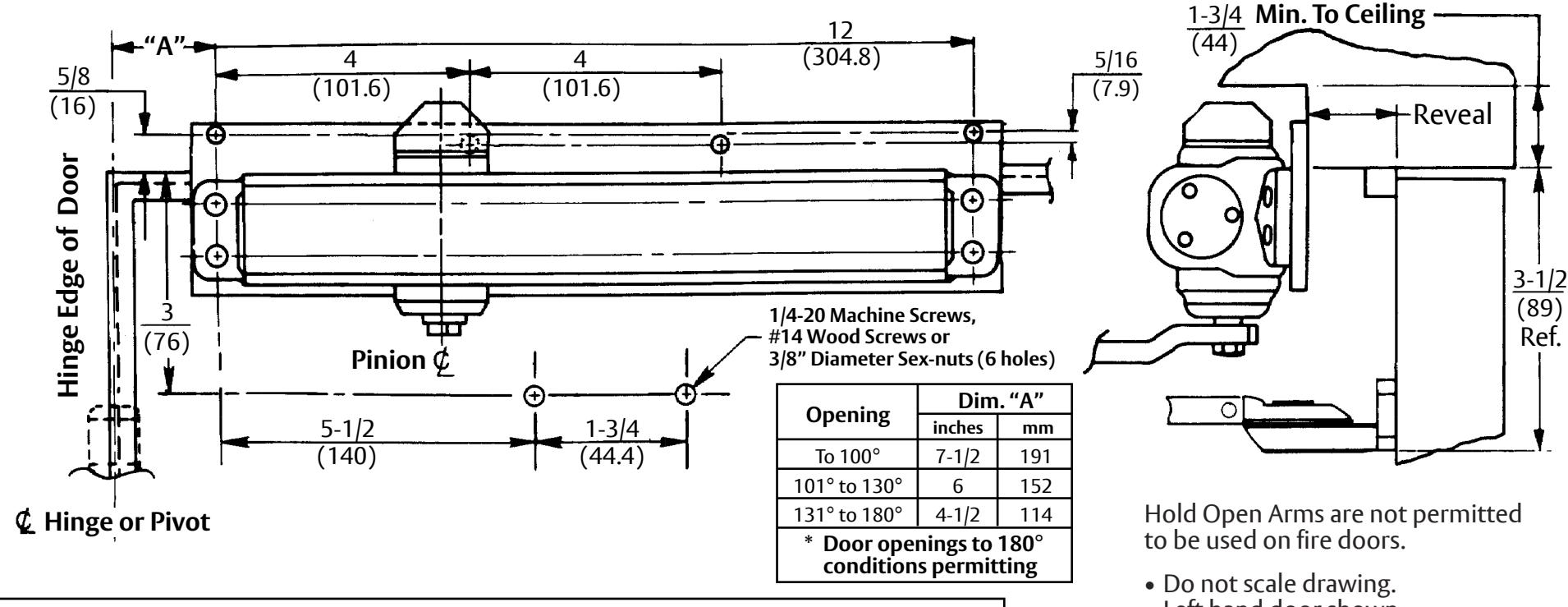

• Dimensions are in inches / (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
• Use regular length rod for reveals to 3" (76mm). Use long rod for reveals 2-3/4" (70mm) to 6-3/4" (171mm).

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

(TJ)3010 Series Door Closer with 3146 Back Plate

Top Jamb Hold Open Series (TJ)3110, (TJ)3310, (TJ)3510 Individually Sized Units 2 thru 6 and Multi-size Units 1 & 1BF Date: 12/23

Template Number: 7303-0153

Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com
