ASSA ABLOY ACCENTRA TJ3311, TJ3511 Door Closer Top Jamb Hold Open Arm Multi-Size 1-6 Template_7303-0155

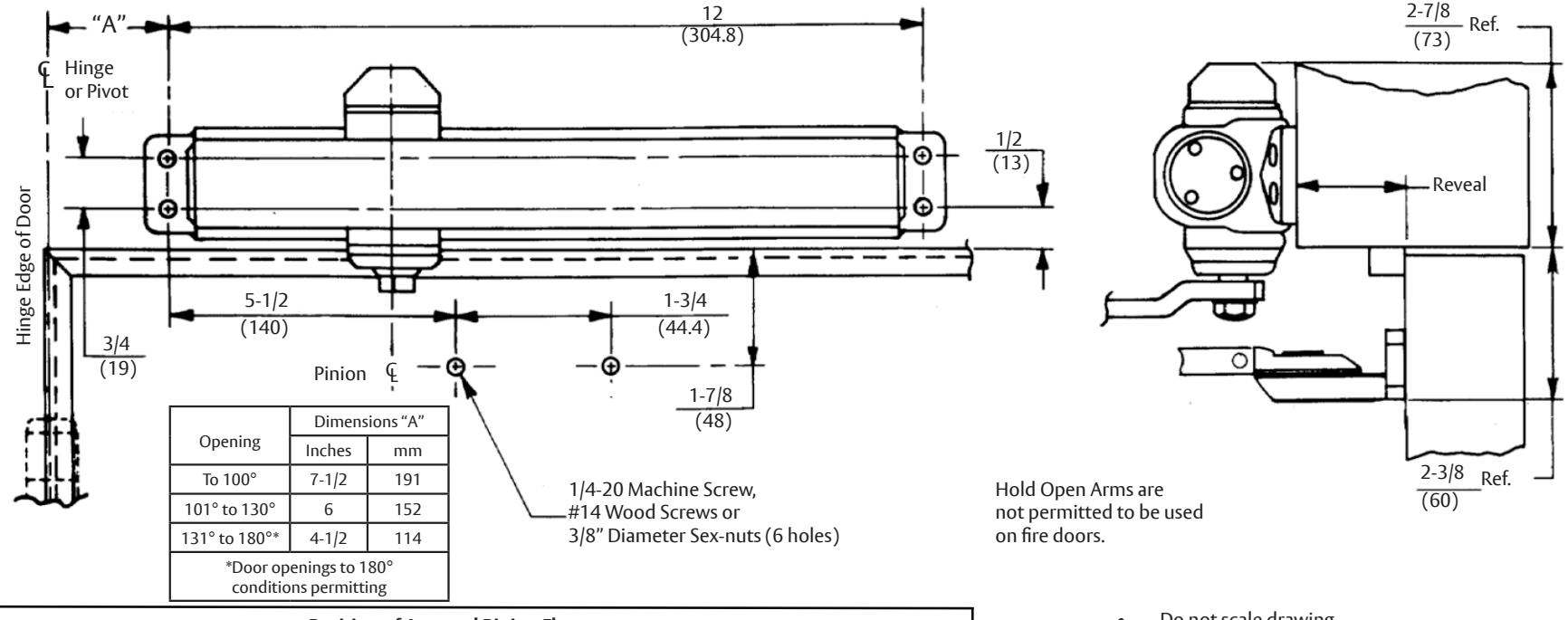

• Do not scale drawing.
• Left hand door shown
• Dimensions are in inches (mm) unless otherwise
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforements in holllow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• Use regular length rod for reveals to 3" (76mm.). Use long rod for reveals 2-3/4" (70 mm.) to 6-3/4" (171 mm.).

Experience a safer and more open world

Copyright © 2010, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

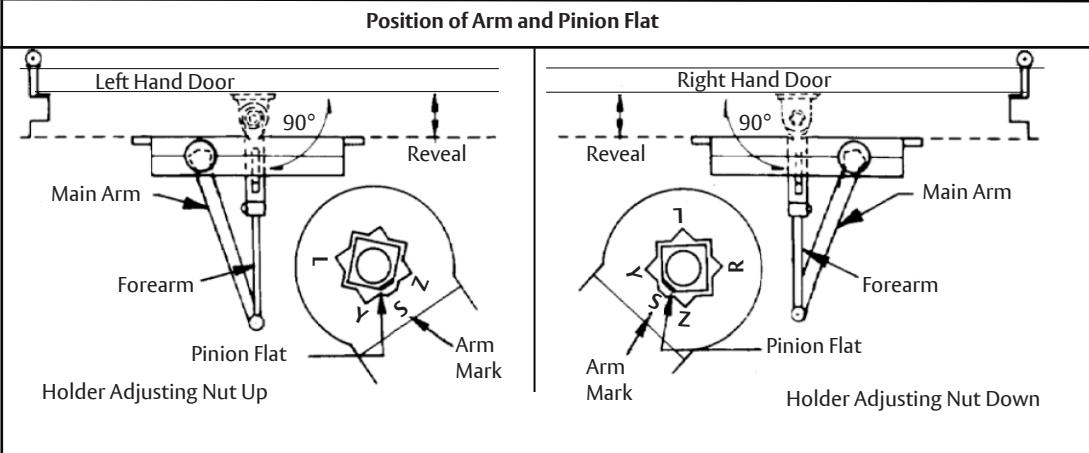

(TJ)3010 Series Door Closer Top Jamb Hold Open Arm Application Series (TJ)3110, (TJ)3310, and (TJ)3510 Sized and Multi-size Units

Template Number: 7303-0155 Sheet: 1 of 1

Date: 01/24
