ASSA ABLOY ACCENTRA TJ3301, TJ3501 Door Closer Top Jamb Non-Hold Open Arm with 3146 Plate Multi-Size_7303-0151

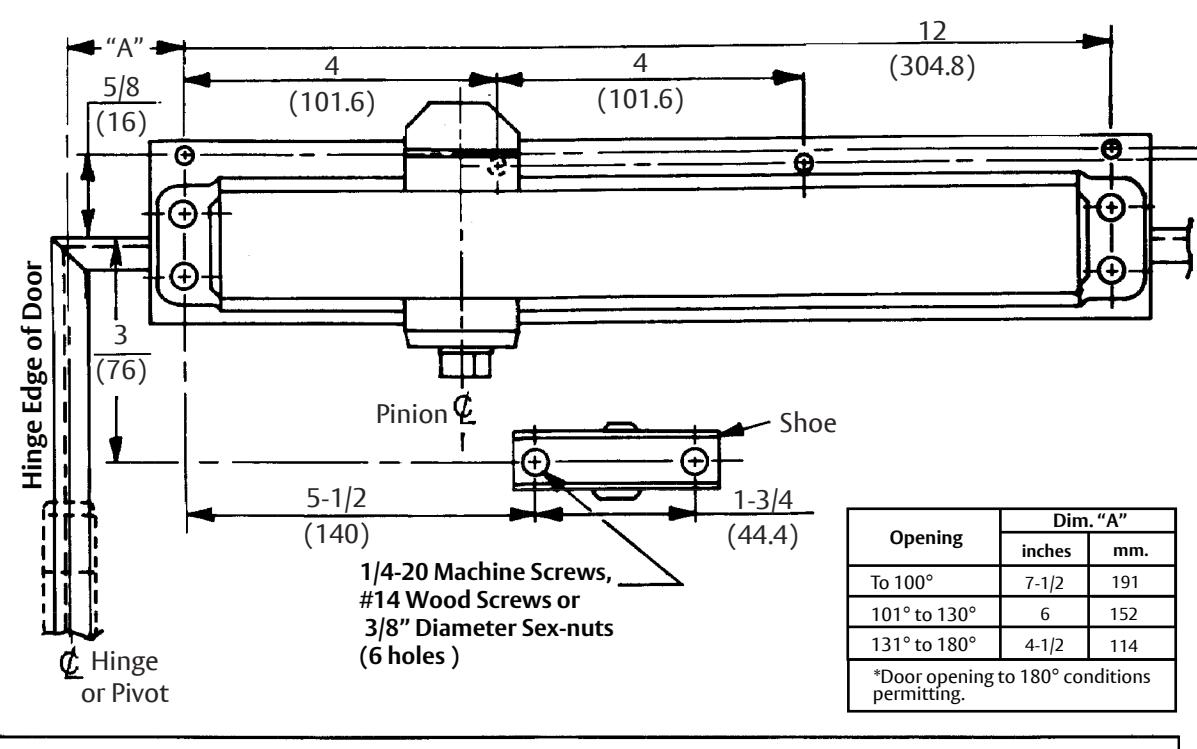

• Do not scale drawing.

5/16 (7.9)

• Left hand door shown.
• Dimensions: inches / (mm).
• Hollow metal doors require channel or box type reinforcement when through bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .104" (2.66 mm.) unless otherwise noted.

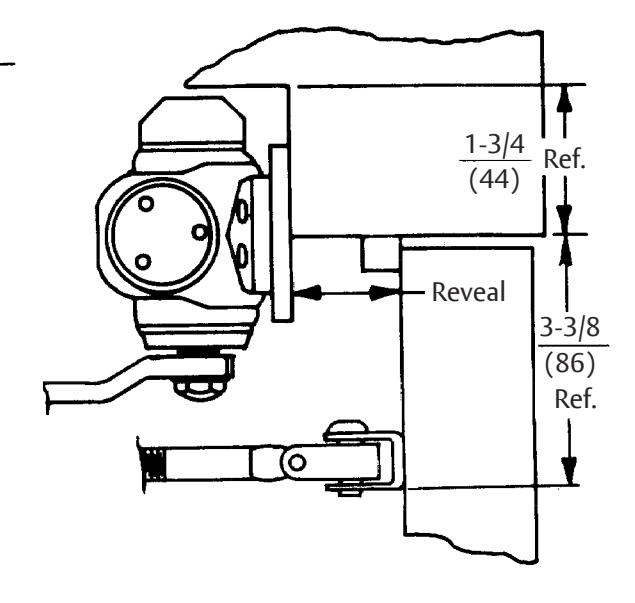

• Use regular length rod for reveals to 3" (76 mm.). Use long rod for reveals 2-3/4" (70mm.) to 6-3/4" (171 mm.).

Left Hand Door Right Hand Door Position Of Arm And Pinion Flat Arm Mark Pinion Flat Arm Mark Pinion Flat 5° Preload 5° Preload Forearm Forearm Main Arm Main Arm 90° 90°

Copyright © 2003, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

( TJ) 3000 Series Door Closer with 3146 Back Plate for Low Ceilling Clearance Top Jamb Application with Non Hold Open Arm Series (TJ) 3100, (TJ) 3300, (TJ) 3500 Individually Sized Units 2 thru 6 and Multi-size Units 1 & 1BF

Template Number: 7303-0151

Sheet: 1 of 1

1-855-557-5078 www.assaabloy.com

Date: 12/23
