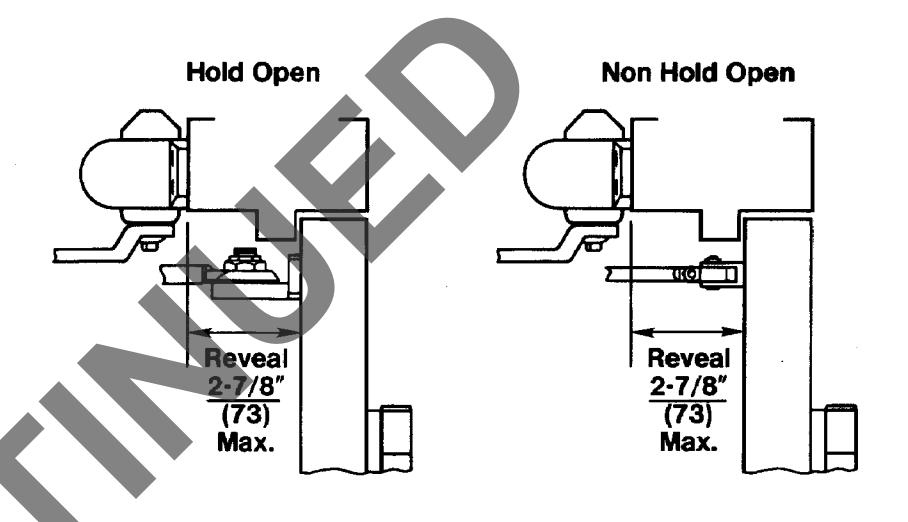

ASSA ABLOY ACCENTRA TJ2310 HO, TJ2300 NHO Top Jam Application Template_80-7323-0051-010
Open the original PDF document
View PDF

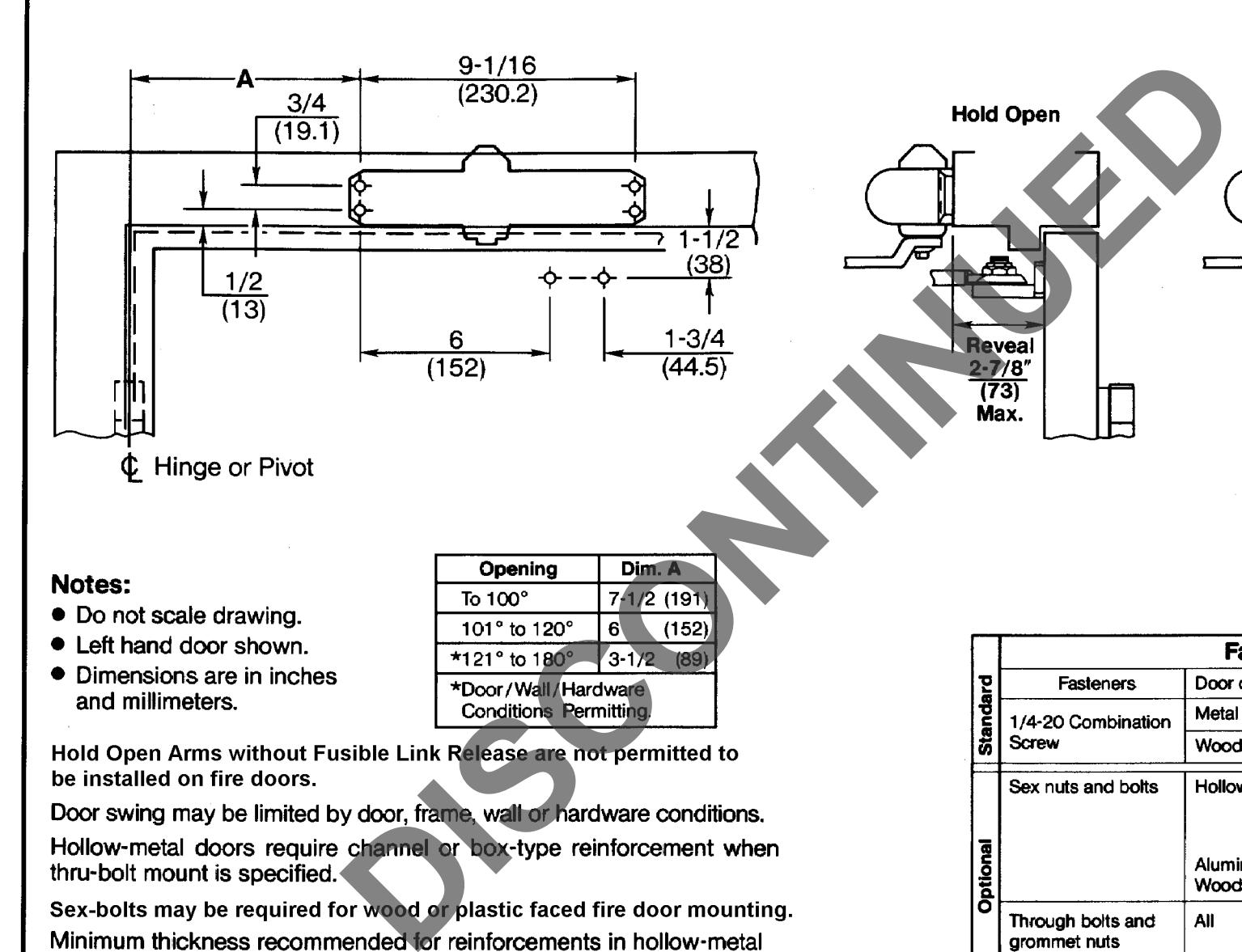

| Opening | Dim. A | |
|---|---|---|
| To 100° | 7-1/2 (191) | |
| 101° to 120° | 6 (152) | |
| *121° to 180° | 3-1/2 (89) | |
|
*Door/Wall/Hardware
Conditions Permitting |
||
| Γ | Fastener Chart | ||
|---|---|---|---|
| 5 | Fasteners | Door or Frame | Drill Sizes |
| Standard | 1/4-20 Combination | Metal | #7(.201"dia.) tap: 1/4-20 |
| Wood | 7/32"(5.54mm.) | ||
| Optional | Sex nuts and bolts | Hollow Metal |
9/32"(7.00mm.) through
3/8"(9.5mm.) door face opposite to closer |
|
Aluminum or
Wood |
3/8"(9.50mm.) through | ||
| 0 | Through bolts and grommet nuts | All | 9/32"(7.00mm.) through 3/8"(9.50mm.) dia. × 3/8"(10mm.) deep, door face opposite to closer |
