ASSA ABLOY ACCENTRA Symphony Series Cylindrical Lever Locks Template_7150-8011

Yale® and Symphony® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2009, 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

An ASSA ABLOY Group brand ASSA ABLOY

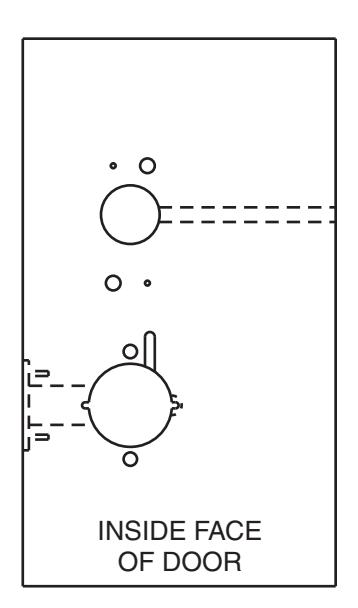

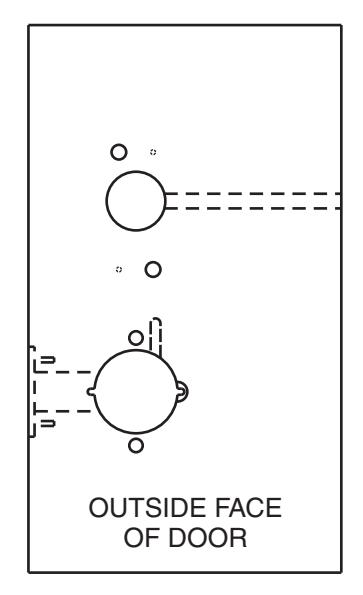

LH/LHR DOORS

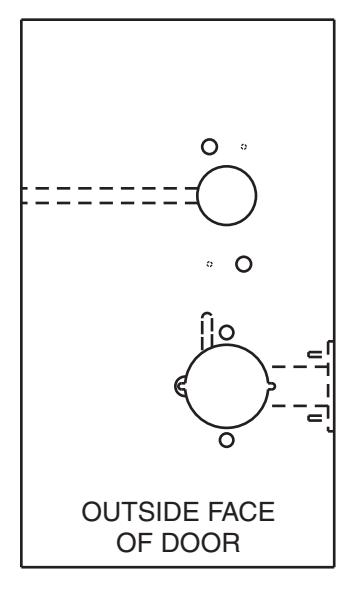

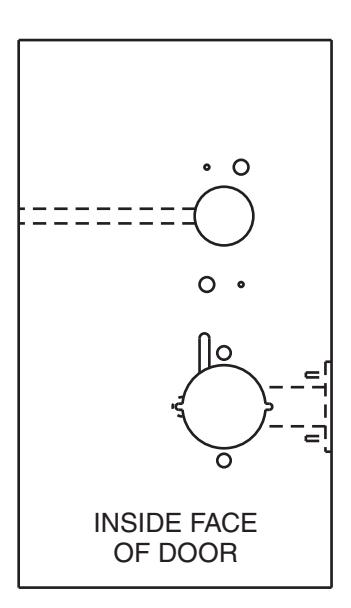

RH/RHR DOORS

Note:

An external door position switch (model number DPS1) is included. Use and installation location to be specified by others.

® Symphony S5400LN Series Cylindrical Lever Lock Wood or Hollow Metal Door Preparation

www.yalelocks.com 1-800-438-1951

TEMPLATE NUMBER DATE 7150-8011

2 of 2 SHEET

03-13

An ASSA ABLOY Group brand
