Assembly Instructions

80-9300-0001-010 (03-09)

CAUTION

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.

Supplemental Sheet for Stop Arm w/ Spring or Holder/Stop Arm w/ Spring

4030KIT to be used with these arm assemblies

Parallel Rigid (Non-Hold Open or Hold Open Arms)

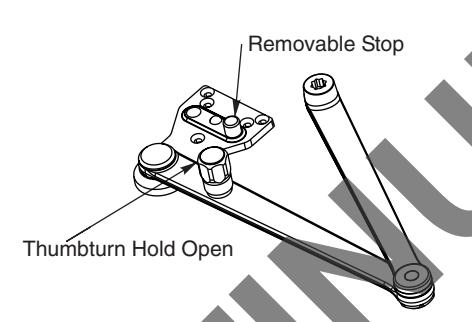

Holder/Stop Thumbturn Arm Assembly

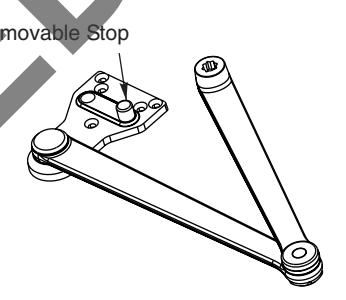

Stop Only Arm Assembly

Door (Left Hand Shown)

Assembly Instructions

New Arm Only:

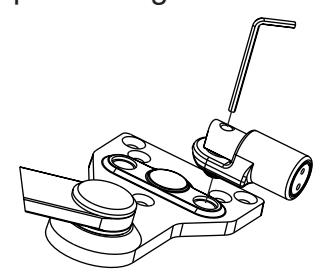

Determine hand of arm required and remove appropriate hole cap. Position spring buffer assembly on soffit plate and using 5/32" hex wrench provided, thread assembly to soffit plate.

Existing Arm Only:

Remove stop from existing plate using 5/32" wrench provided, position spring buffer assembly on soffit plate and thread assembly to soffit plate using the 5/32" hex wrench.

•Where severe or abusive conditions are expected a separate door stop, supplied by others, is recommended to assist in preventing damage to the door closer, closer arm; or to the door, frame or adjacent walls.

Yale ^®

An ASSA ABLOY Group brand

3000 Highway 74 East • Monroe, NC 28112 Tel: (800)-438-1951 • Fax: (800)-338-0965 www.yalecommercial.com
