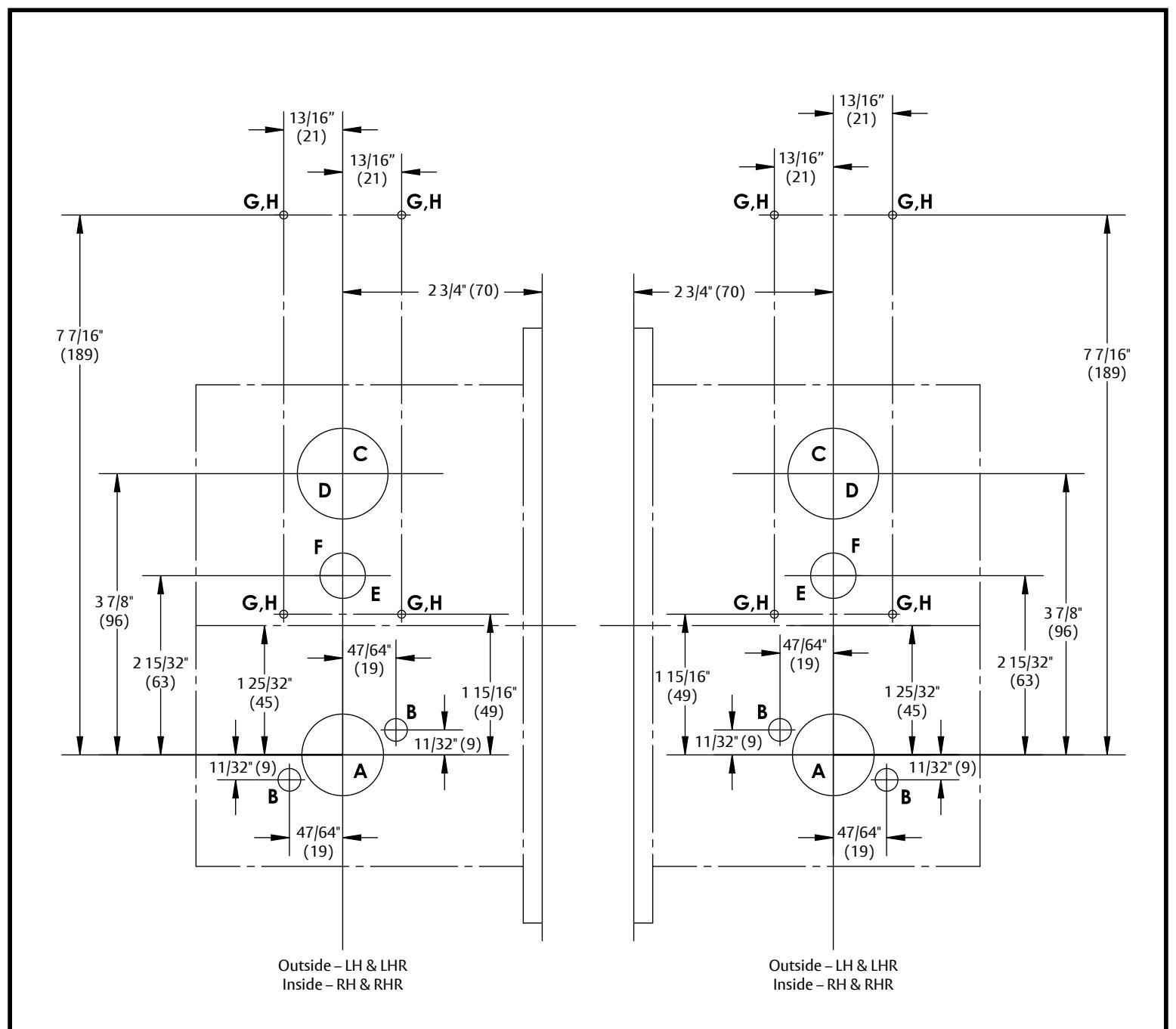

Hole Chart
Hole	Siz	e	Used For
Hole	H.M. Door	Wood Door
Α	1-1/8 (29) Dia.	1-1/8 (29) Dia.	Lever/Knob
В	5/16 (8) Dia.	5/16 (8) Dia.	Lever Adapter Plate
С	1-1/4 (32) Dia.	1-1/4 (32) Dia.	Cylinder (O/S)
D	1-1/4 (32) Dia.	1-1/4 (32) Dia.	Cylinder (I/S)
Е	5/8 (16) Dia.	5/8 (16) Dia.	Thumbturn (I/S)
F	5/8 (16) Dia.	5/8 (16) Dia.	Cointurn (O/S)
G	7/64 (3) Dia.	7/64 (3) Dia.	Sectional Indicator Mounting (I/S)
Н	7/64 (3) Dia.	7/64 (3) Dia.	Sectional Indicator Mounting (O/S)

Notes:

• 1. All dimensions given in inches (mm)
• 2. Not to scale

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

8800 MORTISE LOCKS

WOOD AND H.M. DOOR PREPARATION SECTIONAL INDICATOR TRIM

Contact us for support at 1-855-557-5078.

ASSA ABLOY

SUPERSEDES	PERSEDES 01/21		DO NOT SCALE DRAWING
TEMPLATE NUMBER 7088-1006		1 of 2	DATE	11-23

LOCK FUNCTION	HOLES IN DOOR
8802 8862 8865	A, B, E, F
8808	A, B, C
8808-2 8811-2 8812-2 8818-2 8860-2	A, B, C, D
8809 8820 8822 8827 8832 8840 8847 8860 8861 8864 8867	A, B, C, E
8814	C
8814-2	C, D
8815	C, E
8866	A, B, E

INDICATOR CODE	ADD HOLES
V*0 (INDICATOR OUTSIDE)	F, H
V0* (INDICATOR INSIDE)	E,G
V** (INDICATOR BOTH SIDES)	E,F,G, H
