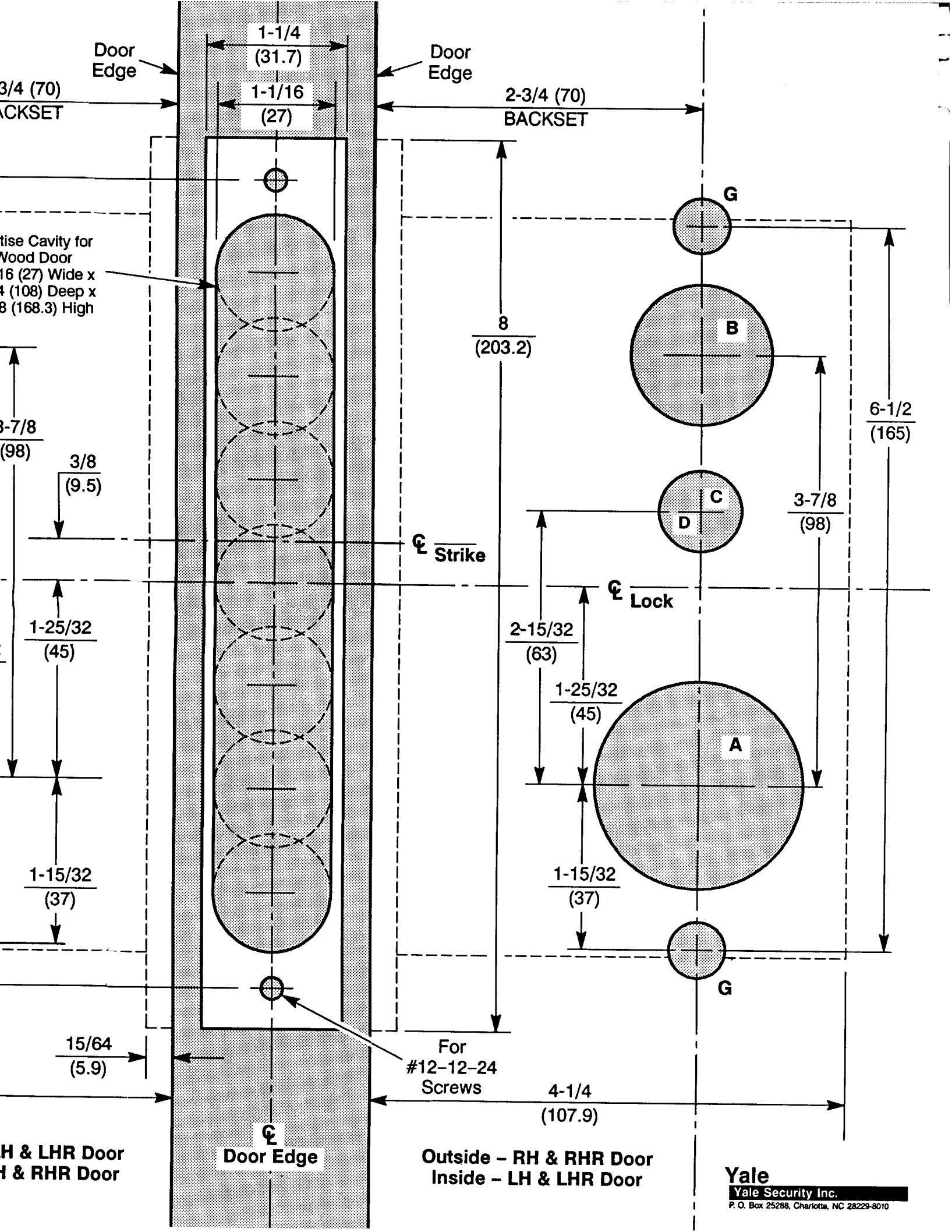

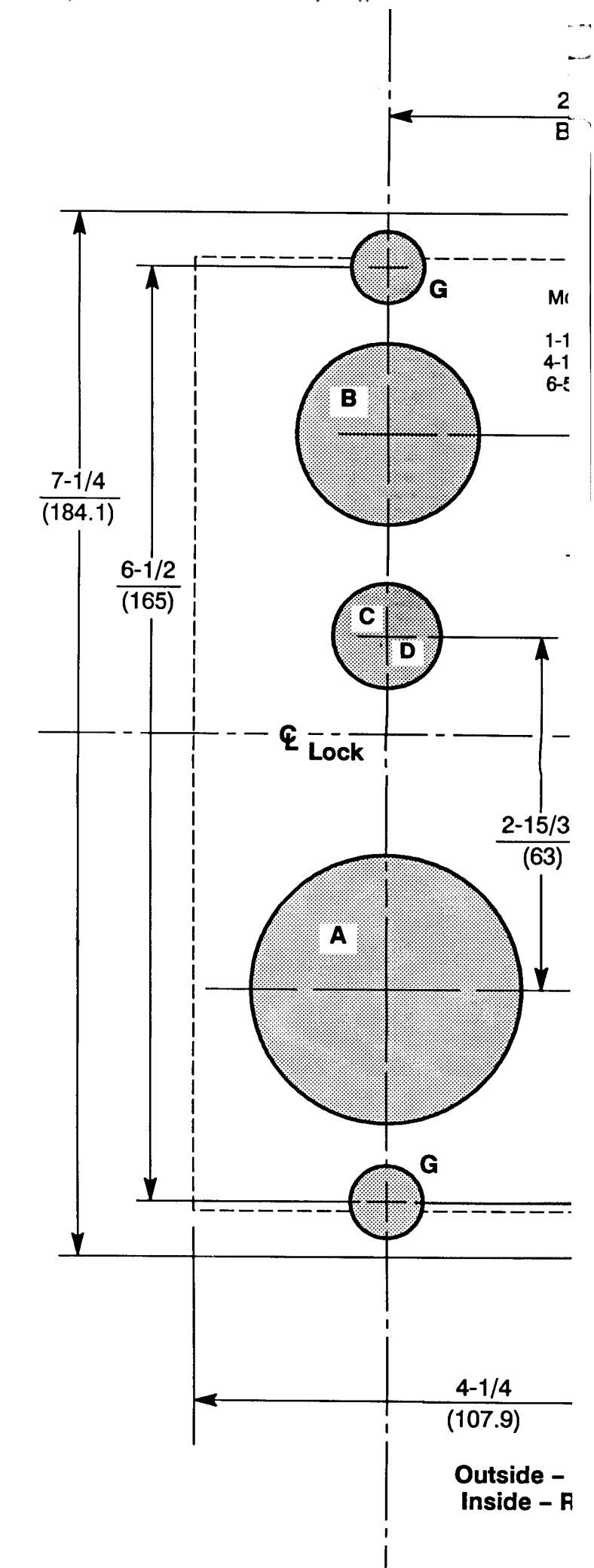

View PDFInstallation Template (Trim) 80-8086-0005-010 (5-94)
Yale® Mortise Locks SL8700 Series
|
Lock
Function |
Holes in Door | |
|---|---|---|
| SL8700 | Outside | Inside |
|
8701
8770DT 8771DT 8772DT 8780 8781 8784 836A & B 838A & B |
A, G | A, G |
| 8702 | A, C, G | A, C, G |
|
8705
8707 8708 |
A, B, G | A, G |
|
8790
8791 |
A, B*, G | A, B*, G |
|
8717-2
8730-2 8760-2 8794-2 8795-2 |
A, B, G | A, B, G |
|
8720
8727 |
A, B, D, G | A, C, G |
|
8722
8732 8747 8760 8767 |
A, B, G | A, C, G |
Lock can be mounted with cylinder outside or inside. Check for proper application.
| Hole Chart | ||||
|---|---|---|---|---|
| Hole | Size | |||
| noie | H.M. Door | Wood Door | Used For | |
| Α | 1-7/8 (48) Dia. | 1-7/8 (48) Dia. | Lever | |
| В | 1-1/4 (32) Dia. | 1-1/4 (32) Dia. | Cylinder | |
| С | 3/4 (19) Dia. | 3/4 (19) Dia. |
Thumbturn or
Emergency Key |
|
| D | 3/4 (19) Dia. | 3/4 (19) Dia. | Hotel Indicator | |
| G | 1/2 (13) Dia. | 1/2 (13) Dia. |
Escutcheon Plate
Thru Bolts |
|
