ASSA ABLOY ACCENTRA SL8700, SL8800 Door Prep for Through Bolted Escutcheon Plate Trim Code ‘E’ Template_7086-1206

Yale® and Symphony® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2006, 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

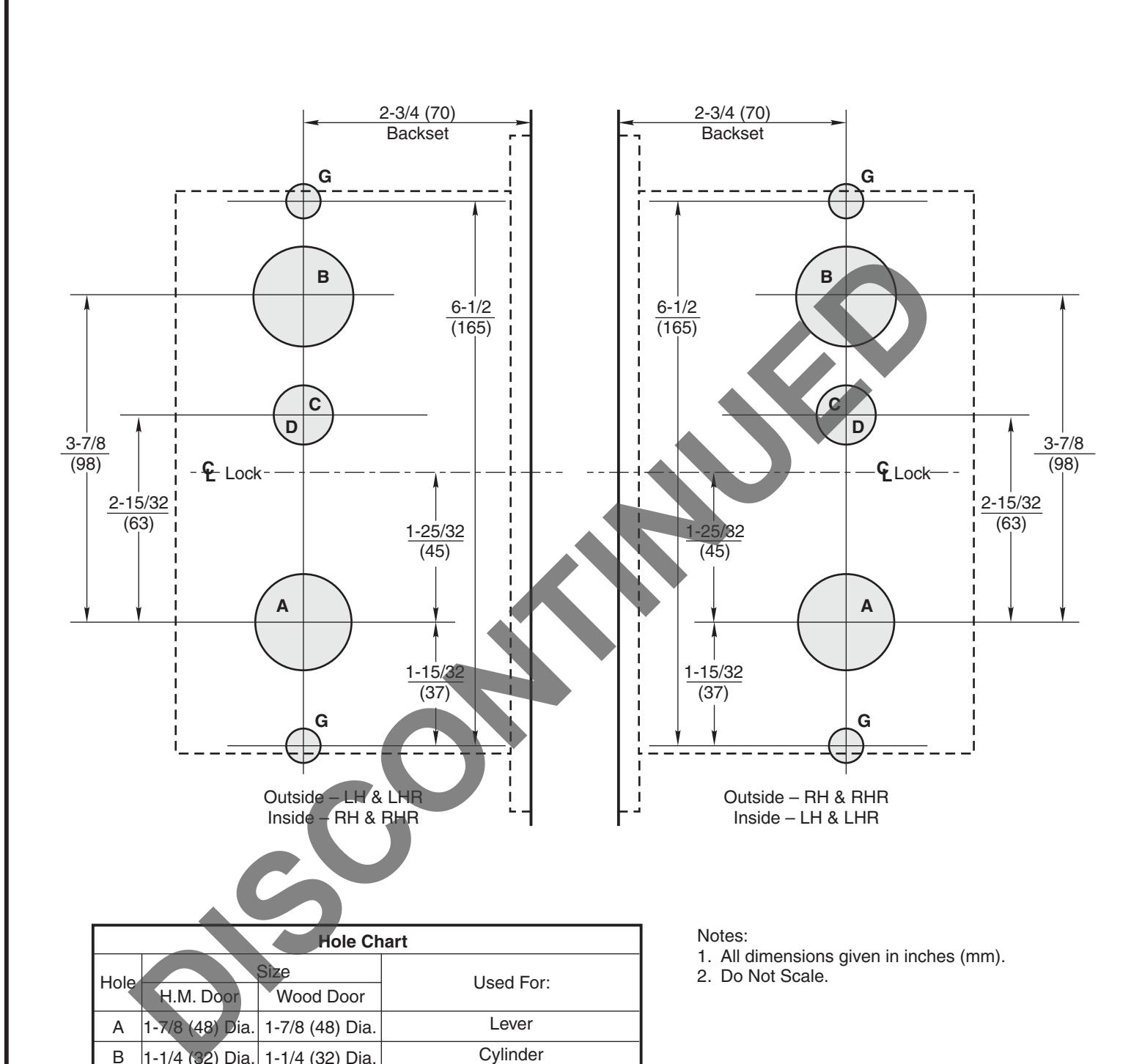

Hole	Size		Used For:
	H.M. Door	Wood Door	Oseu For.
Α	1-7/8 (48) Dia.	1-7/8 (48) Dia.	Lever
В	1-1/4 (32) Dia.	1-1/4 (32) Dia.	Cylinder
С	3/4 (19) Dia.	3/4 (19) Dia.	Thumbturn or Emergency Key
D	3/4 (19) Dia.	3/4 (19) Dia.	Hotel Indicator
G	1/2 (13) Dia.	1/2 (13) Dia.	Escutcheon Plate Thru Bolts

SL8700 & SL8800 Series Mortise Locks Wood or H.M. Door Preparation Thru Bolted Escutcheon Plate Trim

1-800-438-1951 www.yalelocks.com

TEMPLATE NUMBER DATE 7086-1206 05-13 1 of 2

ASSA ABLOY An ASSA ABLOY Group brand

	Lock Function	Holes in Door
8700		8800		Outside	Inside
8701	8801	838A & B
8770DT	8870DT
8771DT	8871DT
8772DT	8872DT			A, G	A, G
8780	8880
8781	8881
8784	8884
836A & B	8885
838A & B	836A & B
8702	8802	8862	8865	A, C, G	A, C, G
8705	8805	8824
8707	8807			G A, B,	G A,
8708	8808
8731	8831
8790	8890
8791	8891			A, B, G	A, B, G
8717-2	8808-2	8894-2
8730-2	8811-2	8895-2
8760-2	8812-2	8896-2
8794-2	8817-2	8897-2		A, B, G	A, B, G
8795-2	8818-2	8898-2
	8830-2	8899-2
	8860-2
8720	8820			G A, B, D,	A, C, G
8727	8827
8722	8822	8861	8899
8732	8832	8867	8809
8747	8840	8896		A, B, G	A, C, G
8760	8847	8897
8767	8860	8898
	8833			B, G	A, G
	8833-2	8814-2		B, G	B, G
	8813-2			B, G	B, C, G
	8834	8834-2		B, G	A, B, G
	8813	8815		B, G	C, G

SL8700 & SL8800 Series Mortise Locks Wood or H.M. Door Preparation Thru Bolted Escutcheon Plate Trim

05-13 TEMPLATE NUMBER DATE 7086-1206 2 of 2 SHEET

An ASSA ABLOY Group brand
