ASSA ABLOY ACCENTRA SCR400, SCR4400 Series Secruity Door Closer Rigid Regular Arm Non-Hold Open_7344-0601

Yale @ is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright @ 2004, 2010 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

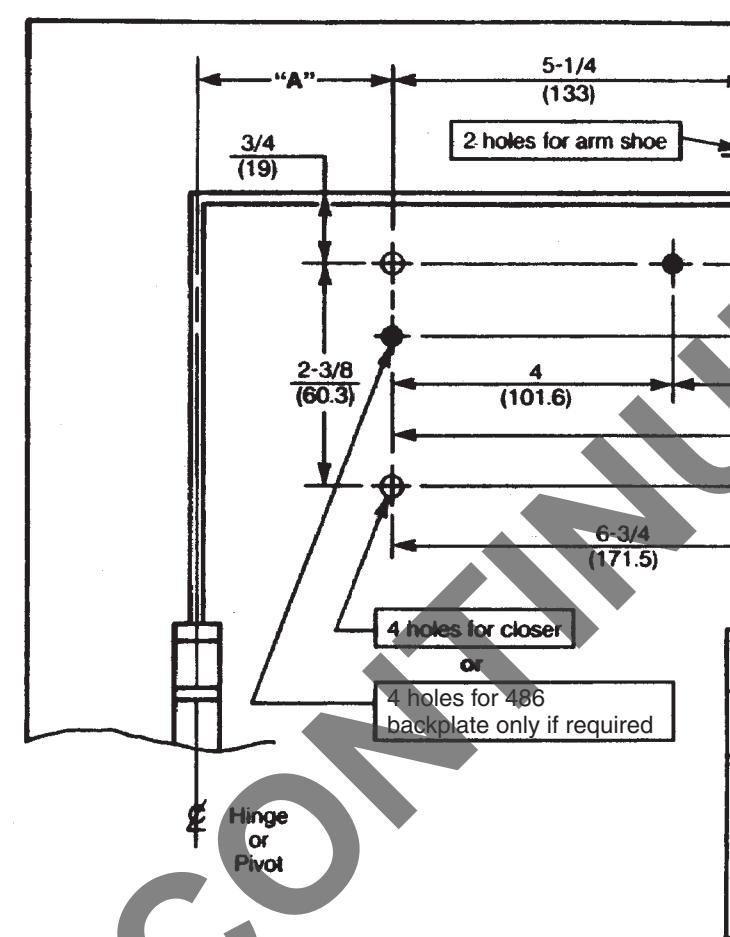

Door	Dimension "A"
Opening	inches	mm.
To 100°	7-5/8	194
101° to 120°	6-5/8	168
121° to 150°	4-5/8	117
151° to 180°	4-1/8	105

SPECIAL NOTE:

Hinge side frame reveal must not exceed 1/8 (3) or 5/16 (8) if 486 backplate is used.

Do Not Scale Drawing

Right Hand Door Shown

Dimensions are in inches (mm).

Caution: Door swing may be limited by door, frame, wall, or hardware conditions. (Including closer projection.)

Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.

If door closer is used in conjunction with a surface mounted overhead door stop/holder, use the 486 backplate and drill a clearance hole in the plate at the location of the sleeve-nut head on the door.

Fasteners		Door or Frame	Drill-Sizes
Standard	#14 type "A" S.M. screw Arm: 1-1/4" (32mm.) Closer: 2-3/4" (70mm.)	Wood	7/32"(5.50mm.)
Sta	1/4"-20 machine screw	Metal	drill: #7 (.201") tap: 1/4"-20
	Sex nuts and bolts	Hollow- Metal	9/32" (7.00mm.) through; 3/8" (9.50mm.) on door or transom-face opposite to closer
Options		Aluminum or Wood	3/8" (9.50mm.) through
ď	Through-bolts and grommet-nuls	Ali	9/32" (7.00mm.) through; 3/8" (9.50mm.) dia. × 3/8" (10mm.) deep on door or transom-face opposite to closer

12-3/8

(314.3)

1-1/16 (27)

(111.1)

SCR400/SCR4400 Series Secruity Door Closer Rigid Regular Arm Non-Hold Open Installation

Yale

100 Yale Ave. Lenoir City, TN 37771-3226 1-800-438-1951

www.yalecommercial.com

TEMPLATE NUMBER

T344-0601 DATE

1-1/2 (38)

ASSA ABLOY
