View PDFPrinted in U.S.A.
80-7344-0625-010

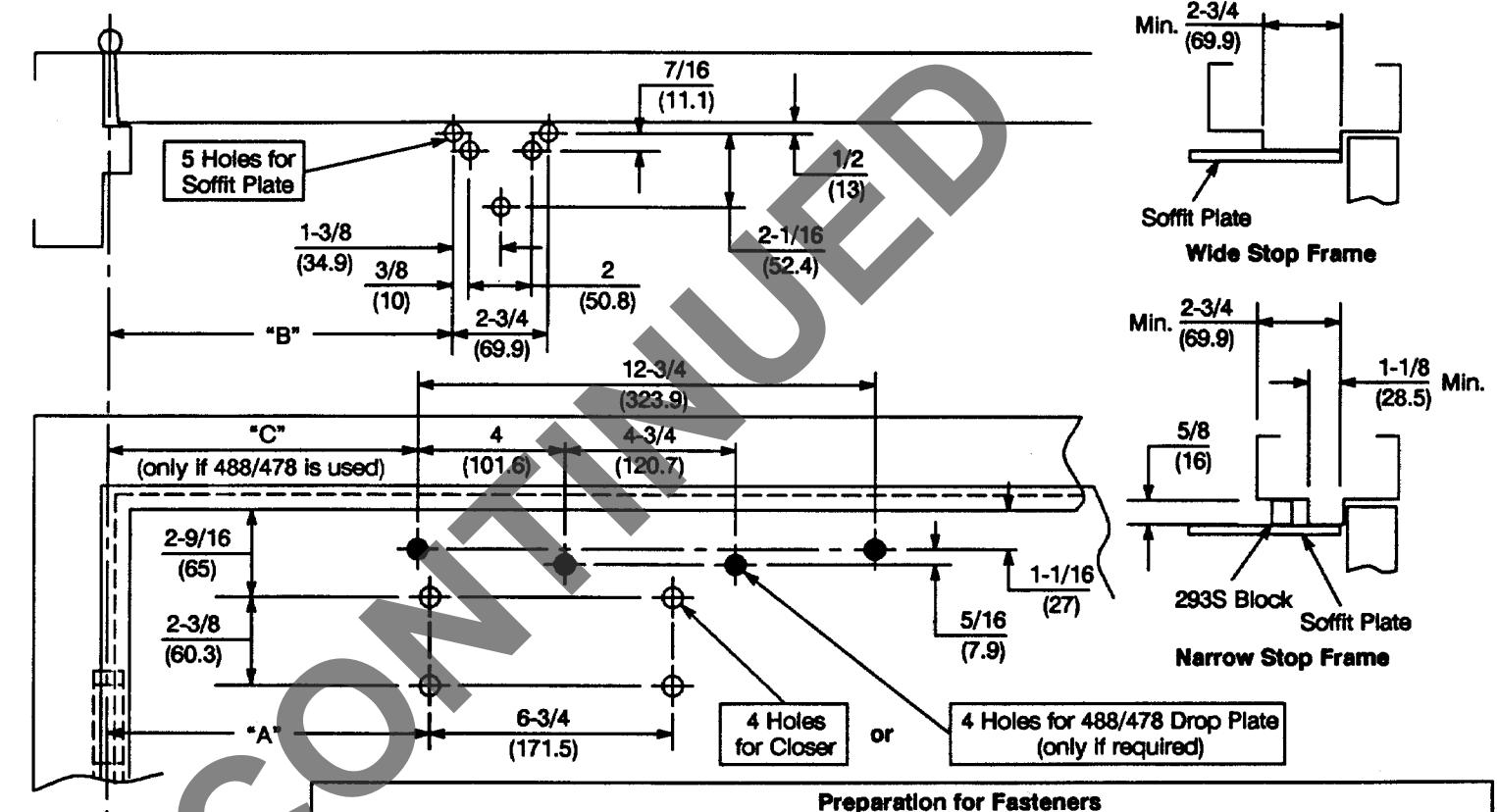

Caution: Door swing may be limited by door, frame, wall or hardware conditions
Notes:
- 1. Do not scale drawing.
- Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- 6. Closers with hold open arms, designated by a "T" suffix to the model number, are not permitted to be used on fire doors.
| Door Opening | Dim. "A" | Dim. "B" | Dim. "C" |
|---|---|---|---|
| 85° | 10-1/8 (257) | 10-5/8 (270) | 9-7/8 (251) |
| 90° | 9-1/4 (235) | 9-3/4 (248) | 9 (229.6) |
| 95° | 8-5/8 (219) | 9-1/8 (232) | 8-3/8 (213) |
| 100° | 7-7/8 (200) | 8-3/8 (213) | 7-5/8 (194) |
| 105° | 7-3/8 (187) | 7-7/8 (200) | 7-1/8 (181) |
| 110° | 6-3/4 (171) | 7-1/4 (184) | 6-1/2 (165) |
| Preparation for Pasteriers | |||||
|---|---|---|---|---|---|
| Fasteners | Door or Frame | Component | Drill Sizes | ||
|
#14 type "A"
S.M. screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | Arm | 7/32" (5.50mm) | ||
| 1/4-20 machine screw | Metal | Arm |
drill: #7 (.201")
tap: 1/4-20 |
||
|
Sex nuts and bolts
(SNB) |
Hollow
Metal |
Closer |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
||
|
Aluminum
or Wood |
G10301 | 3/8" (9.50mm) thru | |||
| Thru bolts and grommet nuts (TBGN) | All | Closer | 9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (9.50mm) deep on door or transom face opposite to closer | ||
SCP4020/SCP4420 Series CloserPlus Security Door Control With or Without "T" Suffix and With or Without 478 Drop Plate Holder Stop Arm Non-Hold Open or Hold Open Installation
@ Hinge or Pivot
Yale
Yale Commercial Locks and Hardware
www.yalecommercial.com
TEMPLATE NUMBER 80-7344-0625-010
DATE
8-04
