ASSA ABLOY ACCENTRA SCP400ST, SCP4400ST Security Door Closer x Security Slide Track for use on doors_7344-0680

Printed in U.S.A. 80-7344-0680-010

• From centerline of pivot point to end of track is 27-11/16" (703.3mm).
• Minimum door width 29" (736.6mm).
• Dimensions are given in inches (mm)
• Maximum door opening: 120°
• Use of auxiliary door stop is required for openings to 120°, conditions permitting.
• .1046 (2.7mm) minimum thickness recommended for hollow metal door and frame reinforcement.

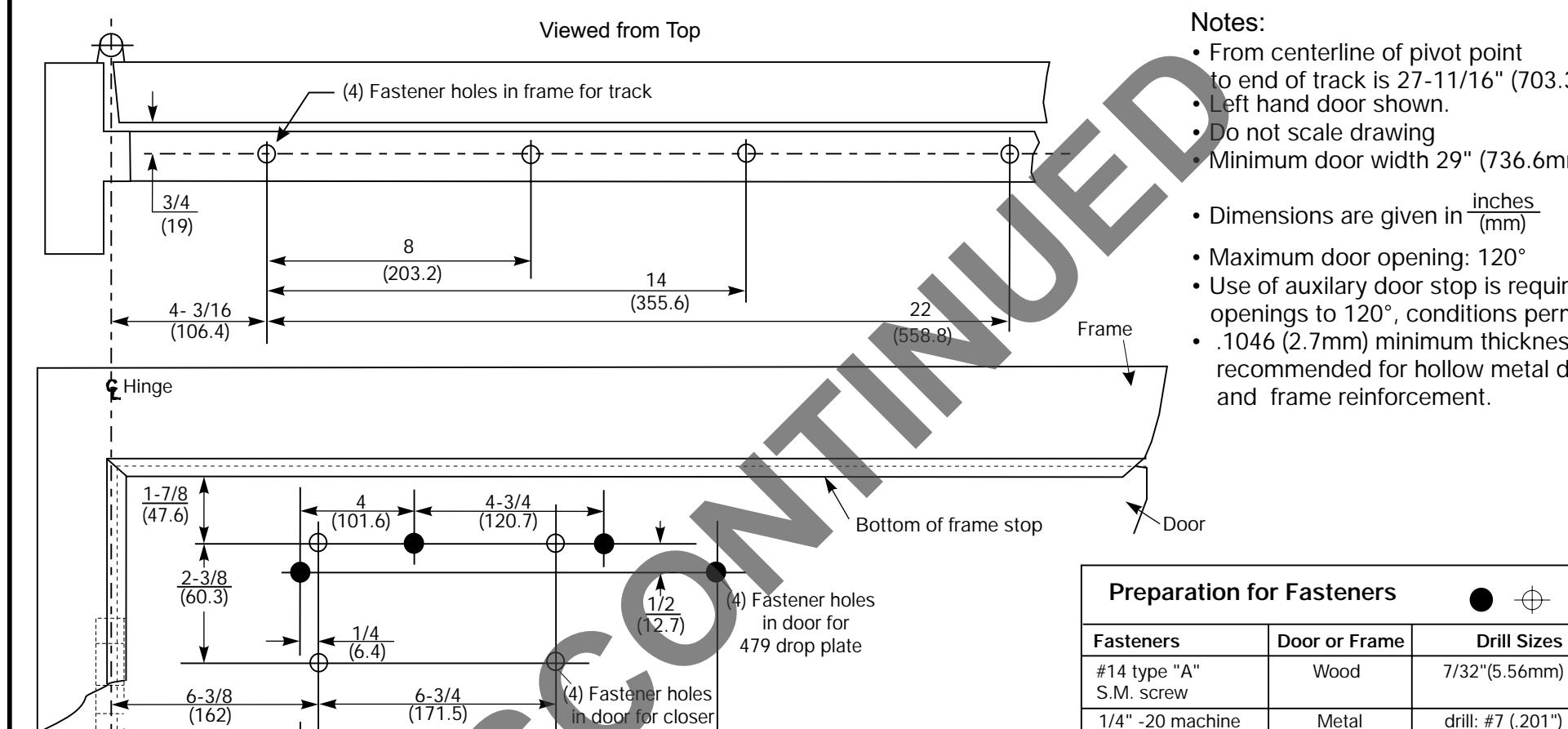

SCP4400ST and SCP400ST Security Door Closer with Security Slide Track With or Without 479 Drop Plate

12-3/4

For Use on Doors with 4½" or 5" Wide Butt Hinges Non Hold Open-Stop Mounted Installation

Yale

screw

(Optional)

Sex-nuts and bolts

Through-bolts and

grommet-nuts

(Optional)

Yale Commercial Locks and Hardware

www.yalecommercial.com TEMPLATE NUMBER

Hollow Metal

Aluminum or

Wood

ΑII

80-7344-0680-010

$\backslash oplus$

Drill Sizes

tap: 1/4" -20

9/32" (7.00mm) through 3/8" (9.50mm) door-face

3/8" (9.50mm) through

9/32" (7.00mm) through; 3/8" (9.50mm) dia. x

3/8" (10mm) deep doorface opposite to closer

opposite to closer

8-04
