ASSA ABLOY ACCENTRA SCP400, SCP4400, Parallel Rigid Arm x Security Closer, 478 Drop Plate Optional_7344-0621

80-7344-0621-010 Printed in U.S.A.

Caution: Door swing may be limited by door, frame, wall or hardware conditions.

Notes:

• Do not scale drawing.
• 2. Left hand door shown.
• Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

or Wood

All

Thru bolts and

grommet nuts

Door Opening	Dim. "A"	Dim. "B"	Dim. "C"
To 100°	8-5/8 (219)	9-1/8 (232)	8-3/8 (213)
101° to 120°	7-7/8 (200)	8-3/8 (213)	7-5/8 (194)
121° to 180°	6-3/4 (171)	7-1/4 (184)	6-1/2 (165)

Maximum hinge width 5" (127mm) for doors swinging beyond 150°.

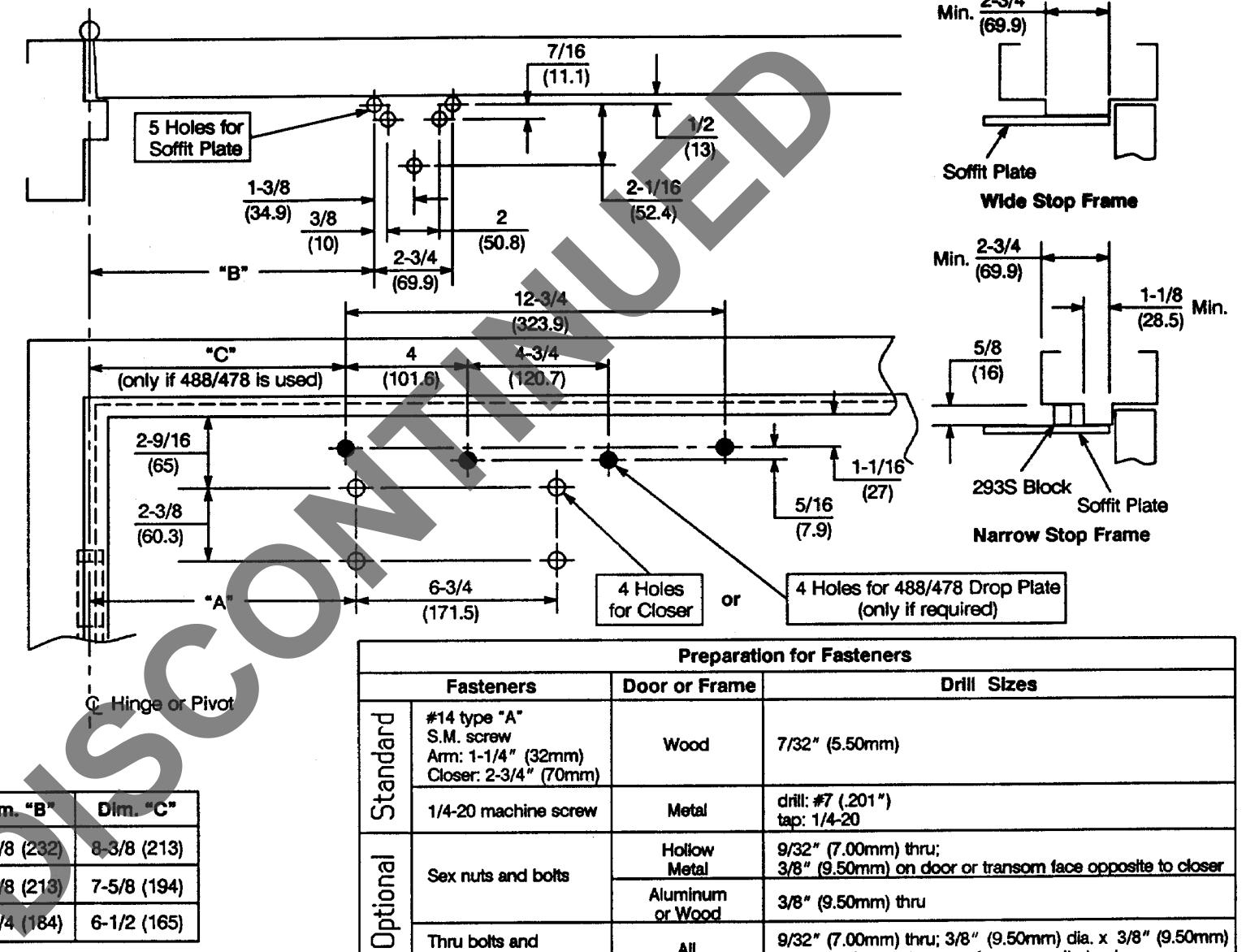

SCP400/SCP4400 Series Security Door Closer With or Without 478 Drop Plate Parallel Rigid Arm Non-Hold Open Installation

Yale

Yale Commercial Locks and Hardware

www.yalecommercial.com

9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (9.50mm)

deep on door or transom face opposite to closer

TEMPLATE NUMBER 80-7344-0621-010

DATE 8-04
