introduction -

The YH Collection™ from Yale® continues a legacy of distinctive design, high manufacturing standards and demanding performance started by Linus Yale in the mid-19th century. The YH Collection leverages years of engineering refinement with artful execution to offer a series of ANSI/BHMA Grade 2 superior light commercial quality locks that will beautifully serve facilities for generations. They offer superior functionality such as push-button locking, removable trim for simple re-keying, and a lifetime limited finish and mechanical warranty.

warranty

When used in commercial, institutional or industrial applications, YH Collection locksets carry a three-year mechanical and one-year finish warranty.

ansi/bhma

Certified ANSI/BHMA Grade 2 BHMA

push button locking

Single turn operation to unlock, meets ADA guidelines.

pre-installed screws

Pre-started screws makes installation quick and easy.

concealed screws

Provide a clean consistent look.

removable knobs and levers

Provide easy re-keying

brass cylinder standard

Reduces wear and provides smooth operation

front removable deadbolt cylinder

Provides easy re-keying. Ideal for apartment and condominium applications.

non-handed levers

Easily field reversible for installation in applications of either hand.

standard case quantities

	Box Pack (SP)	Clear View (CV)
Dummy	12	6
Knobs	24	6
Levers	12	6
Deadbolts	12	6
Combo Sets	12	6
Handlesets	6	4
Handlesets - Interior Pack	6	N/A

When ordering, specify the exact number of individual units required. For example, if there are 24 units in a case and 1 case is required, specify 24. See page 21 for How to Order.

contents —
Knobs3-4
Levers
Deadbolts 8-9
Handlesets10-11
Interconnected12-13
Cylinders/Keying 14-15
Latchbolts
Strikes18
Accessories19-20
How to Order
Handing of Doors

finishes

ANSI/ BHMA Code	Finish Description	US Code
605	Bright Brass	US3
609	Satin Brass, Blackened, Satin Relieved, Clear Coated	US5
613	Dark Oxidized Satin Bronze, Oil Rubbed	US10B
613e	Dark Oxidized Satin Bronze, Permanent	US10BP
619	Satin Nickel Plated, Clear Coated	US15
620	Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated	US15A
625	Bright Chrome Plated	US26
626	Satin Chrome Plated	US26D

Finish Code	Description
GM	Gun Metal
TB	Textured Black
YGG	Yale Guard™ Gold

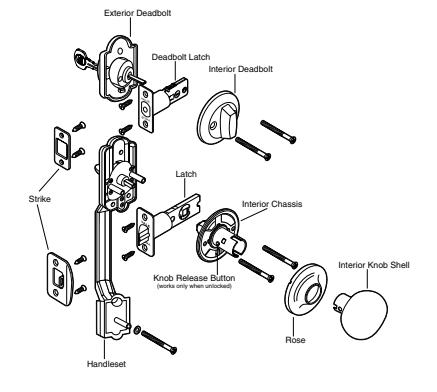

handleset product specifications

Door Specs

2-1/8" Face Bore 1" Edge Bore 5-1/2" O.C.

Box Pack:

Latch Face 1" x 2-1/4" RC (Round Corner)

Clear Pack :

Latch Face 1" x 2-1/4" SC (Square Corner)

Latch

Box Pack:

2-3/8" RC (Round Corner)

Deadbolt:

2-3/8"–2-3/4" ADJ. RC (Round Corner)

Clear Pack:

Spring Latches 2-3/8" and 2-3/4" SC (Square Corner)

Deadbolt:

2-3/8"–2-3/4" ADJ. SC (Square Corner)

Door Thickness

1-3/8" to 1-3/4"

2" to 21/4" Requires Ext. Kit 07600

Cylinder

6-Pin Cylinder KW-1 Compatible

Keying

Box Pack:

KD (Keyed Different)

Clear Pack:

KD (Keyed Different)

Faceplate

1" x 2-1/4" RC (Round Corner)

Strike

Box Pack:

Spring latch 2-1/4" Full Lip RC (Round Corner)

Deadbolt: 1-1/4"x 3-5/8" RC (Round Corner)

Clear Pack:

Spring latch 2-1/4" Full Lip SC (Square Corner)

Deadbolt:

1-1/4"x 3-5/8" SC (Square Corner)

Hardware Handing

Handlesets are non-handed. Specify right-handed or left-handed for lever interior only.

Interior Trim

Box Pack and Clear Pack: Bridgeport Knob

Standard Case Quantities

Box Pack: 6

Clear Pack: 4 (Interior Pack: N/A)

Note: See pages 14-18 for optional cylinders, latchbolts

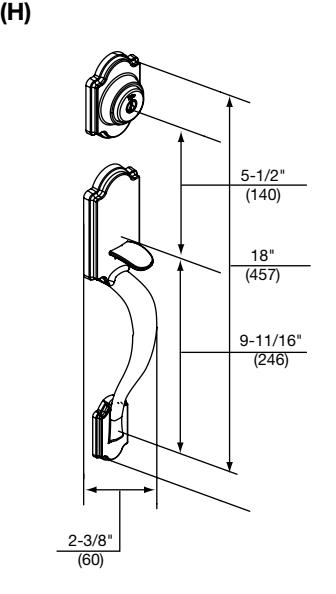

Homestead

and strikes.

handleset designs

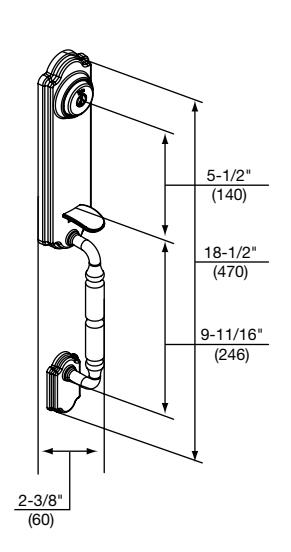

Fairfield (F)

handleset designs

functions

983/984/986/987	923/924/926/927	944/946/947
Dummy: For on-working side of double doors. Non-functioning deadbolt, knob or lever.	Single Cylinder: Thumbpiece retracts latch from exterior side. Knob or lever retracts latch from interior side. Deadbolt latch retracts with key from exterior side, Thumbturn retracts deadbolt latch from interior side.	Double Cylinder: Thumbpiece retracts latch from exterior side. Knob or lever retracts latch from interior side. Deadbolt latch retracts with key from exterior side and interior side.

Dimensions	A	B	C	D
Fairfield	2-3/8"	5-1/2"	9-11/16"	18-1/2"
Homestead	2-3/8"	5-1/2"	9-11/16"	18"

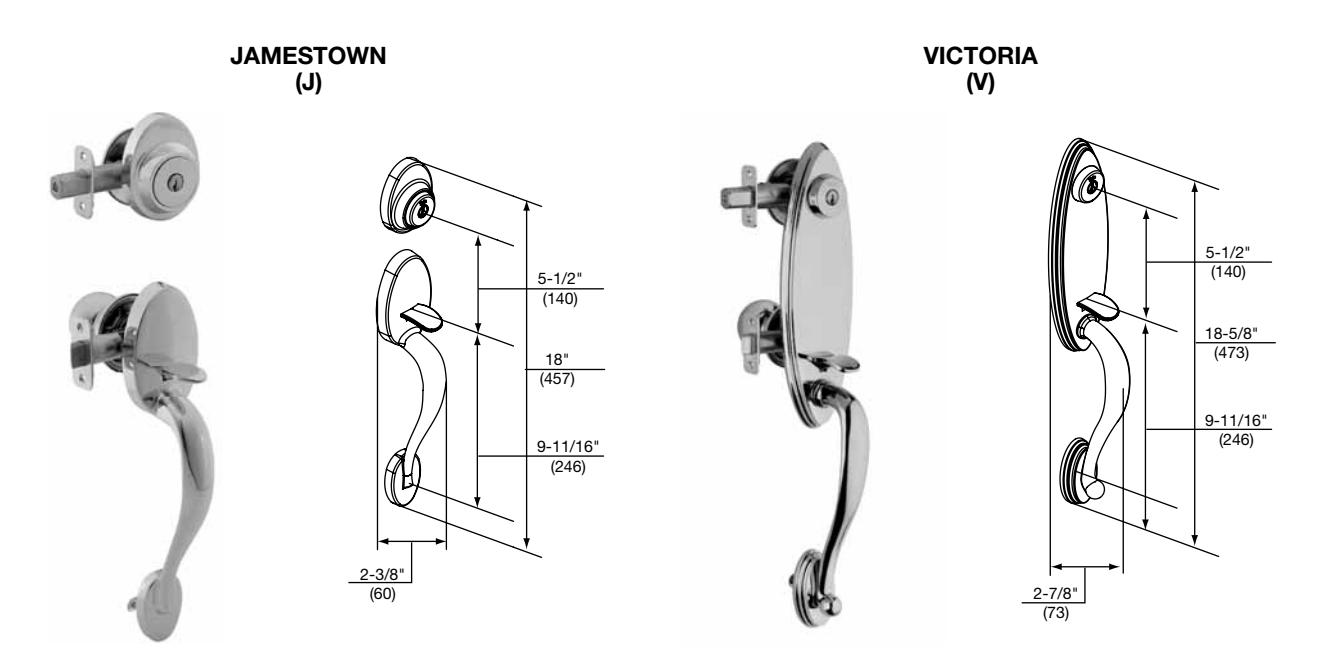

Jamestown	2-3/8"	5-1/2"	9-11/16"	18"
Victoria	2-7/8"	5-1/2"	9-11/16"	18-5/8"

cylinders/keying

All cylinders furnished standard 6-pin, keyed different in Yale® KW-1 keyway. Deadbolt cylinders furnished keyed alike in sets of 3.

Optional cylinders:

Yale Para keyway 6-pin (specify "Para") Schlage® C keyway 5- or 6-pin (specify "SC-1" and number of pins)

Cylinders available masterkeyed or construction/builder keyed.

Key Blanks
	Key Blank Description	Quantity	Model No.
	Key Blank	50 per box	068003
	Key - cut	50 per box	068550
	6 PIN Schlage® Key Blank	50 per box	068009
	6 PIN Schlage® Key - cut	50 per box	068509

Cylinder Options
Schlage® 5-Pin Standard, 6-Pin Must be Specified if Needed	Model No.
5-Pin Compatible with F Series
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03	068401
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 03	068402
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26	068405
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 26	068406
6-Pin Compatible with A Series
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03	068D01
Brass Cylinder & 2 Brass Keys, Tailpiece,High Stack, Deadbolt, 03	068D02
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26	068D05
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Deadbolt, 26	068D06
KW1 6-Pin Standard
5-Pin
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03	060003
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 03	060103
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26	060006
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 26	060106
6-Pin
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03	06D013
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 03	06D103
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26	06D016
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 26	06D106

For Residential Product Only Yale® PARA E1R, Y1 6-Pin Must be Specified if Needed
6-Pin	Model No.
Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Entry Lever, 03	06Y303
Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Entry Lever, 26	06Y306
Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, 83/820 Deadbolt, 03	06Y403
Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, 83/820 Deadbolt, 26	06Y406
Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Premier Deadbolt, 03	06Y413
Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Premier Deadbolt, 26	06Y416

keying terminology

All locks will be shipped KD unless otherwise specified.

KD: Keyed Different

KA: Keyed Alike

MK: Master Keyed* (A single master key operates all locks within the system.)

BK: Builder Key* (Builder key operates all locksets within a system. Use of homeowner's key cancels the builder key.)

BMK: Builder Keyed and Master Keyed* (Builder key and master key operates all locksets within a system. Use of tenants key cancels the builder key.)

K-T-P: Keyed To Pass (For apartment vestibules or laundry rooms. All tenant keys will operate.)

GMK: Grand Master Keyed* (More than 1 master key system operated by a single master key.)

BGMK: Builder Keyed and Grand Master Keyed* (Combination of BK and GMK.)

*Builder and/or master keys are sent certified mail to the "Bill To" address, referencing the purchase order number and the original order number. All Master Keyed orders shipped with three (3) master keys at no extra charge. All Builder Keyed orders are shipped with ten (10) builder keys at no extra charge.

latchbolts

deadbolt latches

Model No.	Description	Dimensions	Corner Specs
01D44**	2-3/8" – 2-3/4" Adj. Deadbolt Latch	1 x 2-1/4"	Square Corner
01D41**	2-3/8" – 2-3/4" Adj. Deadbolt Latch	1 x 2-1/4"	Round Corner
01D47**	2-3/8" – 2-3/4" Adj. Deadbolt Dr. In Latch	1" Dia.	N/A

handleset latches – interior split-hub spring latches

Model No.	Description	Dimensions	Corner Specs
01804**	2-3/8" Spring Latch	1 x 2-1/4"	Square Corner
01802**	2-3/8" Spring Latch	1 x 2-1/4"	Round Corner
01803**	2-3/8" Spring Drive-In Latch	1" Dia.	N/A
01808**	2-3/4" Spring Latch		Square Corner
01806**	2-3/4" Spring Latch	1 x 2-1/4"	Round Corner
01807**	2-3/4" Spring Drive-In Latch	1" Dia.	N/A

^** Specify finish when ordering

strikes

lockset strikes

Model No.	Item	Dimension	Corner Specs
02001*	Standard Full Lip Strike/SC	1-3/4" x 2-1/4"	Square Corner
02000*	Standard Full Lip Strike/RC	1-3/4" x 2-1/4"	Round Corner
02020*	T-Strike	1-1/8" x 2-3/4"	Square Corner
02030*	ANSI 4-7/8"	1-1/4" x 4-7/8"	Square Corner

^* Specify finish when ordering

ANSI 4-7/8" 02030*

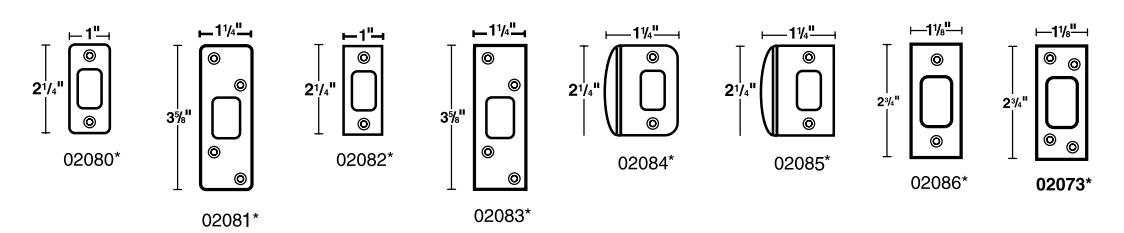

deadbolt strikes

Model No.	Item	Corner Specs
02082*	Standard Deadbolt Strike/SC	Square Corner
02080*	Standard Deadbolt Strike/RC	Round Corner
02081*	Security Strike 3-5/8"	Round Corner
02083*	Security Strike 3-5/8"	Square Corner
02091*	Full Lip Security Strike	Round Corner
02085*	Full Lip Deadbolt Strike	Square Corner
02084*	Full Lip Deadbolt Strike	Round Corner
02086*	Universal Deadbolt Strike	Square Corner
02071*	Canadian Deadbolt Strike	Round Corner
02073*	Canadian Deadbolt Strike	Square Corner
026002	White Plastic Dust Box 1" x 2-3/4" Deadbolt (For Universal Strike)

^* Specify finish when ordering
