Deadbolt selection
DIMENSIONS
В
C
Deadbolt Specifications
Door Specs 2 1/8" Face Bore
1" Edge Bore
2 3/8" or 2 3/4" Backset
Box Pack:
Latch Face 1" x 2 1/4" RC (Round Corner) SC (Square Corner, optional)
Latch Box Pack: Adjustable 2 3/8" to 2 3/4" RC
RC (Round Corner)
Door Thickness 1 3/8" to 1 3/4"
2" to 2 1/4"
Requires Ext. Kit 07600; 83 Select Single Cylinder Only
Cylinder KW-1 (Standard)
SC-1 (Optional) PARA (Optional)
Keying Box Pack:
KD (Keyed Different) KA3 (Keyed Alike)
Faceplate 1" W x 2 1/4" H
RC (Round Corner)
Strike Box Pack: 1 1/8" x 2 3/4"
RC (Round Corner)
Certified A156.2 Series 4000
ANSI/BHMA Grade 2 BHM

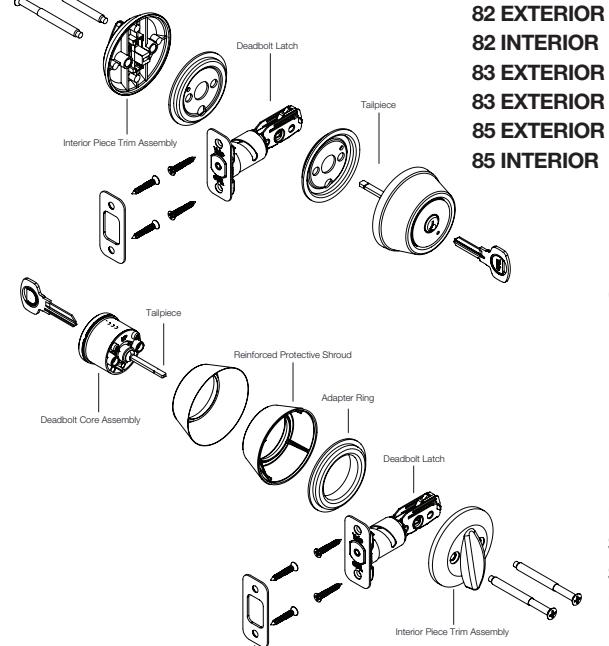

2 19/32" 1 1/8" 2 19/32" 1 9/64" 1 31/32" 1 7/8" 2 1/2" 2 1/2" 1 7/8" 2" 2 1/2" 1" 1 7/8" 2 1/2" 1 7/8" В FUNCTIONS DEADBOLT SINGLE CYLINDER PREMIER 82 SINGLE CYLINDER SELECT 83 DOUBLE CYLINDER SELECT 85
| FLASHship™ | US3 | US5 US10BF | US10BE | US15 | US15A | US26 | US26D | GM | ТВ |
|---|---|---|---|---|---|---|---|---|---|
| SINGLE CYL 82 | • | • | • | • | • | ||||
| SINGLE CYL 83 | • | • | • | • | • | • | • | • | |
| DOUBLE CYL 85 | • | • | • | • | • |
