introduction
New Traditions® from Yale® outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All New Traditions products are built on a steel ANSI/BHMA Grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all New Traditions products feature Quick-Install™, a unique chassis design, which drastically reduces installation time.
Note: New Traditions are not for use with commercial hollow metal doors.
warranty
When used in commercial, institutional or industrial applications, New Traditions locksets carry a three-year mechanical and one-year finish warranty.
ansi/bhma
Certified ANSI/BHMA Grade 3
pre-installed screws
Pre-Started screws makes installation quick and easy.
concealed screws
Provide a clean consistent look.
interior snap on-off knobs and levers
Saves installation time and reduces chance of scratches.
brass cylinder standard
Reduces wear and provides smooth operation.
non-handed levers
Easily field reversible for installation in applications of either hand.
standard case quantities
| Box Pack (SP) | Clear View (CV) | |
|---|---|---|
| Dummy | 12 | 6 |
| Knobs | 24 | 6 |
| Levers | 12 | 6 |
| Deadbolts | 12 | 6 |
| Combo Sets | 12 | 6 |
| Handlesets | 6 | 6 |
| Handlesets - Interior Pack | 6 | N/A |
When ordering, specify the exact number of individual units required. For example, if there are 24 units in a case and 1 case is required, specify 24. See page 21 for How to Order.
| contents |
|---|
|
Knobs .
3-4 |
|
Levers .
5-6 |
|
Deadbolts .
7-8 |
|
Handlesets .
9-10 |
|
Interconnected .
11-12 |
|
Cylinders/Keying .
13-14 |
|
Latchbolts .
15-16 |
|
Strikes .
17 |
|
Accessories .
18-19 |
|
How to Order .
20 |
|
Handing of Doors .
20 |
finishes
|
ANSI/
BHMA Code |
Finish Description |
US
Code |
|---|---|---|
| 605 | Bright Brass | US3 |
| 609 |
Satin Brass, Blackened,
Satin Relieved, Clear Coated |
US5 |
| 613 |
Dark Oxidized Satin
Bronze, Oil Rubbed |
US10B |
| 613e |
Dark Oxidized Satin
Bronze, Permanent |
US10BP |
| 619 |
Satin Nickel Plated, Clear
Coated |
US15 |
| 620 |
Satin Nickel Plated,
Blackened, Satin Relieved, Clear Coated |
US15A |
| 625 | Bright Chrome Plated | US26 |
| 626 | Satin Chrome Plated | US26D |
| Finish Code | Description |
|---|---|
| GM | Gun Metal |
| TB | Textured Black |

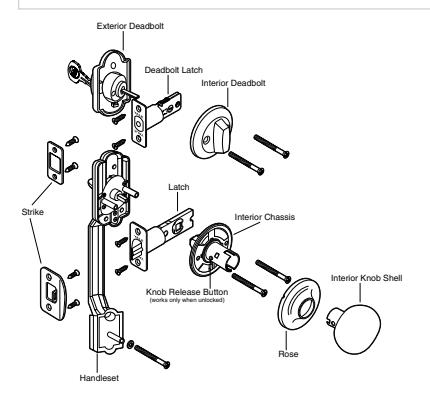

handleset product specifications
Door Specs
2-1/8" Face Bore 1" Edge Bore
5-1/2" O.C.
Box Pack:
Latch Face
1" x 2-1/4" RC (Round Corner)
Clear Pack:
Latch Face
1" x 2-1/4" SC (Square Corner)
Latch
Box Pack:
2-3/8" RC (Round Corner)
Deadbolt:
2-3/8"–2-3/4" ADJ.
RC (Round Corner)
Clear Pack:
Spring Latches
2-3/8" and 2-3/4" SC (Square Corner)
Deadbolt:
2-3/8"–2-3/4" ADJ.
SC (Square Corner)
Door Thickness
1-3/8" to 1-3/4"
2" to 2-1/4" Requires Ext. Kit 07600
Dorado (E)
Cylinder
Brass 5 Pin Cylinder (KW-1 Compatible)
Keying
Box Pack:
KD (Keyed Different)
Clear Pack:
KD (Keyed Different)
Faceplate
1" x 2-1/4"
RC (Round Corner)
Strike
Box Pack:
Spring latch
2-1/4" Full Lip RC (Round Corner)
Deadbolt:
1"x 2-1/4"
RC (Round Corner)
Clear Pack:
Spring latch
2-1/4" Full Lip SC (Square Corner)
Deadbolt:
1"x 2-1/4"
SC (Square Corner)
Hardware Handing
Handlesets are non-handed.Specify right-handed or lefthanded for lever interior only.
Interior Trim
Box Pack and Clear Pack: Cirrus Knob
Note: See pages 13-17 for optional cylinders, latchbolts and strikes.
handleset designs
handleset designs
functions
| 581/681/682/683 | 521/621/622/623 | 541/641/642/643 |
|---|---|---|
|
Dummy: For on-working side of double doors.
Non-functioning deadbolt, knob or lever. |
Single Cylinder: Thumbpiece retracts latch from
exterior side. Knob or lever retracts latch from interior side. Deadbolt latch retracts with key from exterior side, thumbturn retracts deadbolt latch from interior side. |
Double Cylinder: Thumbpiece retracts latch
from exterior side. Knob or lever retracts latch from interior side. Deadbolt latch retracts with key from exterior side and interior side. |

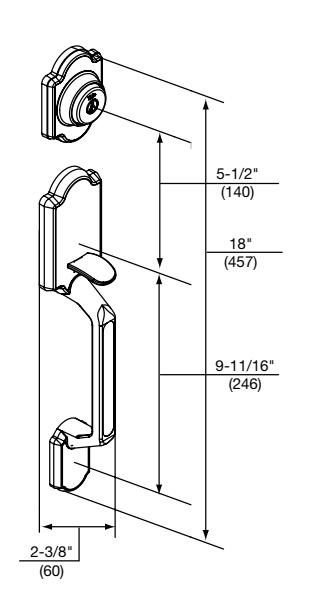

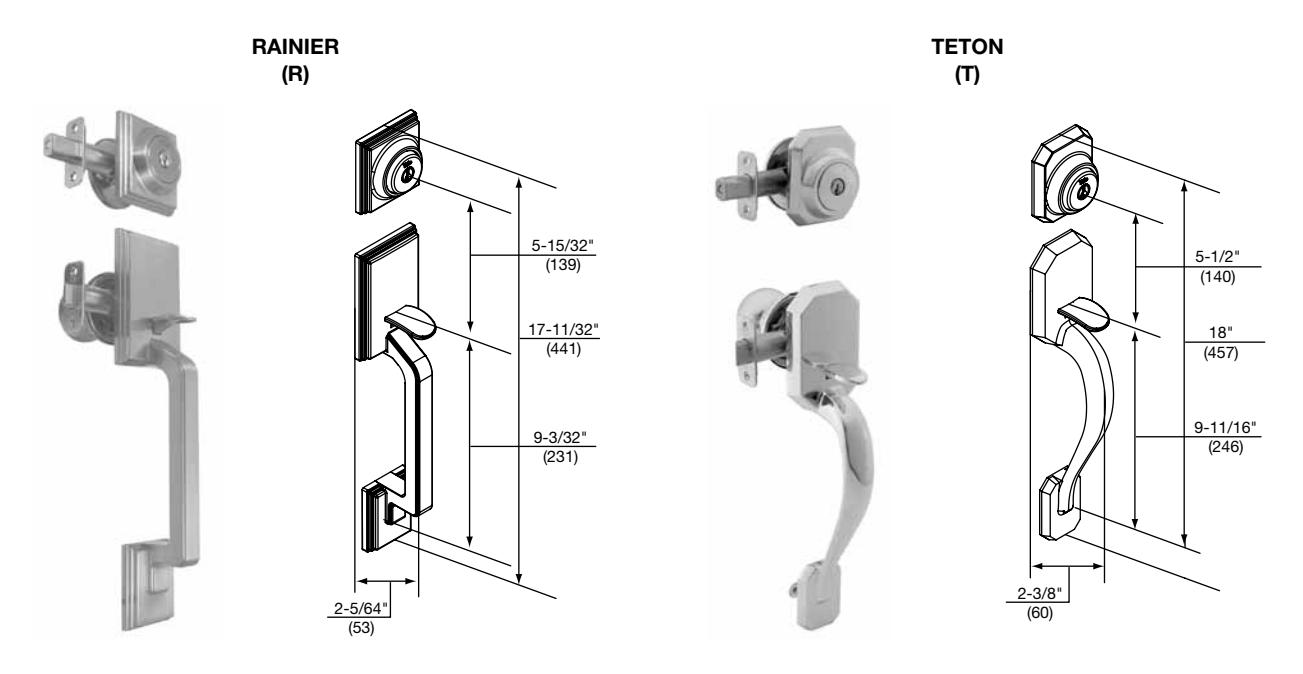

| DIMENSIONS | A | B | C | D |
|---|---|---|---|---|
| El Dorado | 2-3/8" | 5-1/2" | 9-11/16" | 18" |

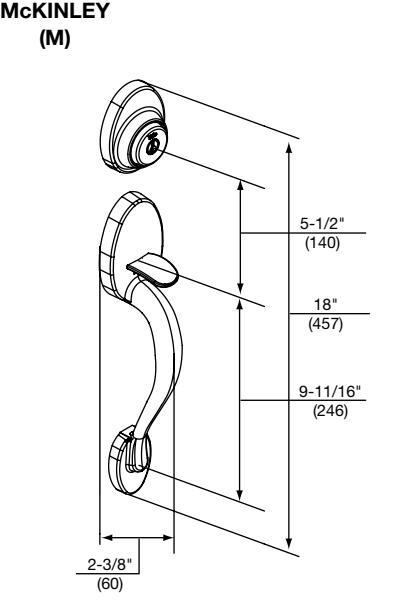

| McKinley | 2-3/8" | 5-1/2" | 9-11/16" | 18" |
| Rainier | 2-3/8" | 5-1/2" | 9-11/16" | 18" |
| Teton | 2-3/8" | 5-1/2" | 9-11/16" | 18" |
cylinders/keying
All cylinders furnished standard 5-pin, keyed different in Yale® KW-1 keyway.
Optional cylinders:
Yale Para keyway 6-pin (specify "Para") Schlage® C keyway 5- or 6-pin (specify "SC-1" and number of pins)
Cylinders available masterkeyed or construction/builder keyed.
| Key Blanks | ||||
|---|---|---|---|---|
| Key Blank Description | Quantity | Model No. | ||
| 5-Pin KW1 Key Blank | 50 per box | 068004 | ||
| 5-Pin KW1 Key - Cut | 50 per box | 068500 | ||
| 5-Pin Schlage® Key Blank | 50 per box | 068008 | ||
| 5-Pin Schlage® Key - cut | 50 per box | 068508 | ||
| Cylinder Options | |||
|---|---|---|---|
|
Schlage®
5-Pin Standard, 6-Pin Must be Specified if Needed |
Model No. | ||
|
5-Pin
Compatible with F Series |
|||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 | 068401 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 03 | 068402 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 | 068405 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 26 | 068406 | ||
|
6-Pin
Compatible with A Series |
|||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 | 068D01 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece,High Stack, Deadbolt, 03 | 068D02 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 | 068D05 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Deadbolt, 26 | 068D06 | ||
| KW1 5-Pin Standard | |||
| 5-Pin | |||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 | 060003 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 03 | 060103 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 | 060006 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 26 | 060106 | ||
| 6-Pin | |||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 | 06D013 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 03 | 06D103 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 | 06D016 | ||
| Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 26 | 06D106 | ||
|
For Residential Product Only
Yale® PARA E1R, Y1 6-Pin Must be Specified if Needed |
||||
|---|---|---|---|---|
| 6-Pin | Model No. | |||
| Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Entry Lever, 03 | 06Y303 | |||
| Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Entry Lever, 26 | 06Y306 | |||
| Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, 83/820 Deadbolt, 03 | 06Y403 | |||
| Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, 83/820 Deadbolt, 26 | 06Y406 | |||
| Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Premier Deadbolt, 03 | 06Y413 | |||
| Brass Cylinder & 2 Brass Keys,Tailpiece, High Stack, Premier Deadbolt, 26 | 06Y416 | |||
keying terminology
All locks will be shipped KD unless otherwise specified.
KD: Keyed Different
KA: Keyed Alike
MK: Master Keyed* (A single master key operates all locks within the system.)
BK: Builder Key* (Builder key operates all locksets within a system. Use of homeowner's key cancels the builder key.)
BMK: Builder Keyed and Master Keyed* (Builder key and master key operates all locksets within a system. Use of tenants key cancels the builder key.)
K-T-P: Keyed To Pass (For apartment vestibules or laundry rooms. All tenant keys will operate.)
GMK: Grand Master Keyed* (More than 1 master key system operated by a single master key.)
BGMK: Builder Keyed and Grand Master Keyed* (Combination of BK and GMK.)
*Builder and/or master keys are sent certified mail to the "Bill To" address, referencing the purchase order number and the original order number. All Master Keyed orders shipped with three (3) master keys at no extra charge. All Builder Keyed orders are shipped with ten (10) builder keys at no extra charge.
latchbolts
interior spring latches
| Model No. | Description | Dimensions | Corner Specs |
|---|---|---|---|
| 01415* | 2-3/8" Spring Latch | 1 x 2-1/4" | Square Corner |
| 01412* | 2-3/8" Spring Latch | 1 x 2-1/4" | Round Corner |
| 01418* | 2-3/8" Spring Latch Drive-In Latch | 1" Dia. | N/A |
| 01408* | 2-3/8" Spring Latch | 7/8" Dia. | N/A |
| 01416* | 2-3/4" Spring Latch | 1 x 2-1/4" | Square Corner |
| 01413* | 2-3/4" Spring Latch | 1 x 2-1/4" | Round Corner |
| 01419* | 2-3/4" Spring Drive-In Latch | 1" Dia. | N/A |
| 01414* | 2-3/8" – 2-3/4" Adj. Spring Latch | 1 x 2-1/4" | Square Corner |
| 01411* | 2-3/8" – 2-3/4" Adj. Spring Latch | 1 x 2-1/4" | Round Corner |
| 01417* | 2-3/8" – 2-3/4" Drive-In Latch | 1" Dia. | N/A |
exterior deadlocking latches
| Model No. | Description | Dimensions | Corner Specs |
|---|---|---|---|
| 01425* | 2-3/8" Deadlocking Latch | 1 x 2-1/4" | Square Corner |
| 01422* | 2-3/8" Deadlocking Latch | 1 x 2-1/4" | Round Corner |
| 01428* | 2-3/8" Deadlocking Drive-In Latch | 1" Dia. | N/A |
| 01426* | 2-3/4" Deadlocking Latch | 1 x 2-1/4" | Square Corner |
| 01423* | 2-3/4" Deadlocking Latch | 1 x 2-1/4" | Round Corner |
| 01429* | 2-3/4" Deadlocking Drive-In Latch | 1" Dia. | N/A |
| 01424* | 2-3/8" – 2-3/4" Adj. Deadlocking Latch | 1 x 2-1/4" | Square Corner |
| 01421* | 2-3/8" – 2-3/4" Adj. Deadlocking Latch | 1 x 2-1/4" | Round Corner |
| 01427* |
2-3/8" – 2-3/4" Adj. Deadlocking
Drive-In Latch |
1" Dia. | N/A |
* Specify finish when ordering
latchbolts
800 series deadbolt latches
| Model No. | Description | Dimensions | Corner Specs |
|---|---|---|---|
| 01445* | 2-3/8" Deadlbolt Latch | 1 x 2-1/4" | Square Corner |
| 01442* | 2-3/8" Deadlbolt Latch | 1 x 2-1/4" | Round Corner |
| 01448* | 2-3/8" Deadbolt Drive-In Latch | 1" Dia. | Round Face |
| 01446* | 2-3/4" Deadbolt Latch | 1 x 2-1/4" | Square Corner |
| 01443* | 2-3/4" Deadbolt Latch | 1 x 2-1/4" | Round Corner |
| 01449* | 2-3/4" Deadbolt Drive-In Latch | 1" Dia. | Round Face |
| 01444* | 2-3/8" – 2-3/4" Adj. Deadbolt Latch | 1 x 2-1/4" | Square Corner |
| 01441* | 2-3/8" – 2-3/4" Adj. Deadbolt Latch | 1 x 2-1/4" | Round Corner |
| 01447* | 2-3/8" – 2-3/4" Adj. Deadbolt Drive-In Latch | 1" Dia. | Round Face |
* Specify finish when ordering
handleset latches – interior split-hub spring latches
| Model No. | Description | Dimensions | Corner Specs |
|---|---|---|---|
| 01804* | 2-3/8" Spring Latch | 1 x 2-1/4" | Square Corner |
| 01802* | 2-3/8" Spring Latch | 1 x 2-1/4" | Round Corner |
| 01803* | 2-3/8" Spring Drive-In Latch | 1" Dia. | N/A |
| 01808* | 2-3/4" Spring Latch | N/A | Square Corner |
| 01806* | 2-3/4" Spring Latch | 1 x 2-1/4" | Round Corner |
| 01807* | 2-3/4" Spring Drive-In Latch | 1" Dia. | N/A |
* Specify finish when ordering
strikes
lockset strikes
| Model No. | Item | Dimension | Corner Specs |
|---|---|---|---|
| 02001* | Standard Full Lip Strike/SC | 1-3/4" x 2-1/4" | Square Corner |
| 02000* | Standard Full Lip Strike/RC | 1-3/4" x 2-1/4" | Round Corner |
| 02020* | T-Strike | 1-1/8" x 2-3/4" | Square Corner |
| 02030* | ANSI 4-7/8" | 1-1/4" x 4-7/8" | Square Corner |
* Specify finish when ordering
ANSI 4-7/8" 02030*

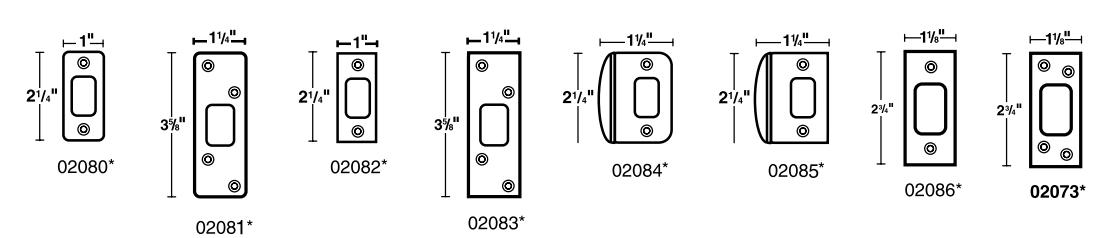

deadbolt strikes
| Model No. | Item | Corner Specs |
|---|---|---|
| 02082* | Standard Deadbolt Strike/SC | Square Corner |
| 02080* | Standard Deadbolt Strike/RC | Round Corner |
| 02081* | Security Strike 3-5/8" | Round Corner |
| 02083* | Security Strike 3-5/8" | Square Corner |
| 02091* | Full Lip Security Strike | Round Corner |
| 02085* | Full Lip Deadbolt Strike | Square Corner |
| 02084* | Full Lip Deadbolt Strike | Round Corner |
| 02086* | Universal Deadbolt Strike | Square Corner |
| 02071* | Canadian Deadbolt Strike | Round Corner |
| 02073* | Canadian Deadbolt Strike | Square Corner |
| 026002 | White Plastic Dust Box 1" x 2-3/4" Deadbolt (For Universal Strike) |
* Specify finish when ordering
