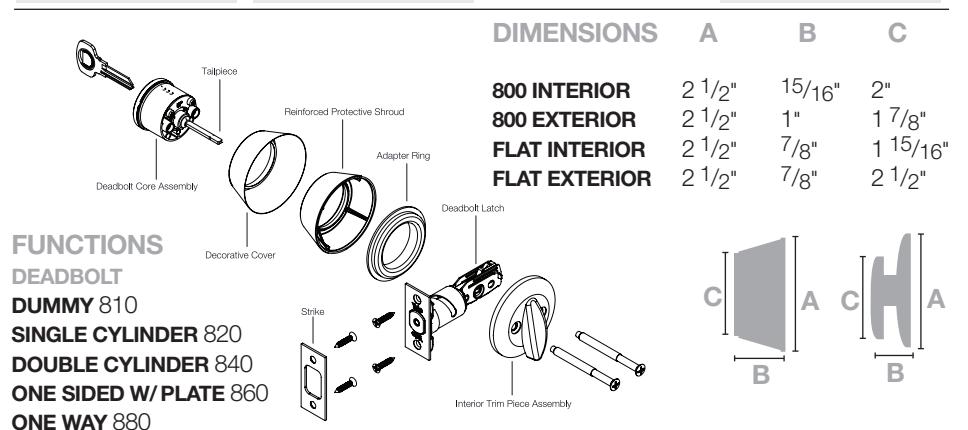

Deadbolt Selection

820 Single Cylinder

840 Double Cylinder

Flat Round

Deadbolt Specifications

Door Specs 2 1/8" Face Bore

1" Edge Bore

2 3/8" or 2 3/4" Backset

Box Pack:

Latch Face 1" x 2 1/4"

RC (Round Corner) SC (Square Corner, optional)

Latch Box Pack: Adjustable 2 3/8" or 2 3/4" RC

RC (Round Corner)

1 3/8" to 1 3/4" Door Thickness

Cylinder 5 Pin Cylinder

(KW-1 Compatible) SC-1, PARA optional

Box Pack: Keying

KD (Keyed Different)

KA3 (Keyed Alike)

Clear Pack: KA3 (Keyed Alike in sets of 3)

1" W x 2 1/4" H Faceplate

RC (Round Corner)

Strike Box Pack: 1 x 2 1/4"

RC (Round Corner)

Certified A156.5, Grade 3

ANSI/BHMA

Flat Square One Sided with Plate One Way

QuickShip 1M US3 US5 US10BP US10BE US15 US15A US26 US26D GM BSP
DUMMY
SINGLE CYL
DOUBLE CYL
ONE SIDED/ PLATE
ONE WAY
FLAT ROUND
FLAT SQUARE

Yale Designer Finishes
