ASSA ABLOY ACCENTRA RL Series Tubular Locks 2-3, 4 and 2-3, 8 Backset 1 and 1-1, 8 Wide Flat Front Wood Door …_7150-0101

Open the original PDF document

View PDF

Notes:

  • 1. When 4-7/8" (123.8) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
  • 2. When T- Strike is specified, refer to No. 371 Strike, Template 7102-0005.
  • 3. Dimensions marked with * have tolerances of +1/32, -0.
  • 4. All dimensions given in inches (mm).

RL SERIES Locks
Backset Latch No. Front Dim. A
2-3/8
(60) 		RLP38 1" (25)
2-3/4
(70) 		RLP34 1-1/8" (29)

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

RL Series Tubular Locks

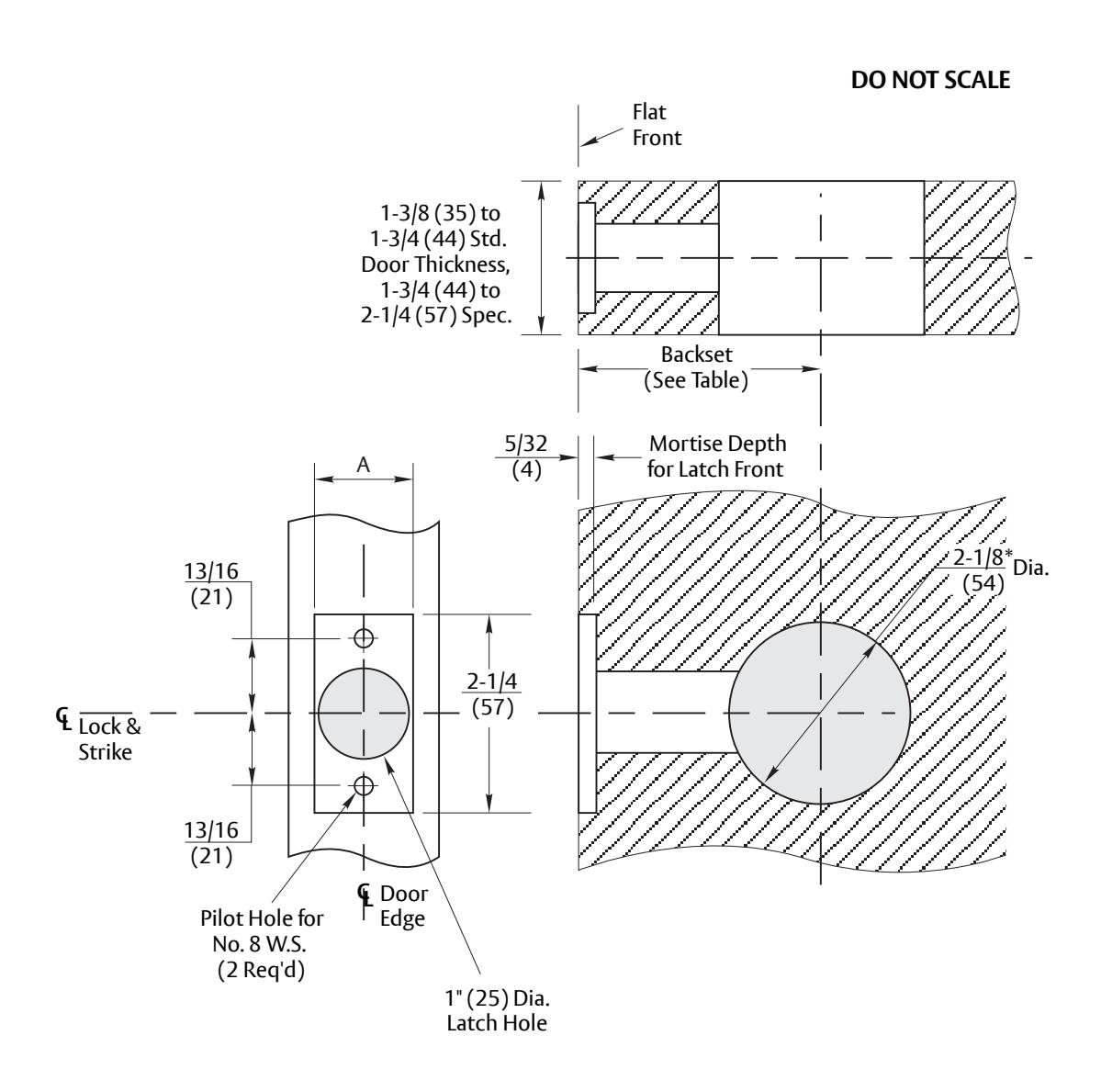

1" and 1-1/8" Wide Flat Front Wood Door Preparation (See ANSI/BHMA A156.115) 2-3/4" and 2-3/8" Backset

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7150-0101 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 12/22 12-23
